1 - Get Started

Pigsty uses a scalable architecture design, suitable for both large-scale production environments and single-node development/demo environments. This guide focuses on the latter.

If you intend to learn about Pigsty, you can start with the Quick Start single-node deployment. A Linux virtual machine with 1C/2G is sufficient to run Pigsty.

You can use a Linux MiniPC, free/discounted virtual machines provided by cloud providers, Windows WSL, or create a virtual machine on your own laptop for Pigsty deployment. Pigsty provides out-of-the-box Vagrant templates and OpenTofu templates to help you provision Linux VMs with one click locally or in the cloud.

The single-node version of Pigsty includes all core features: 575 PG extensions, self-contained Grafana/Victoria monitoring, IaC provisioning capabilities, and local PITR point-in-time recovery. If you have external object storage (for PostgreSQL PITR backup), then for scenarios like demos, personal websites, and small services, even a single-node environment can provide a certain degree of data persistence guarantee. However, single-node cannot achieve High Availability—automatic failover requires at least 3 nodes.

If you want to install Pigsty in an environment without internet connection, please refer to the Offline Install mode. If you only need the PostgreSQL database itself, please refer to the Slim Install mode. If you are ready to start serious multi-node production deployment, please refer to the Deployment Guide.

Quick Start

Prepare a node with compatible Linux system, and execute as an admin user with passwordless ssh and sudo privileges:

curl -fsSL https://repo.pigsty.io/get | bash  # Install Pigsty and dependencies
cd ~/pigsty; ./configure -g                   # Generate config (with 1-node template, -g generates random passwords)
./deploy.yml                                  # Execute deployment playbook

Yes, it’s that simple. You can use pre-configured templates to bring up Pigsty with one click without understanding any details.

Next, you can explore the Graphical User Interface, access PostgreSQL database services; or perform configuration customization and execute playbooks to deploy more clusters.

1.1 - Single-Node Installation

This is the Pigsty single-node install guide Single Node. For multi-node HA production deployment, refer to the Deployment docs.

Pigsty single-node installation consists of three steps: Install, Configure, and Deploy.

Summary

Prepare a node with compatible OS, and run as an admin user with nopass ssh and sudo:

Choose a Pigsty download mirror:

curl -fsSL https://repo.pigsty.io/get | bash

curl -fsSL https://repo.pigsty.cc/get | bash

This command runs the install script, downloads and extracts Pigsty source to your home directory and installs dependencies. Then complete Configure and Deploy:

cd ~/pigsty

./configure -g

./deploy.yml

After installation, access the Web UI via IP/domain + port 80/443 through Nginx, and access the default PostgreSQL service via port 5432.

The complete process takes 3–10 minutes depending on server specs/network. Offline installation speeds this up significantly; for monitoring-free setups, use Slim Install for even faster deployment.

Video Example: Online Single-Node Installation (Debian 13, x86_64)

demo/install-hero.cast — /demo/install-hero.cast

Prepare

Installing Pigsty involves some preparation work. Here’s a checklist.

For single-node installations, many constraints can be relaxed—typically you only need to know your IP address. If you don’t have a static IP, use 127.0.0.1.

Typically, you only need to focus on your local IP address—as an exception, for single-node deployment, use 127.0.0.1 if no static IP available.

Install

Use the following commands to auto-install Pigsty source to ~/pigsty (recommended). Deployment dependencies (Ansible) are installed automatically.

Choose a Pigsty download mirror:

curl -fsSL https://repo.pigsty.io/get | bash            # Install current default version
curl -fsSL https://repo.pigsty.io/get | bash -s v4.5.0  # Pin current public stable release

curl -fsSL https://repo.pigsty.cc/get | bash            # Install current default version
curl -fsSL https://repo.pigsty.cc/get | bash -s v4.5.0  # Pin current public stable release

If you prefer not to run a remote script, you can manually download or clone the source. When using git, always checkout a specific version before use.

git clone https://github.com/pgsty/pigsty; cd pigsty;
git checkout v4.5.0;  # Always checkout a released tag when using git

For manual download/clone installations, run the bootstrap script to install Ansible and other dependencies. You can also install them yourself.

./bootstrap           # Install ansible for subsequent deployment

Configure

In Pigsty, deployment blueprints are defined by the inventory, the pigsty.yml configuration file. You can customize through declarative configuration.

Pigsty provides the configure script as an optional configuration wizard, which generates an inventory with good defaults based on your environment and input:

./configure -g                # Use config wizard to generate config with random passwords

The generated config file is at ~/pigsty/pigsty.yml by default. Review and customize as needed before installation.

Many configuration templates are available for reference. You can skip the wizard and directly edit pigsty.yml:

./configure                  # Default template, install PG 18 with essential extensions
./configure -v 16            # Use PG 16 instead of default PG 18
./configure -c rich          # Create local repo, download all extensions, install major ones
./configure -c slim          # Minimal install template, use with ./slim.yml playbook
./configure -c app/supa      # Use app/supa self-hosted Supabase template
./configure -c ivory         # Use IvorySQL kernel instead of native PG
./configure -i 10.11.12.13   # Explicitly specify primary IP address
./configure -r china         # Use China mirrors instead of default repos
./configure -c ha/full -s    # Use 4-node sandbox template, skip IP replacement/detection

The output below is from the current main branch (v5.0.0-preview). If you install another version, the first line reports that version.

vagrant@meta:~/pigsty$ ./configure

configure pigsty v4.5.0 begin
[ OK ] region  = default
[ OK ] kernel  = Linux
[ OK ] machine = x86_64
[ OK ] package = rpm,dnf
[ OK ] vendor  = rocky (Rocky Linux)
[ OK ] version = 9 (9.6)
[ OK ] sudo = vagrant ok
[ OK ] ssh = [email protected] ok
[WARN] Multiple IP address candidates found:
    (1) 192.168.121.24	inet 192.168.121.24/24 brd 192.168.121.255 scope global dynamic noprefixroute eth0
    (2) 10.10.10.12	    inet 10.10.10.12/24 brd 10.10.10.255 scope global noprefixroute eth1
[ IN ] INPUT primary_ip address (of current meta node, e.g 10.10.10.10):
=> 10.10.10.12    # <------- INPUT YOUR PRIMARY IPV4 ADDRESS HERE!
[ OK ] primary_ip = 10.10.10.12 (from input)
[ OK ] admin = [email protected] ok
[ OK ] mode = meta (el9)
[ OK ] locale  = C.UTF-8
[ OK ] configure pigsty done
proceed with ./deploy.yml

If your machine has multiple IPs bound, use -i|--ip <ipaddr> to explicitly specify the primary IP, or provide it in the interactive prompt. The script replaces the placeholder 10.10.10.10 with your node’s primary IPv4 address. Choose a static IP; do not use public IPs.

Deploy

Pigsty’s deploy.yml playbook applies the blueprint from Configure to target nodes.

./deploy.yml     # Deploy the defined modules in the core path at once

......

TASK [pgsql : pgsql init done] *************************************************
ok: [10.10.10.11] => {
    "msg": "postgres://10.10.10.11/postgres | meta  | dbuser_meta dbuser_view "
}
......

TASK [pg_monitor : load grafana datasource meta] *******************************
changed: [10.10.10.11]

PLAY RECAP *********************************************************************
10.10.10.11                : ok=302  changed=232  unreachable=0    failed=0    skipped=65   rescued=0    ignored=1
localhost                  : ok=6    changed=3    unreachable=0    failed=0    skipped=1    rescued=0    ignored=0

Interface

After single-node installation, you typically have four modules installed on the current node: PGSQL, INFRA, NODE, and ETCD.

The INFRA module provides a graphical management interface, accessible via Nginx on ports 80/443.

The PGSQL module provides a PostgreSQL database server, listening on 5432, also accessible via Pgbouncer/HAProxy proxies.

More

Use the current node as a base to deploy and monitor more clusters: add cluster definitions to the inventory and run:

bin/node-add   pg-test      # Add the 3 nodes of cluster pg-test to Pigsty management
bin/pgsql-add  pg-test      # Initialize a 3-node pg-test HA PG cluster
bin/redis-add  redis-ms     # Initialize Redis cluster: redis-ms

Most modules require the NODE module installed first. See available modules for details:

PGSQL, INFRA, NODE, ETCD, MINIO, REDIS, DOCKER……

1.2 - Docker Deployment

Pigsty is designed for native Linux, but can also run in Linux containers with systemd. If you don’t have native Linux (e.g., macOS or Windows), use Docker to spin up a local single-node Pigsty for testing.

Quick Start

Enter the docker/ dir in Pigsty source and launch with one command:

cd ~/pigsty/docker
make launch          # Start container + generate config + deploy

After deployment, access services:

make launch runs ./configure -g internally to generate random passwords. You can check them with:

cd ~/pigsty/docker
make pass | grep -E 'grafana_admin_password|pg_admin_password'

Prepare

Docker deployment requires:

Ensure default host ports (2222/8080/8443/5432) are available, or edit .env first.


Pigsty provides an out-of-the-box Docker image on Docker Hub.

• Supports both amd64 (x86_64) and arm64 (Apple Silicon, AWS Graviton)
• Image tags follow Pigsty versions. The Docker configuration on the current main branch and the site baseline both use v5.0.0-preview; verify that the matching remote image exists before pulling or deploying.
• Pre-configured with docker template, ready to run ./deploy.yml

Built on Debian 13 (Trixie), pre-installed with pig CLI and Ansible, Pigsty source already initialized.

Launch

Pigsty provides out-of-the-box Docker support in the docker/ source directory.

Simplest way is make launch, which auto-completes: start container, generate config, and deploy:

cd ~/pigsty/docker
make launch          # One-liner: up + config + deploy

Or step by step for inspection at each stage:

cd ~/pigsty/docker
make up              # Start container
make exec            # Enter container
./configure -c docker -g --ip 127.0.0.1  # Generate config (optional, pre-configured)
./deploy.yml         # Execute deployment

To build locally instead of pulling from Docker Hub:

cd ~/pigsty/docker
make build           # Build image locally
make launch          # Start container + generate config + deploy

Config

Customize image version and port mappings via .env:

PIGSTY_VERSION=v4.5.0         # Current main source default; verify the remote tag before pulling
PIGSTY_SSH_PORT=2222          # SSH port
PIGSTY_HTTP_PORT=8080         # Nginx HTTP port
PIGSTY_HTTPS_PORT=8443        # Nginx HTTPS port
PIGSTY_PG_PORT=5432           # PostgreSQL port

Port Mapping:

Override via env vars if defaults are occupied:

PIGSTY_HTTP_PORT=8888 docker compose up -d

Commands

Pigsty Docker provides Makefile commands for container and image management.

Docker Compose

Recommended way to run:

make up           # Start container
make down         # Stop and remove container
make start        # Start stopped container
make stop         # Stop container
make restart      # Restart container
make pull         # Pull latest image
make config       # Run ./configure in container
make deploy       # Run ./deploy.yml in container
make launch       # One-liner: up + config + deploy

Container Access

make exec         # Enter container bash
make ssh          # SSH into container
make log          # View container logs
make status       # View systemd status
make ps           # View process list
make conf         # View config file
make pass         # View passwords in config

Image Build

make build        # Build image locally
make buildnc      # Build without cache
make push         # Build and push multi-arch image

Image Management

make save         # Export image to pigsty-<version>-<arch>.tgz
make load         # Import image from tgz file
make rmi          # Remove current version's pigsty image

Cleanup

make clean        # Stop and remove container
make purge        # Stop and remove the container, then directly delete ./data in the current directory

Manual Run

If you prefer docker run over Docker Compose:

mkdir -p ./data
docker run -d --privileged --name pigsty \
  -p 2222:22 -p 8080:80 -p 5432:5432 \
  -v ./data:/data \
  pgsty/pigsty:<version>

docker exec -it pigsty ./configure -c docker -g --ip 127.0.0.1
docker exec -it pigsty ./deploy.yml

Or use Makefile’s make run:

make run          # Start with docker run
make exec         # Enter container
make clean        # Stop and remove container
make purge        # Remove container and directly delete ./data in the current directory

How It Works

Pigsty Docker image is based on Debian 13 (Trixie) with systemd as init. Service management inside container stays consistent with native Linux via systemctl.

Key features:

• systemd support: Full systemd for proper service management
• SSH access: Pre-configured SSH, root password is pigsty
• Privileged mode: Requires --privileged for systemd
• Data persistence: Via /data volume mount
• Pre-installed: pig CLI + Ansible, Pigsty source initialized

Image build executes these init steps:

# Install pig CLI
RUN echo "deb [trusted=yes] https://repo.pigsty.io/apt/infra/ generic main" \
    > /etc/apt/sources.list.d/pigsty.list \
    && apt-get update && apt-get install -y pig

# Initialize Pigsty source and install Ansible
RUN pig sty init -v ${PIGSTY_VERSION} \
    && pig sty boot \
    && pig sty conf -c docker --ip 127.0.0.1

Running ./configure with -c docker applies the Docker-optimized config template:

• Uses 127.0.0.1 as default IP
• Tuned for container environment

FAQ

Container won’t start

Ensure Docker is properly installed with sufficient resources. On Docker Desktop, allocate at least 2GB RAM. Check for port conflicts on 2222, 8080, 8443, 5432.

Can’t access services

Web Portal and PostgreSQL only available after deployment. Ensure ./deploy.yml finished successfully. Use make status to check service status.

Port conflicts

Override via .env or env vars:

PIGSTY_HTTP_PORT=8888 PIGSTY_PG_PORT=5433 docker compose up -d

Data persistence

Container data mounted to ./data. To wipe and start fresh:

make purge        # Remove container and directly delete ./data in the current directory (no countdown)

macOS performance

On macOS with Docker Desktop, performance is worse than native Linux due to virtualization overhead. Expected—Docker deployment is for dev/testing. For production, use native Linux installation.

More

• Docker Hub: https://hub.docker.com/r/pgsty/pigsty
• Source Directory: https://github.com/pgsty/pigsty/tree/main/docker
• Quick Start: Native Linux Installation
• Offline Installation: Offline
• Production Deployment: Deployment Guide

1.3 - Web Interface

After single-node installation, you’ll have the INFRA module installed on the current node, which includes an out-of-the-box Nginx web server.

The default server configuration provides a WebUI graphical interface for displaying monitoring dashboards and unified proxy access to other component web interfaces.

Access

You can access this graphical interface by entering the deployment node’s IP address in your browser. By default, Nginx serves on standard ports 80/443.

Monitoring

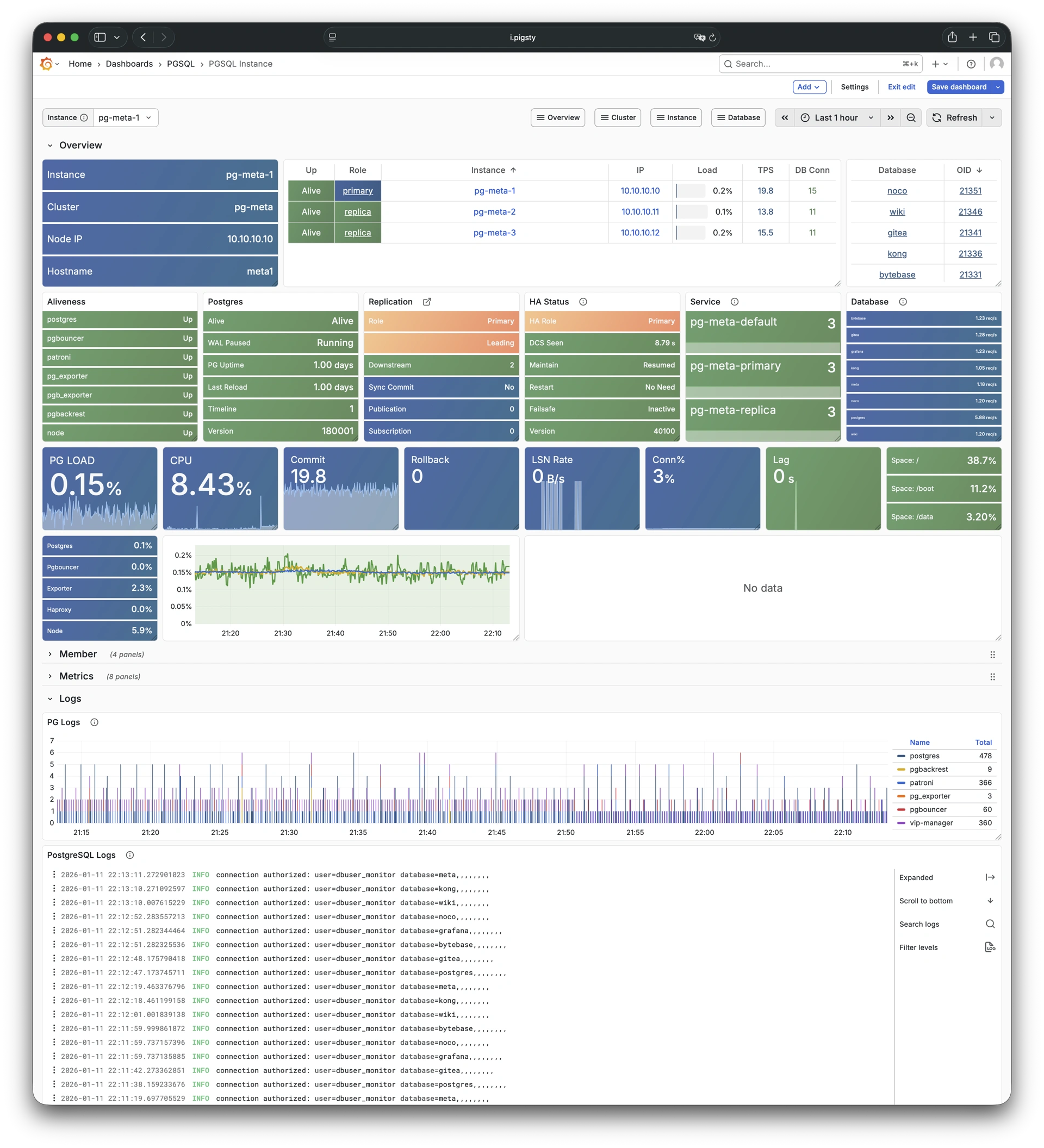

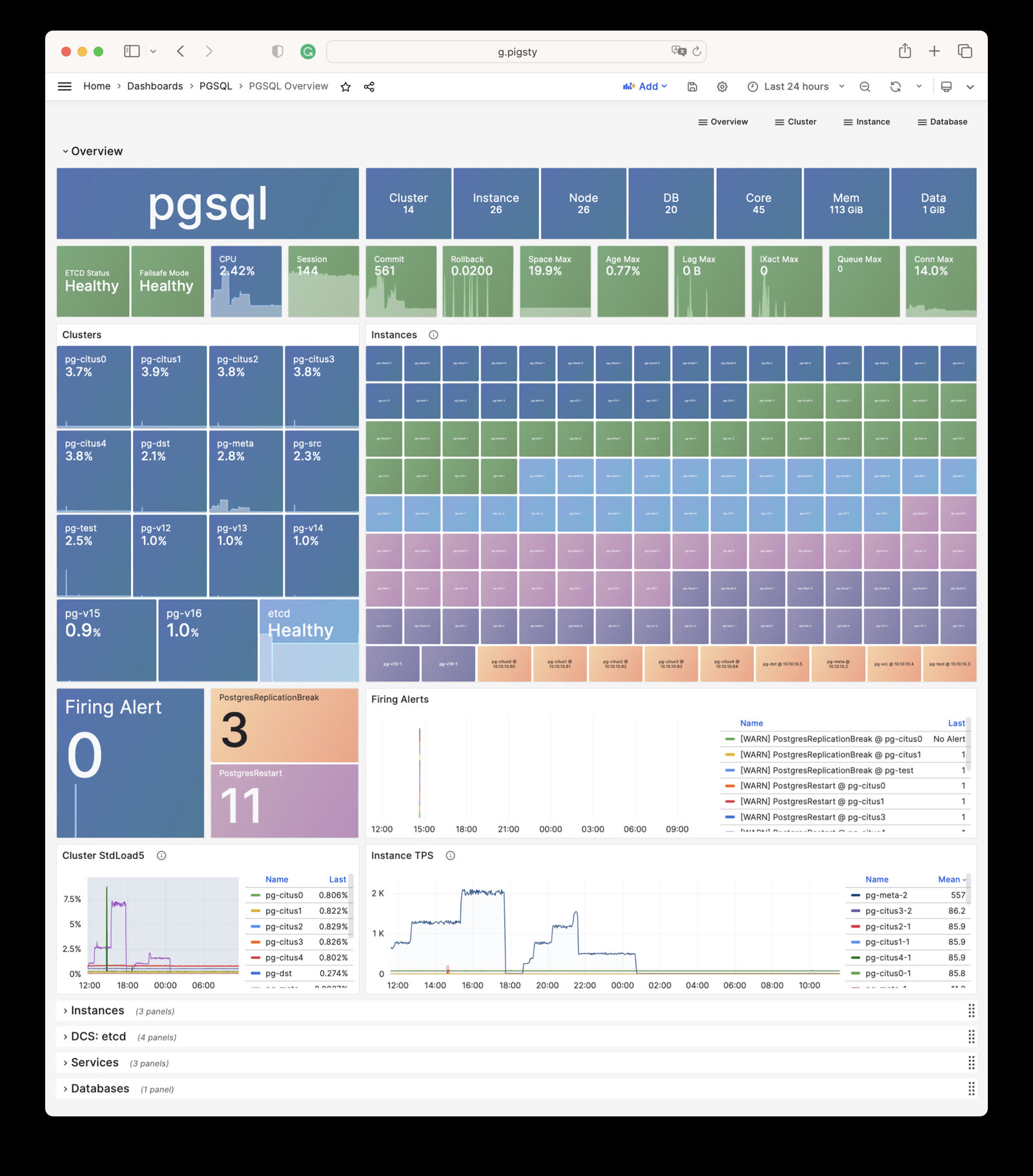

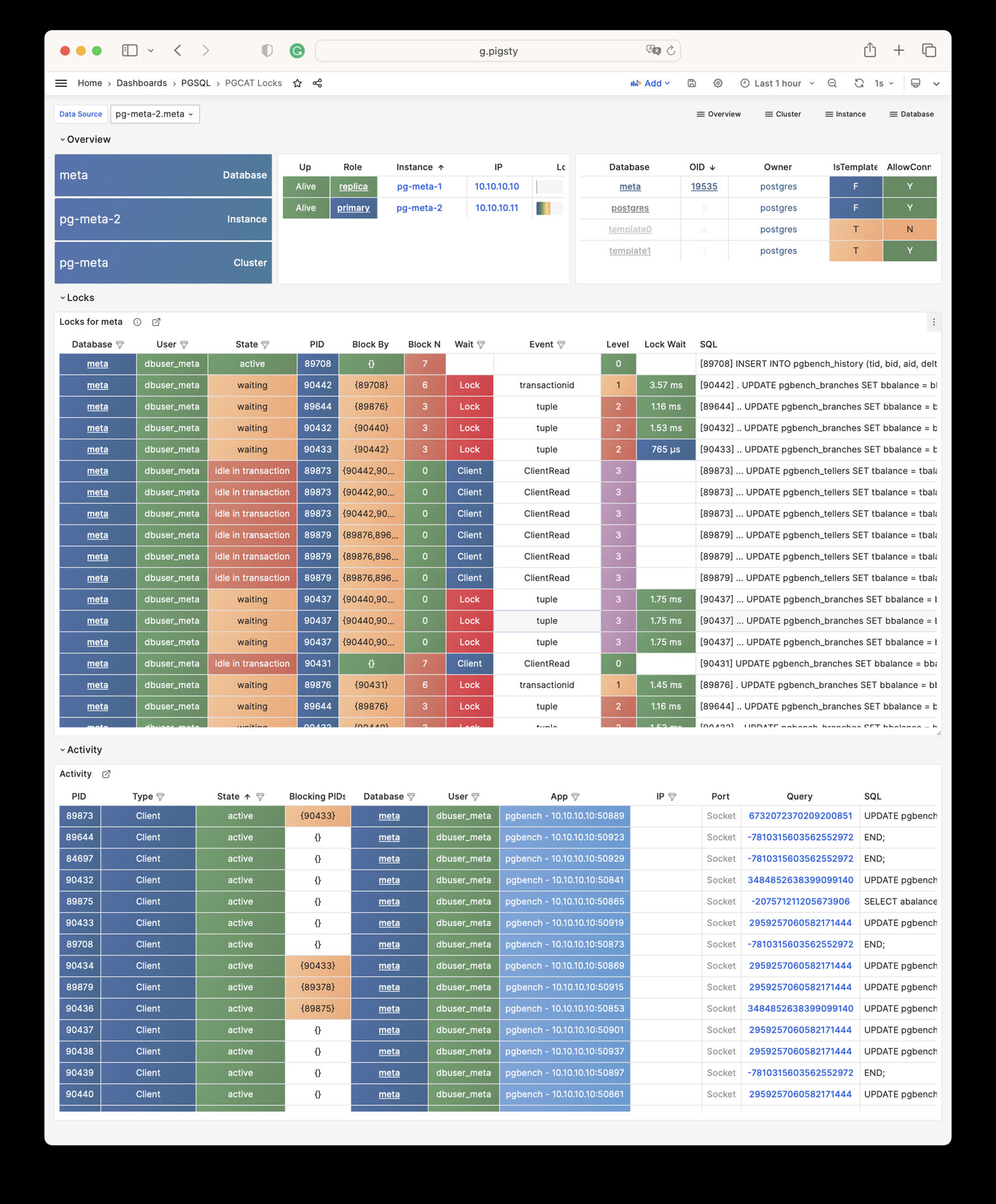

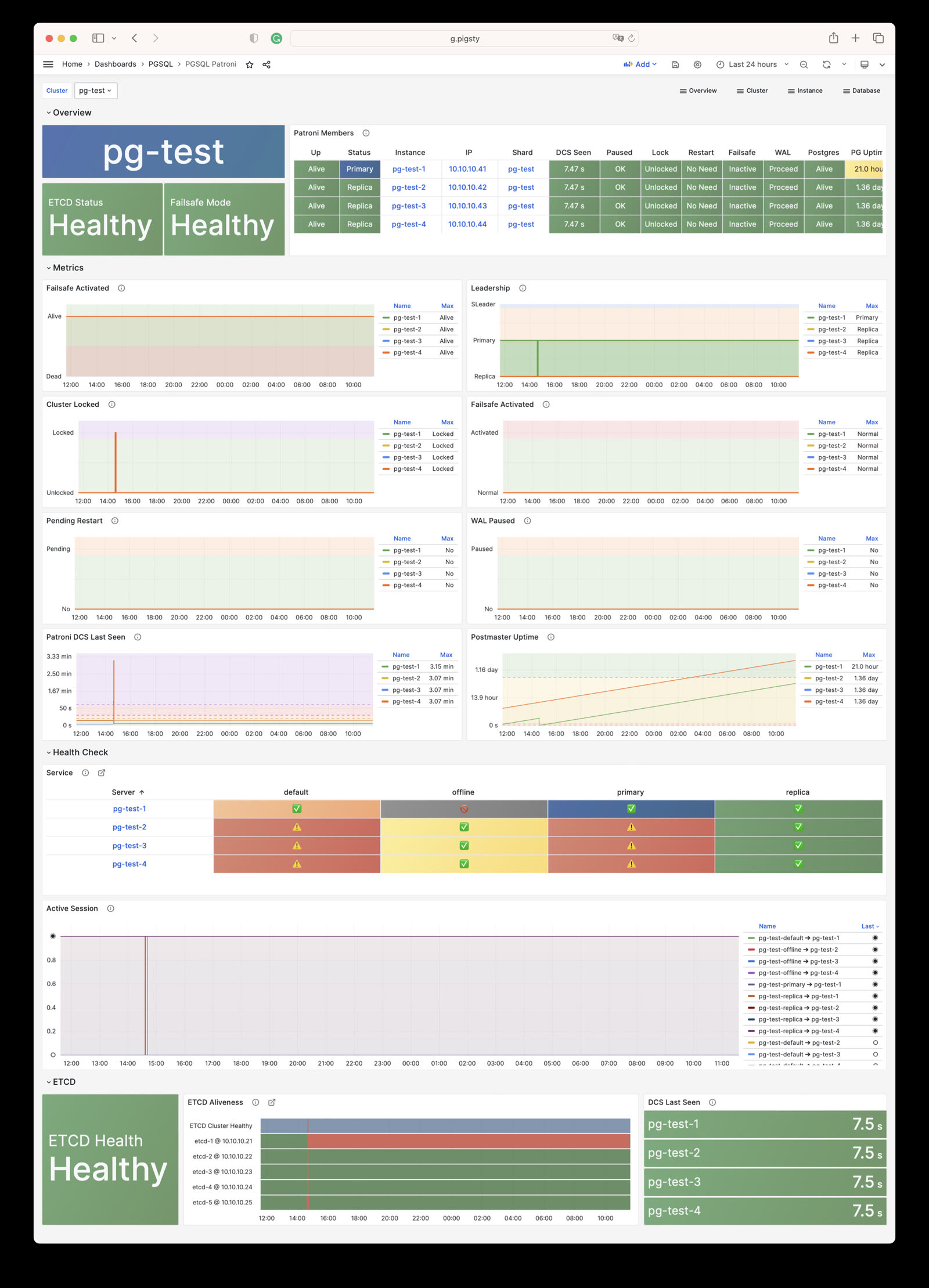

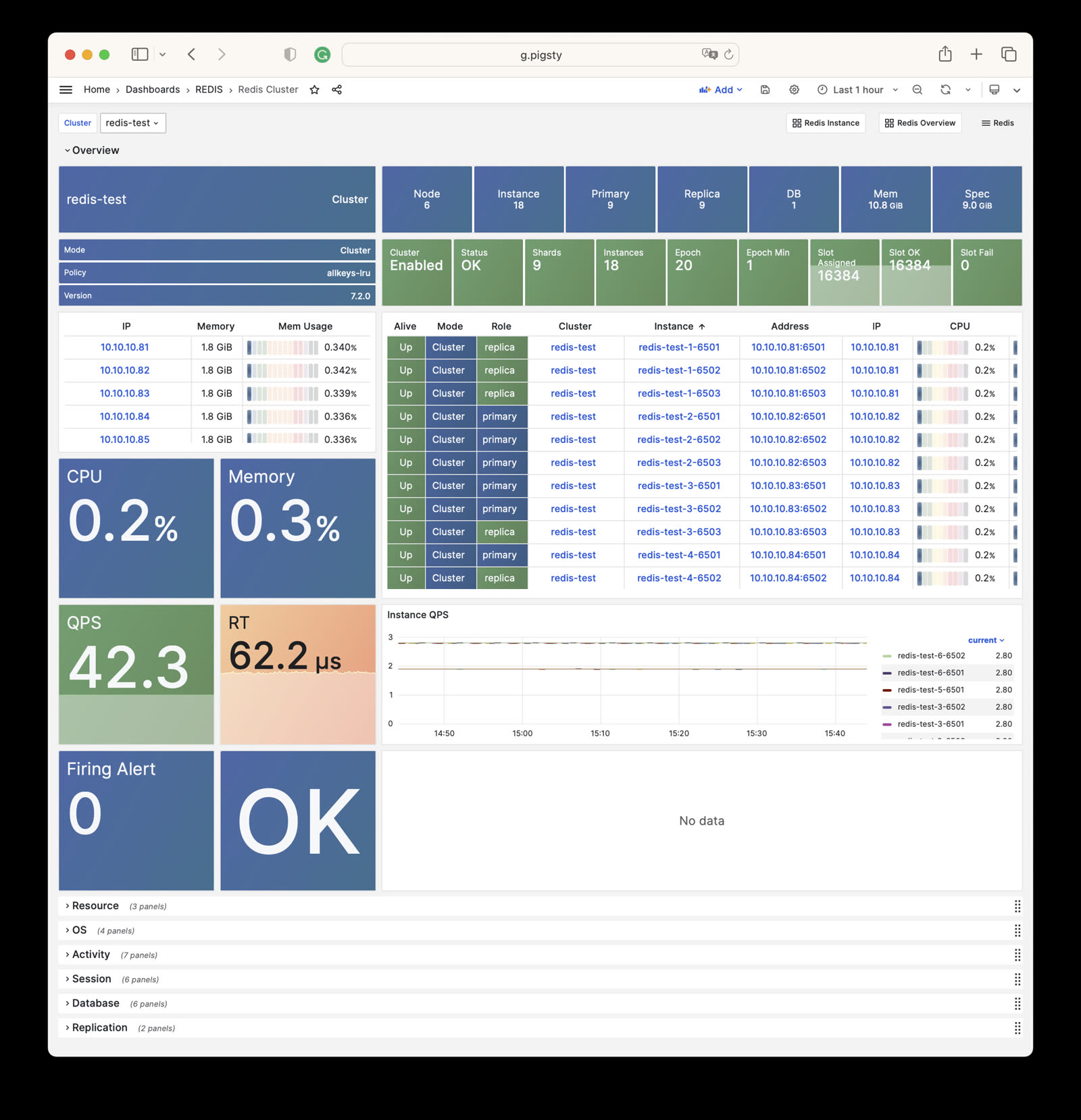

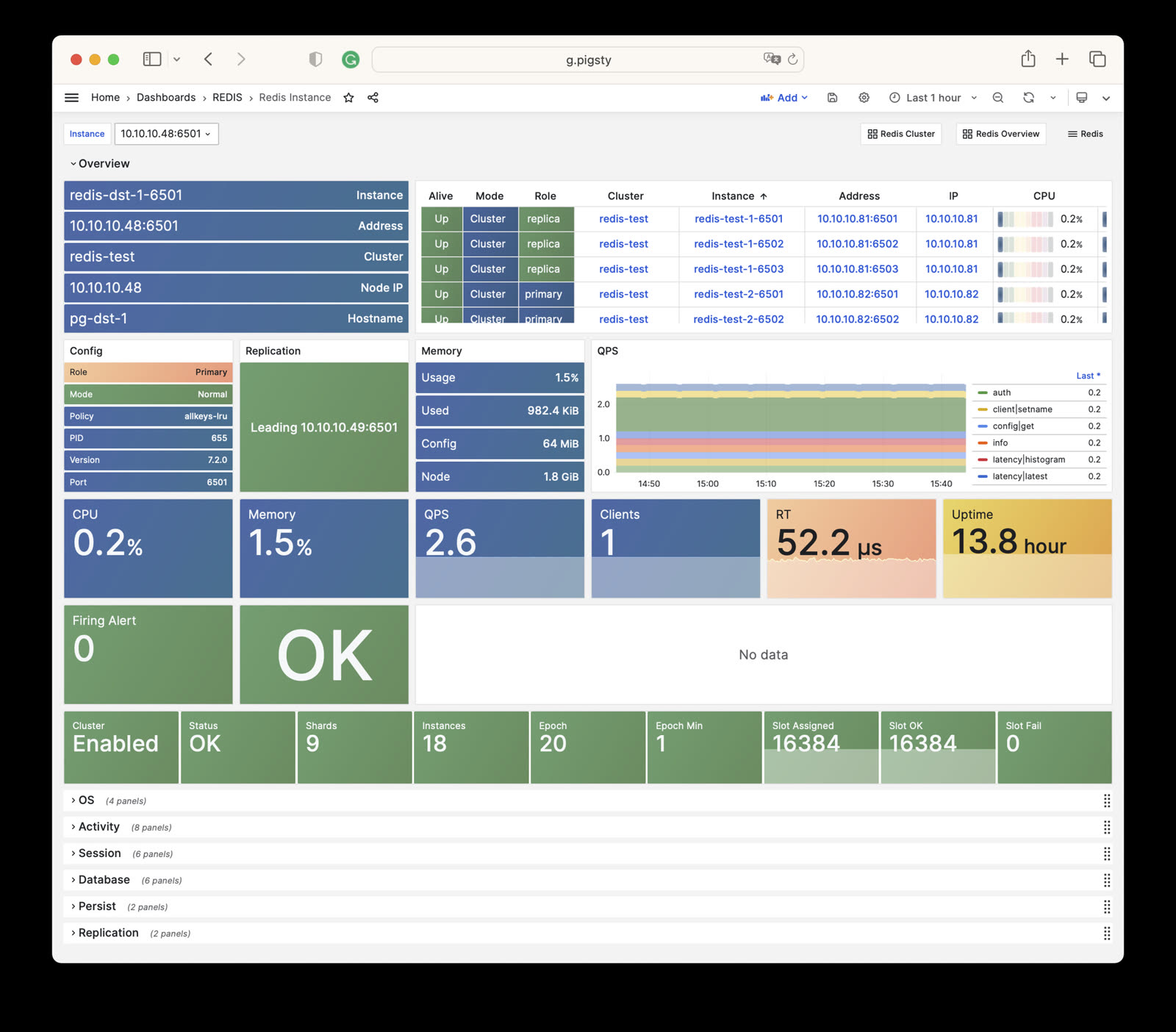

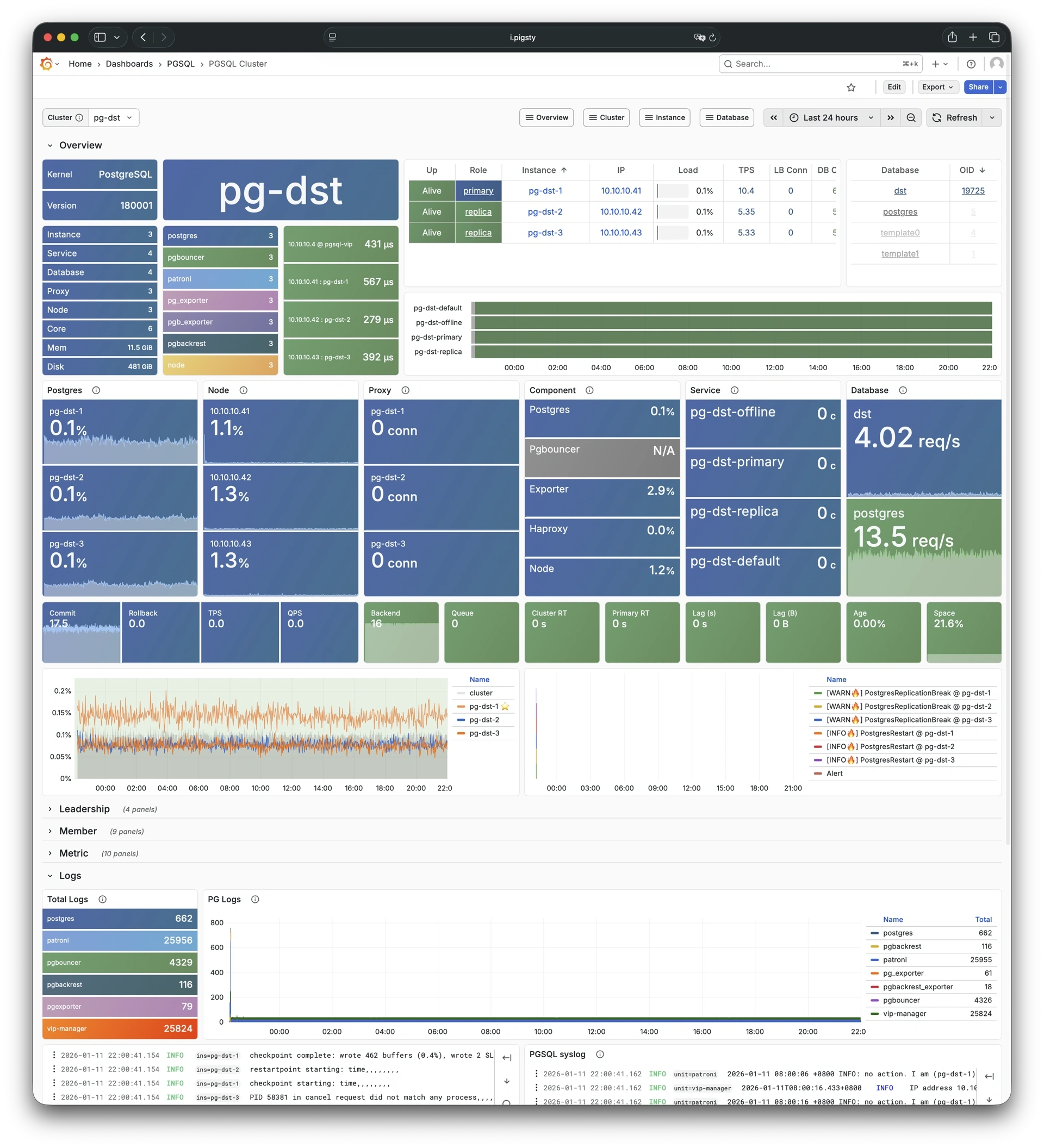

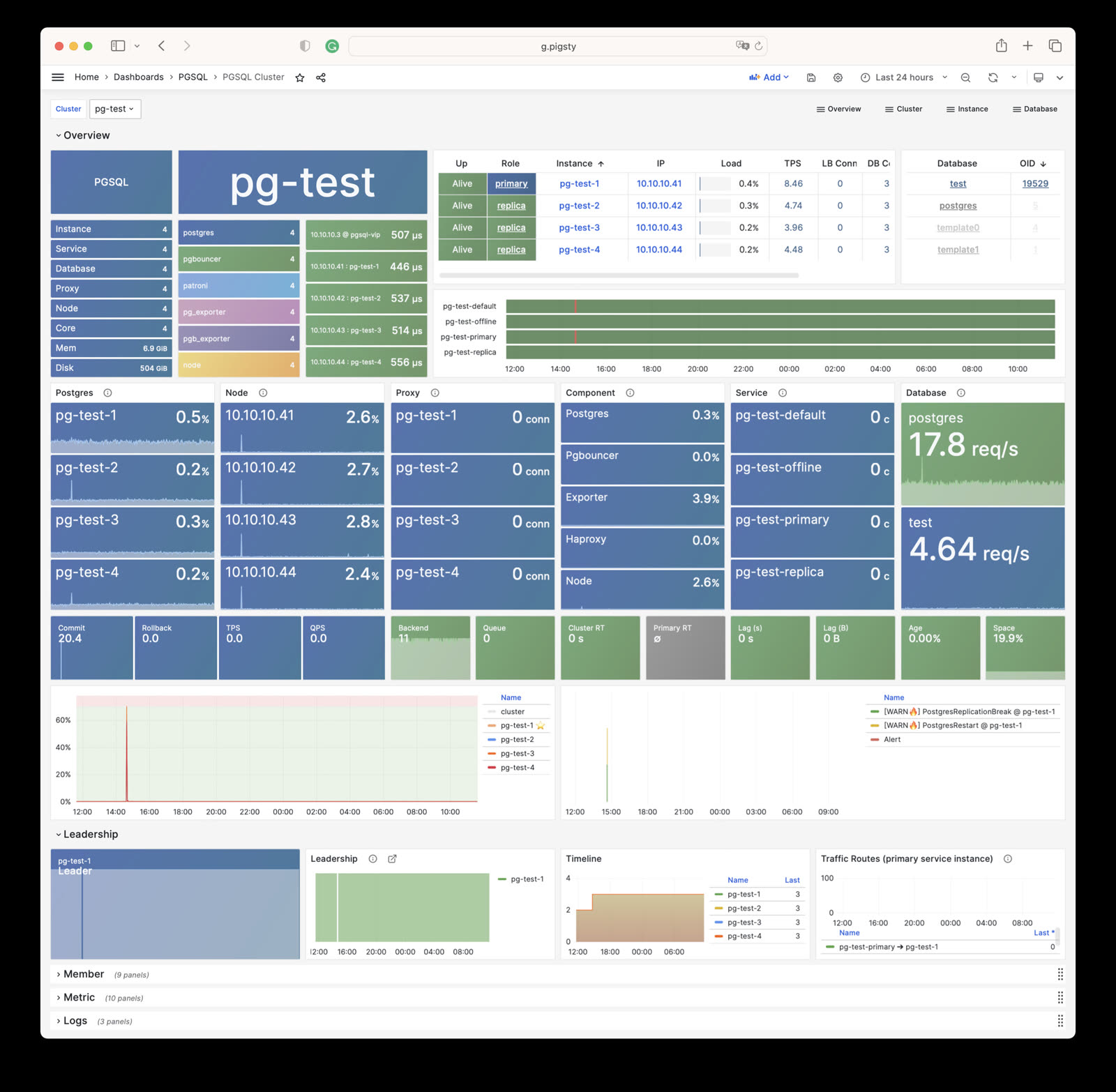

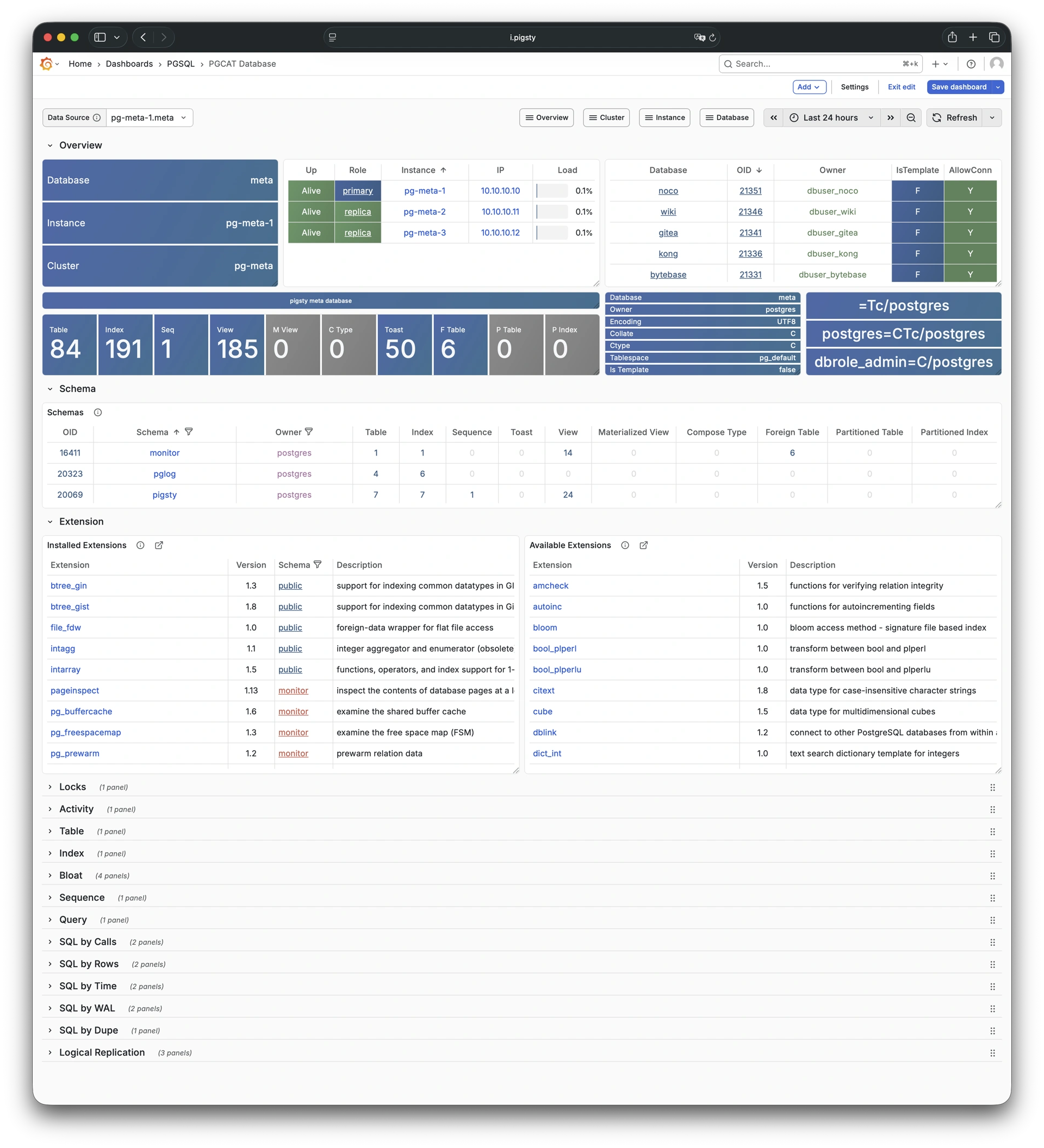

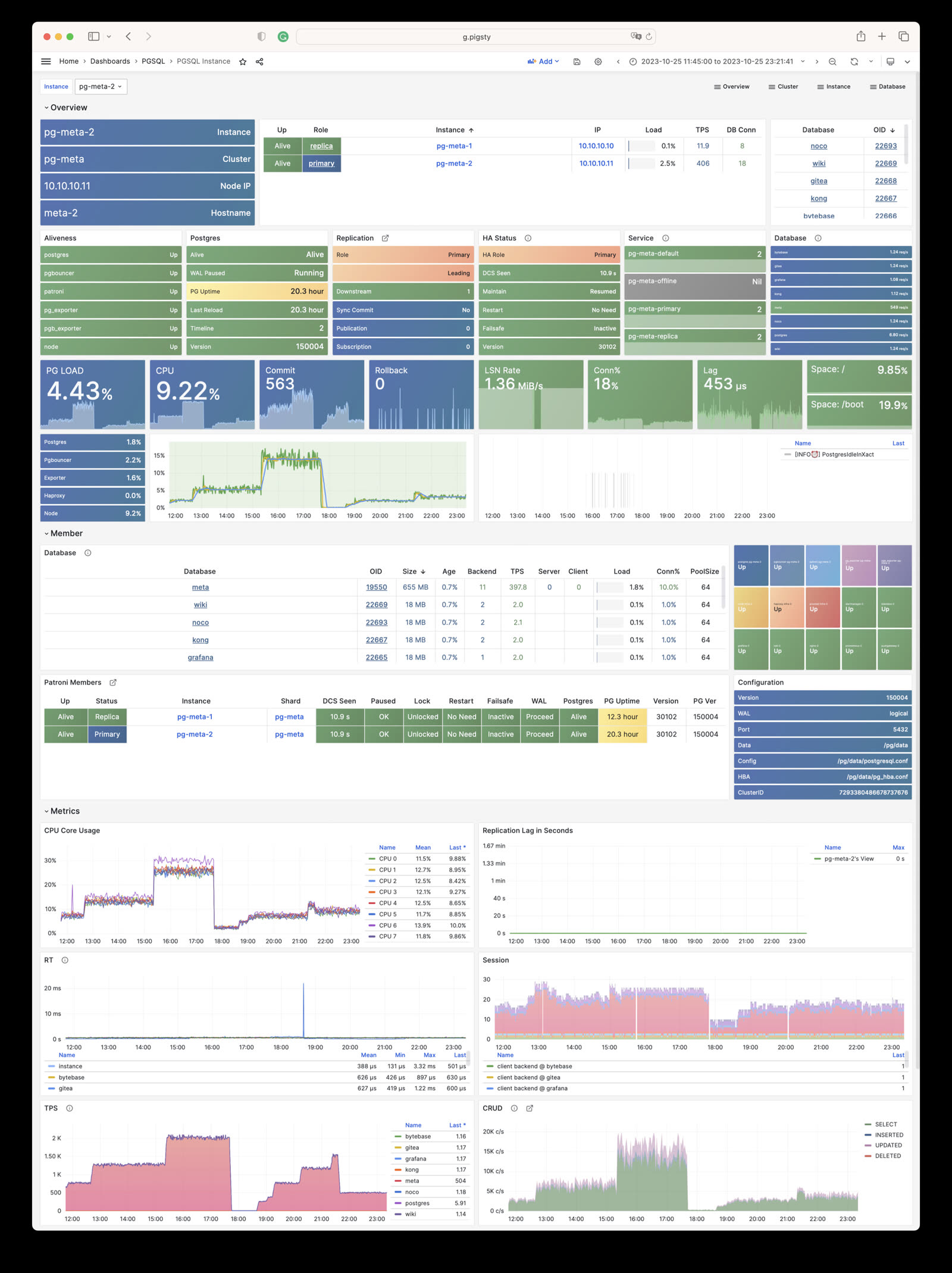

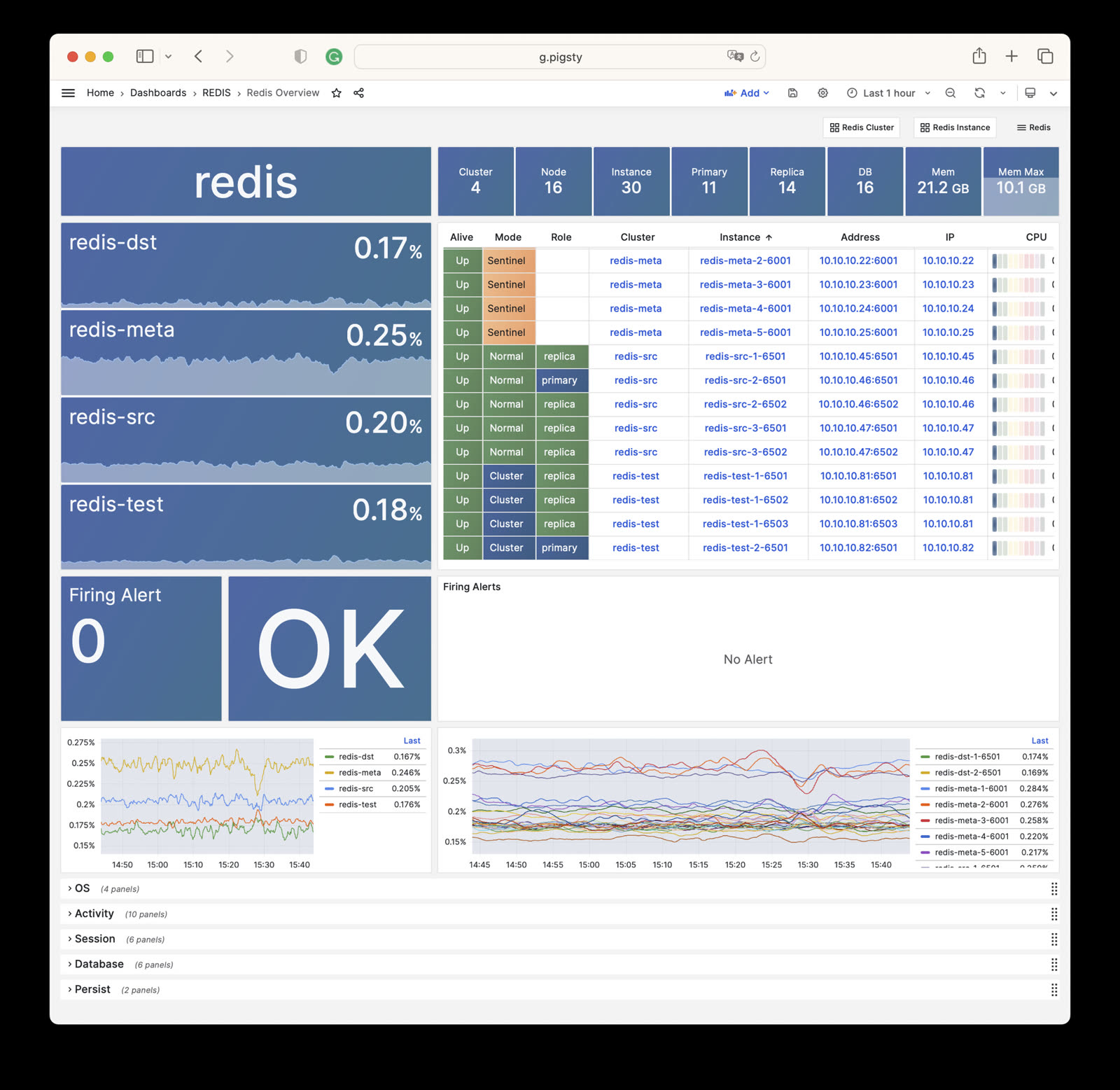

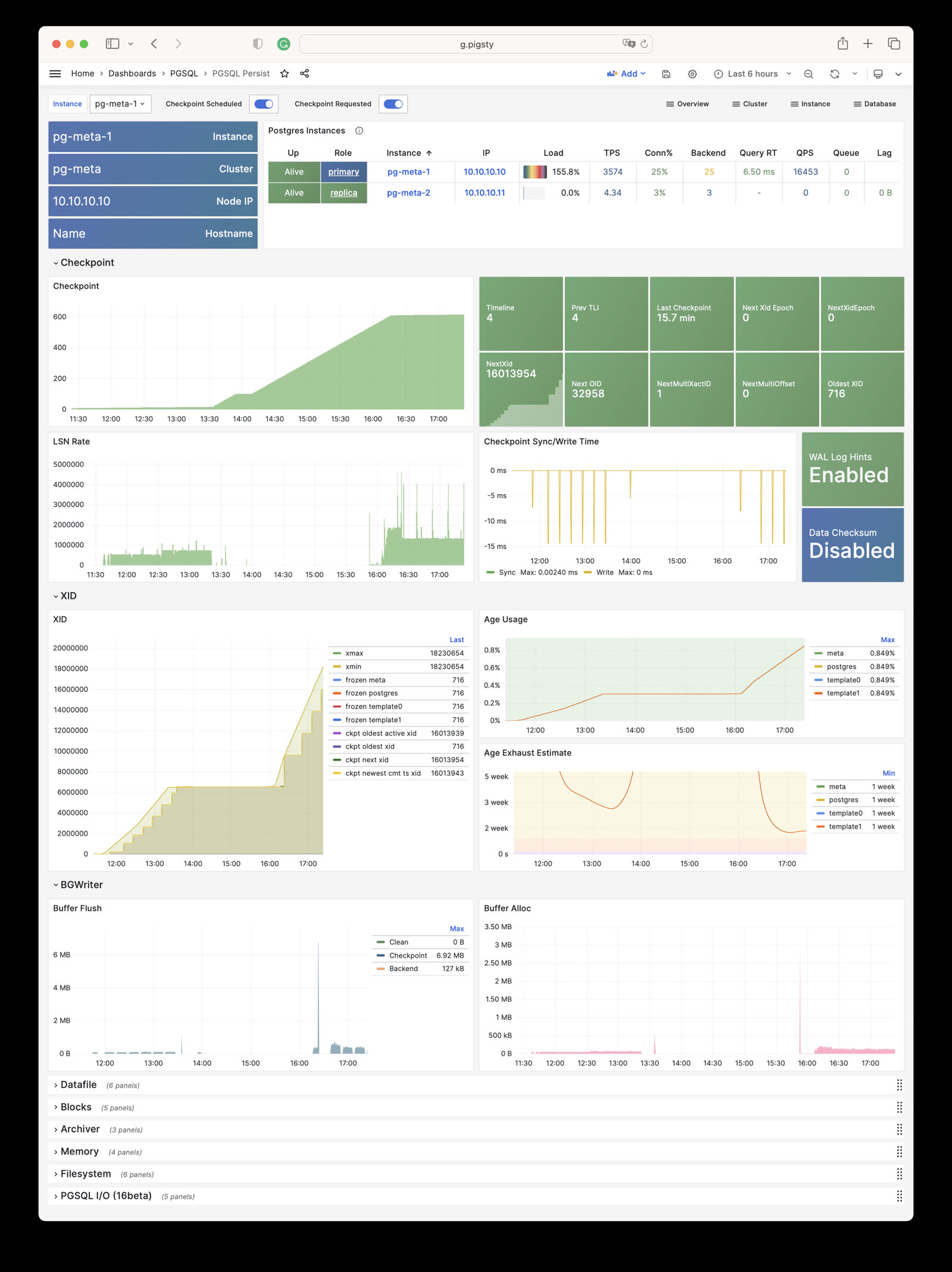

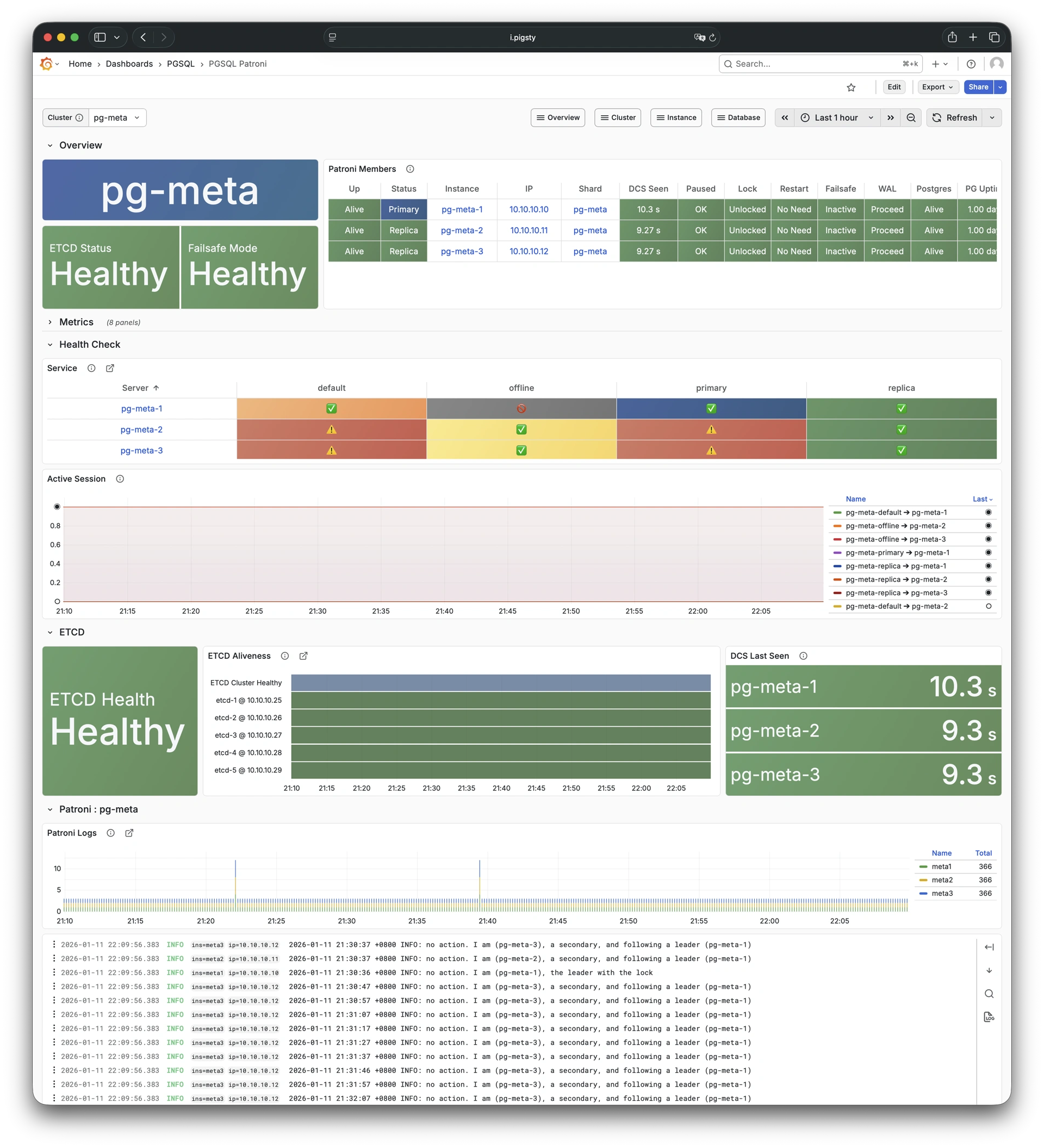

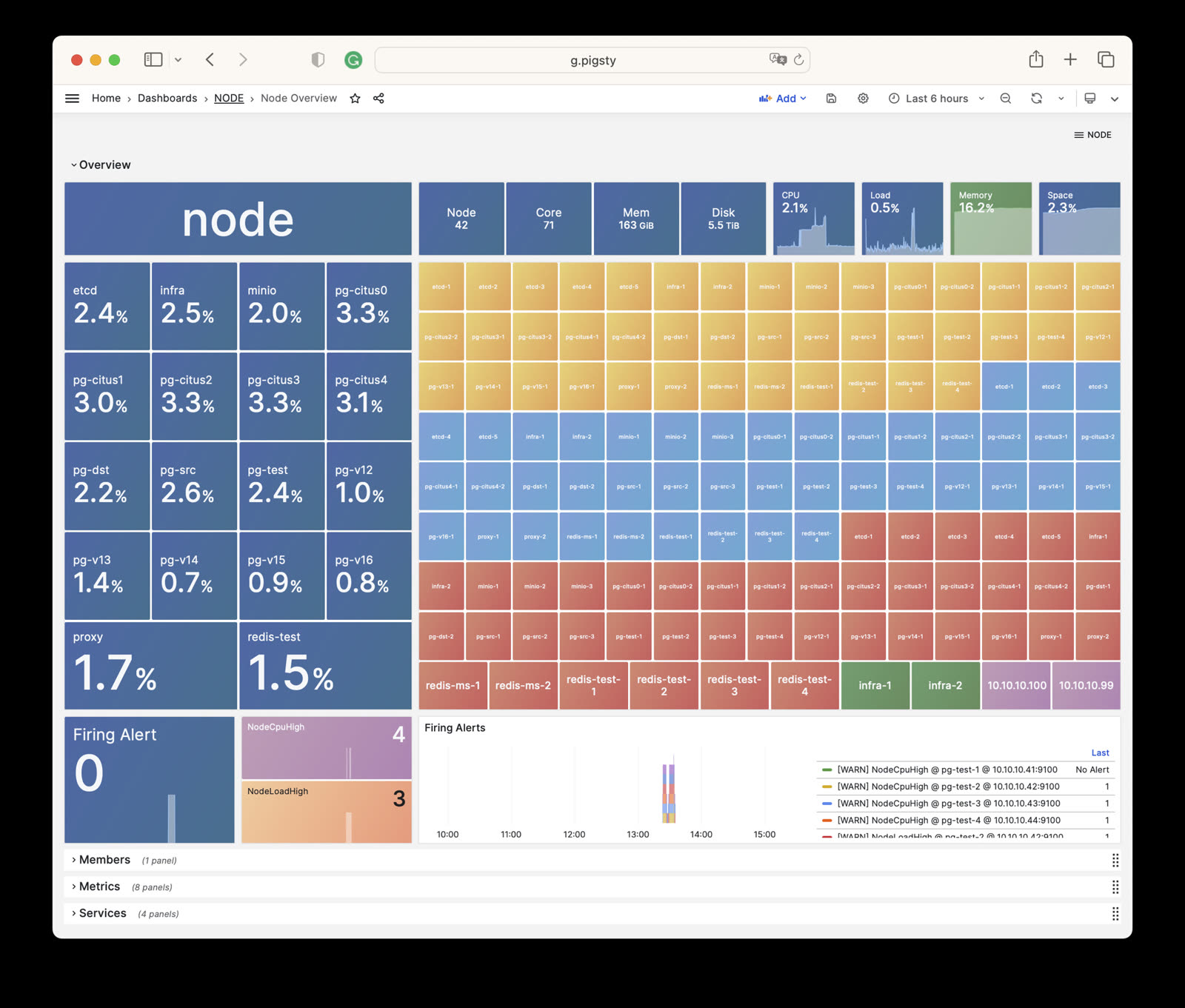

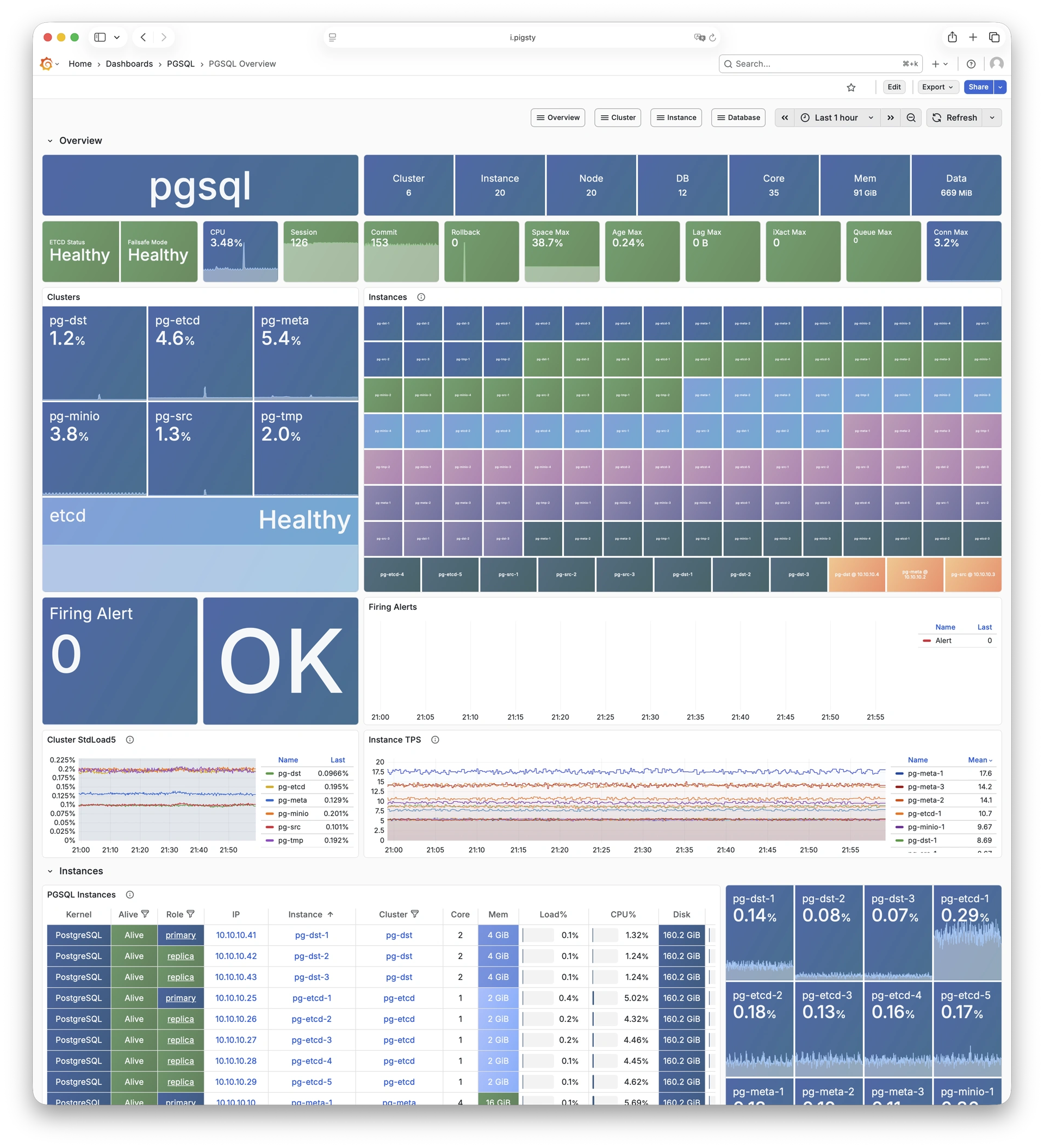

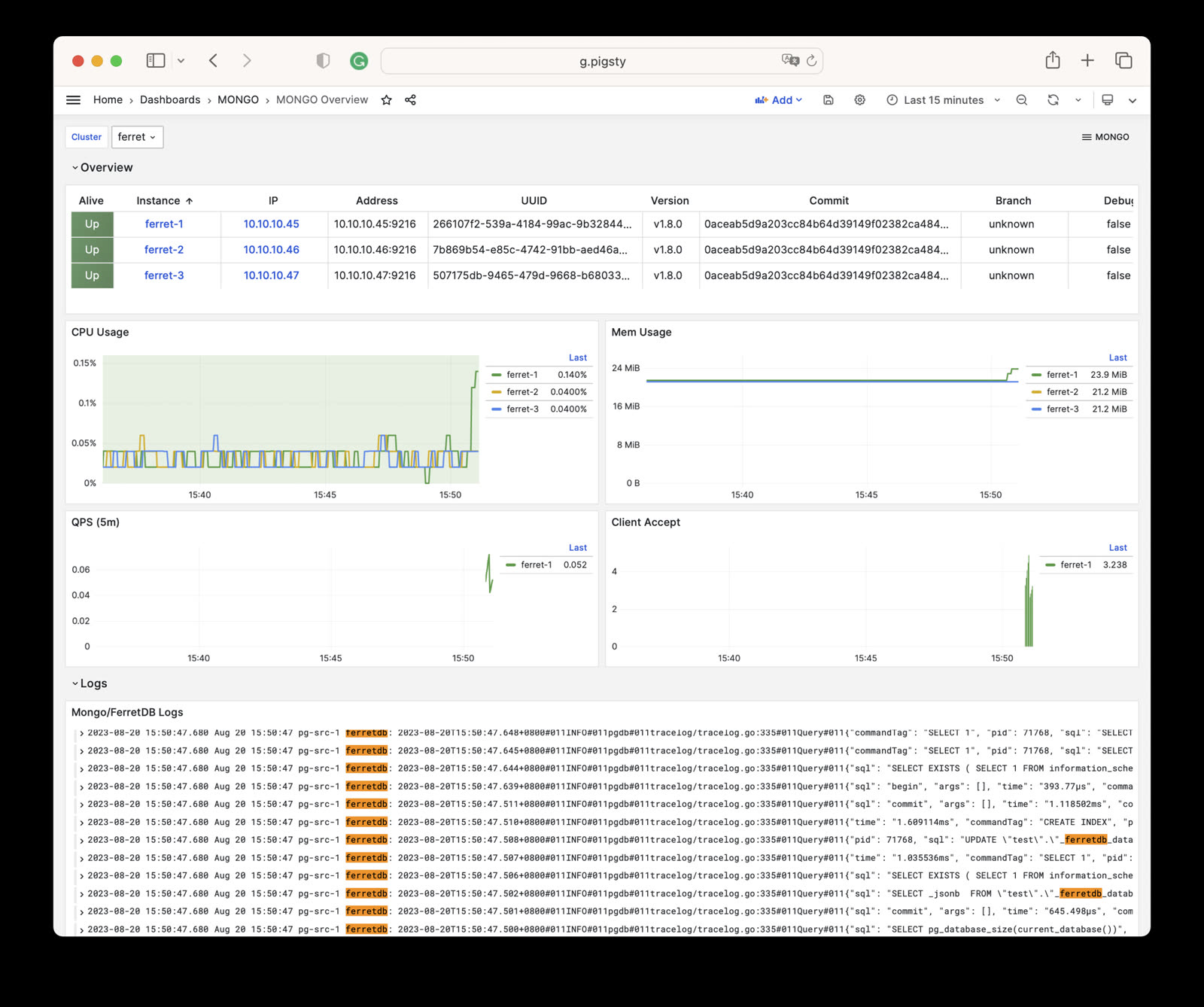

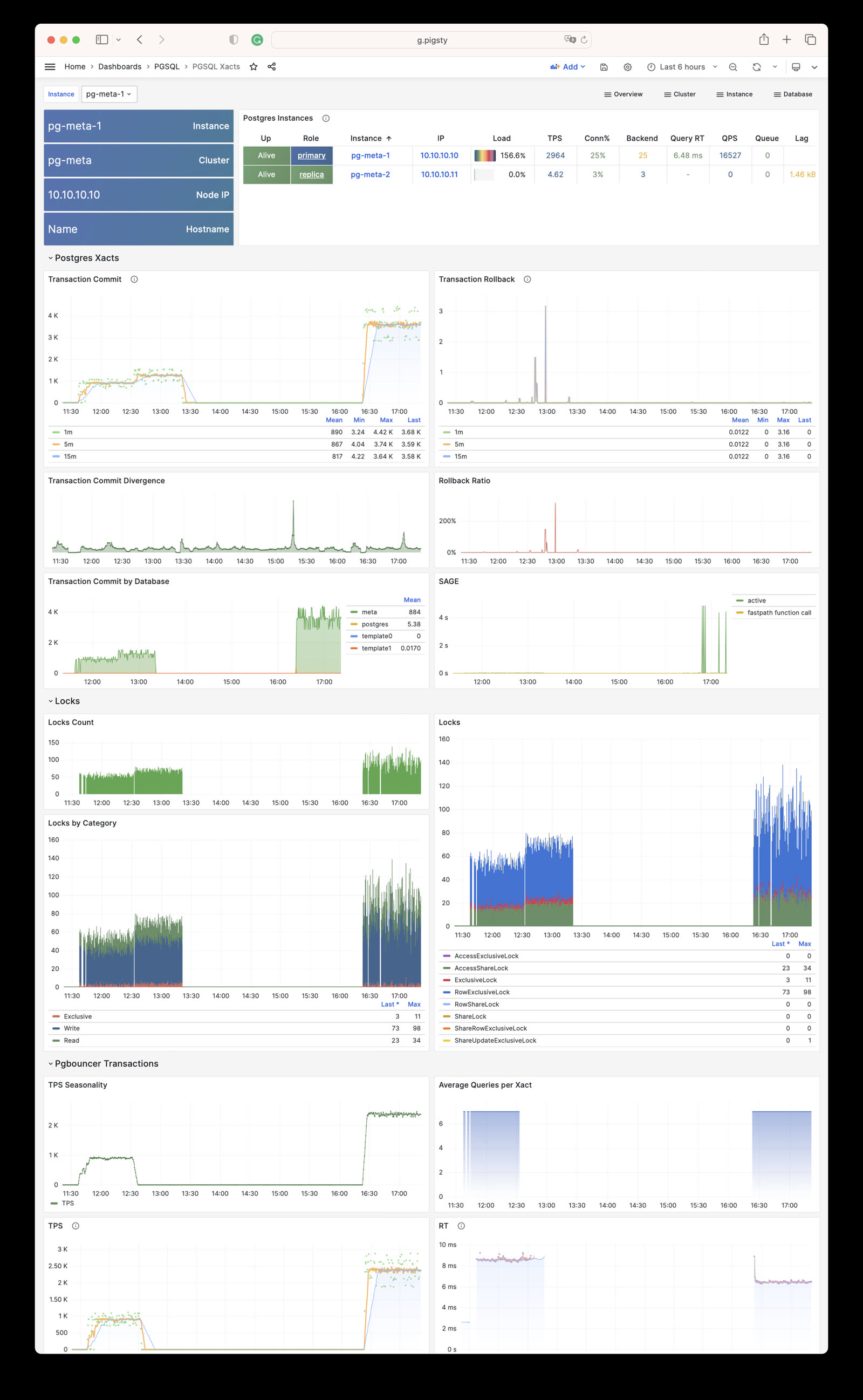

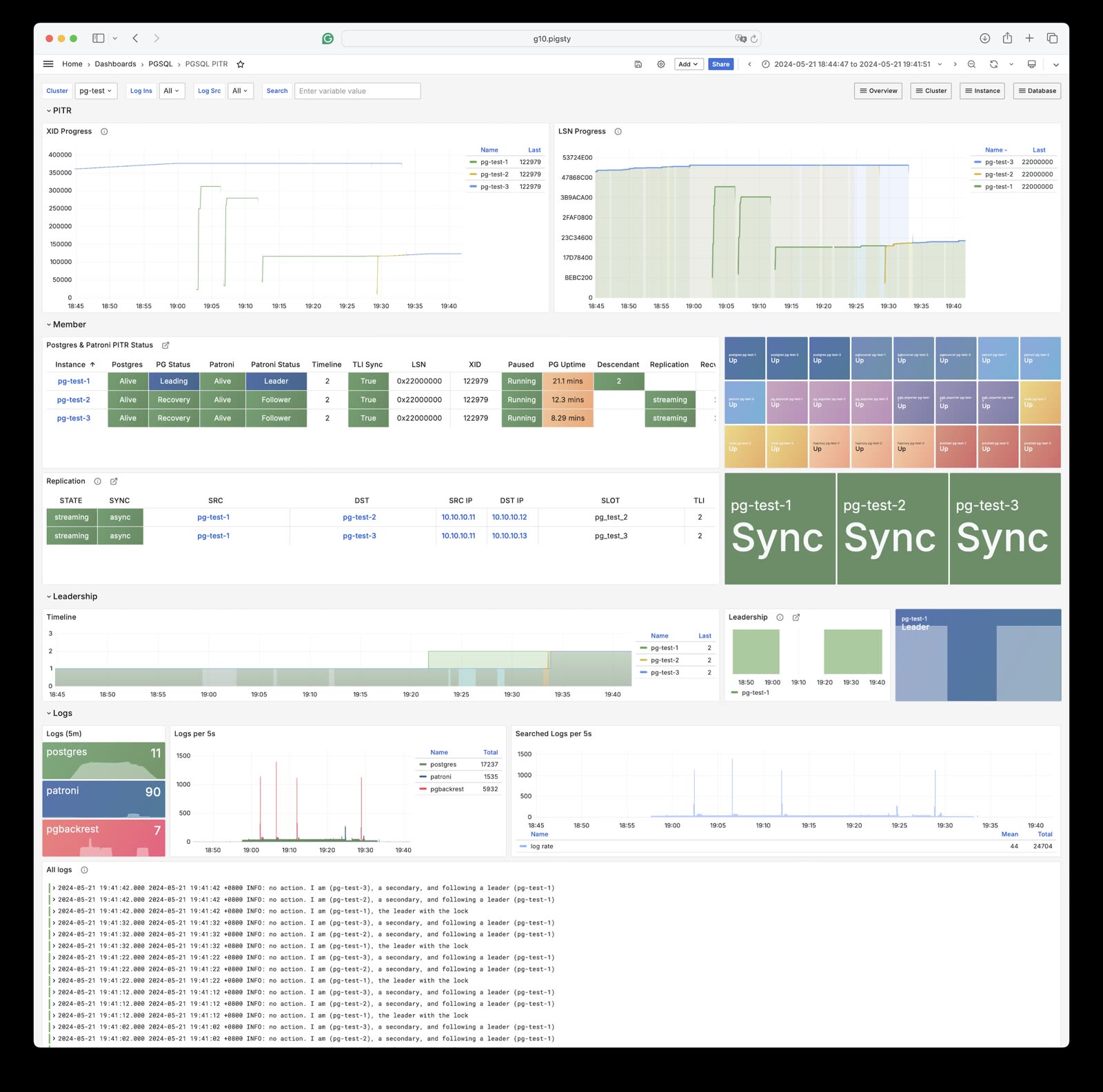

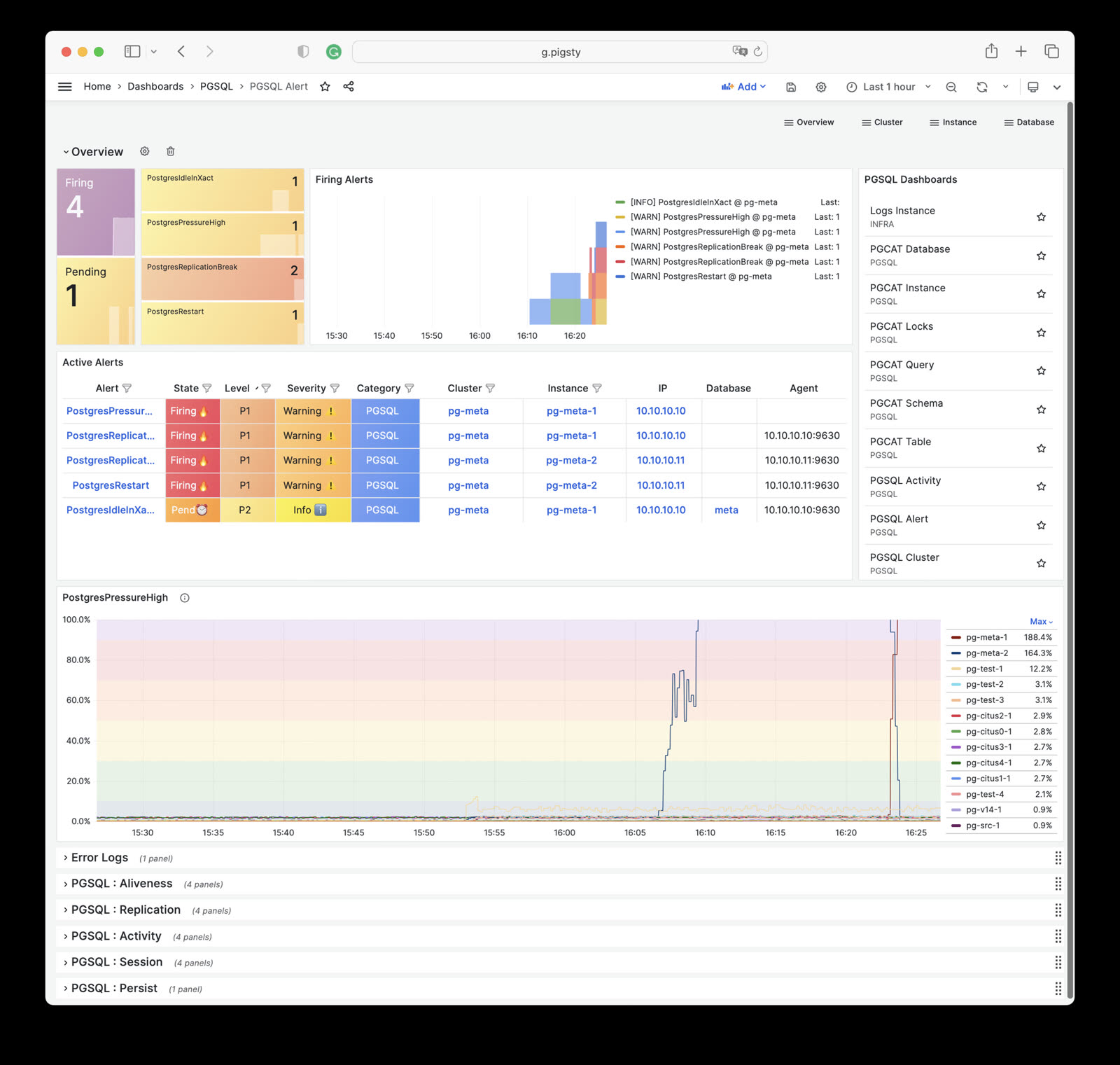

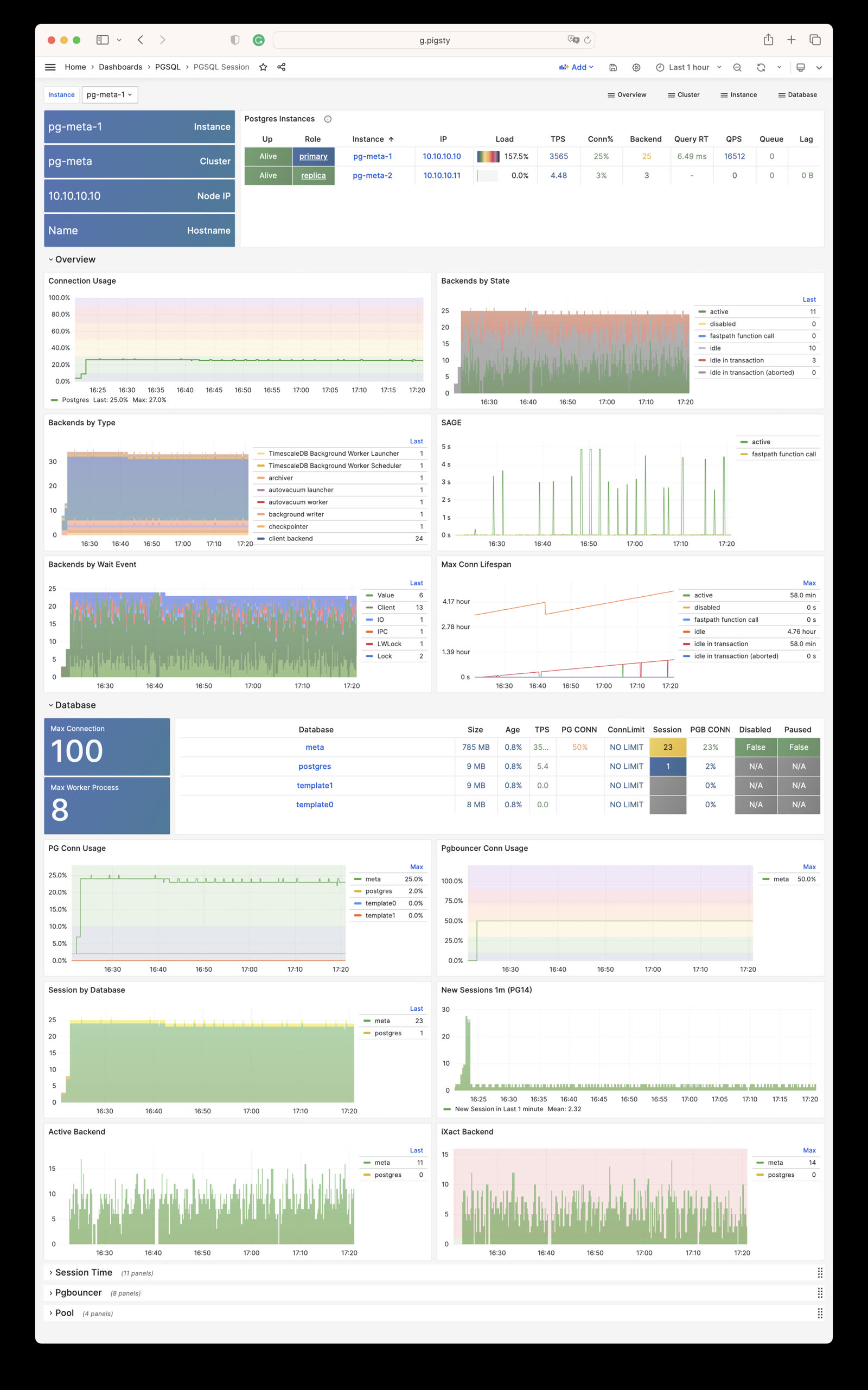

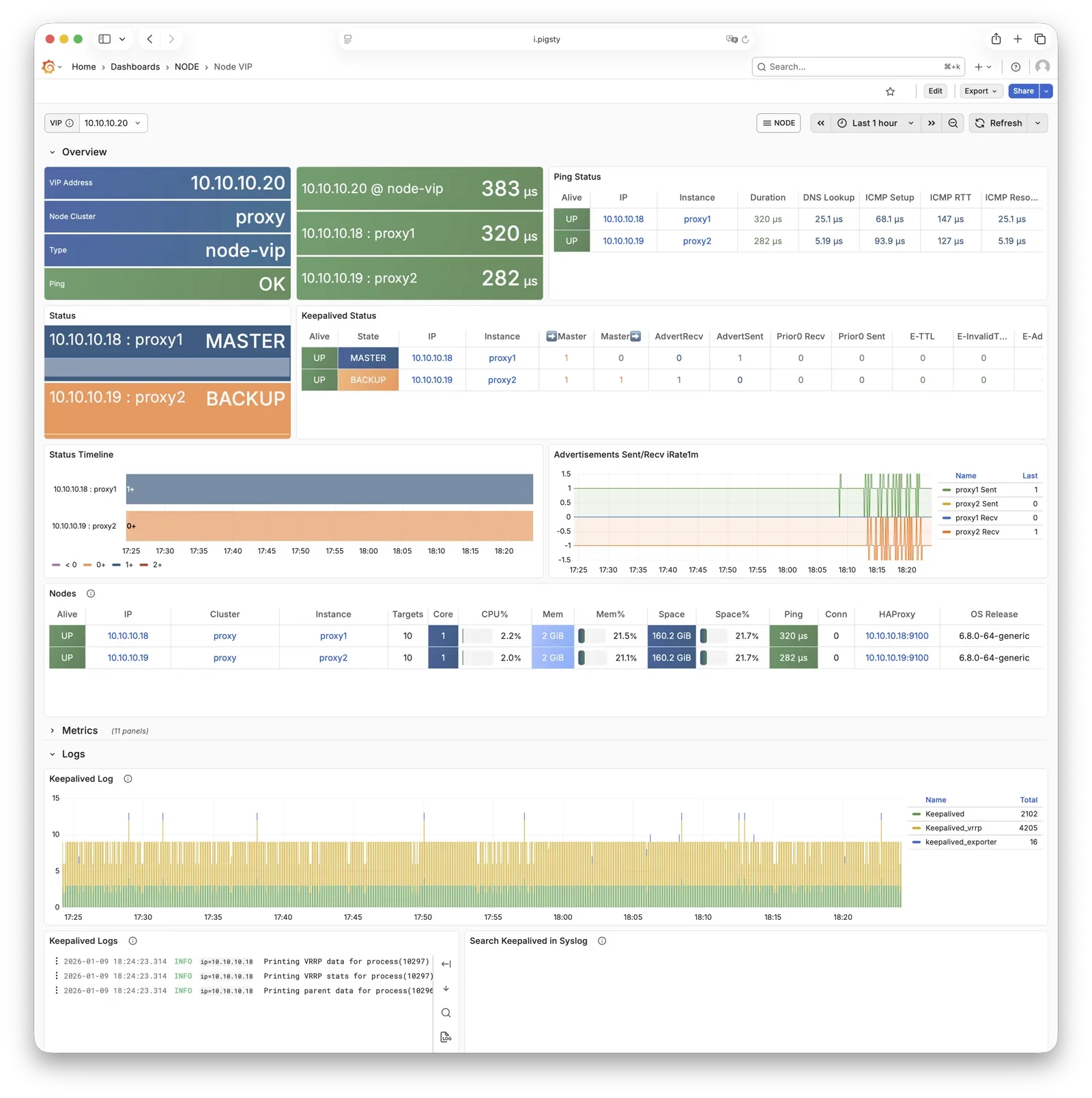

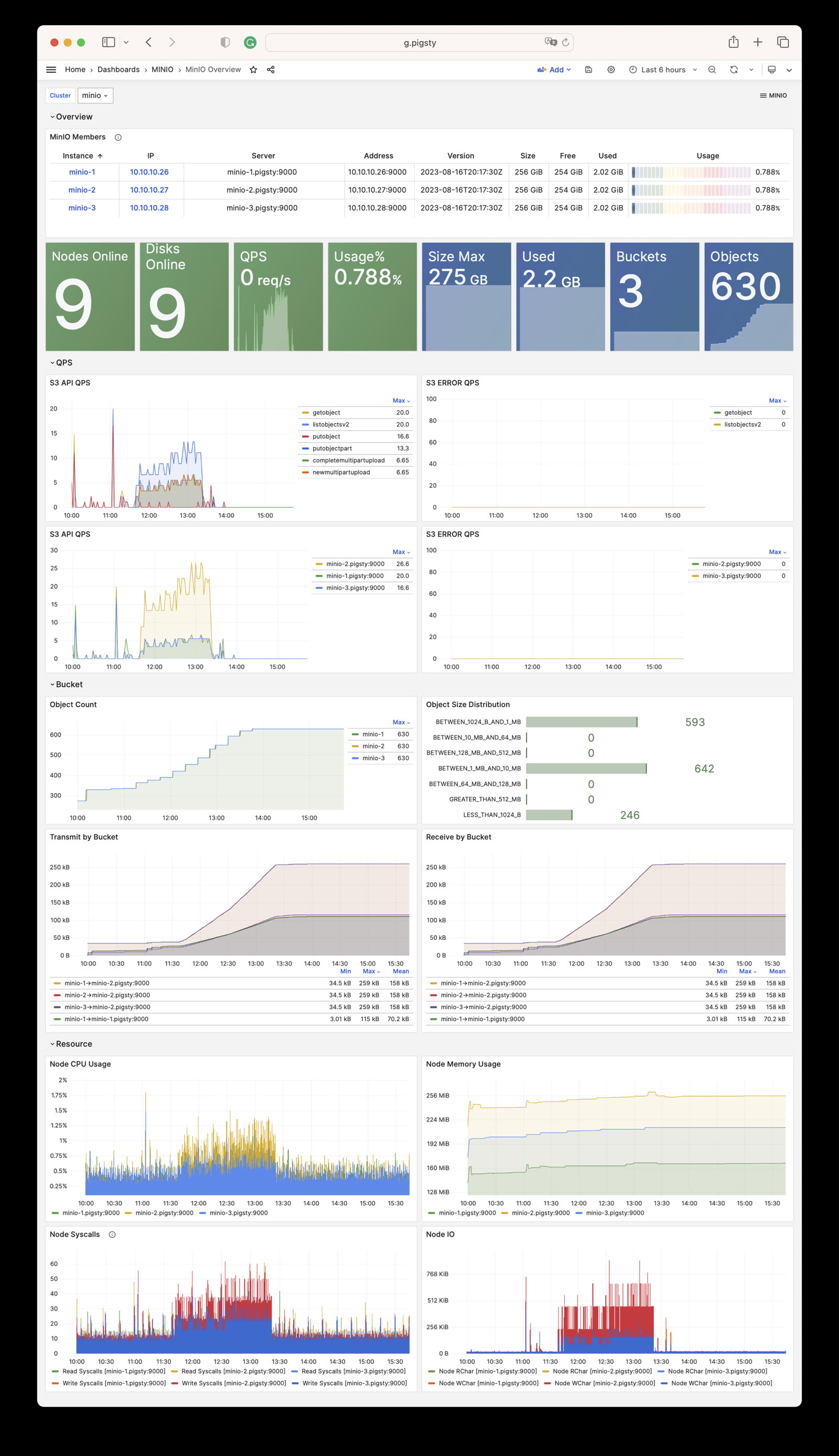

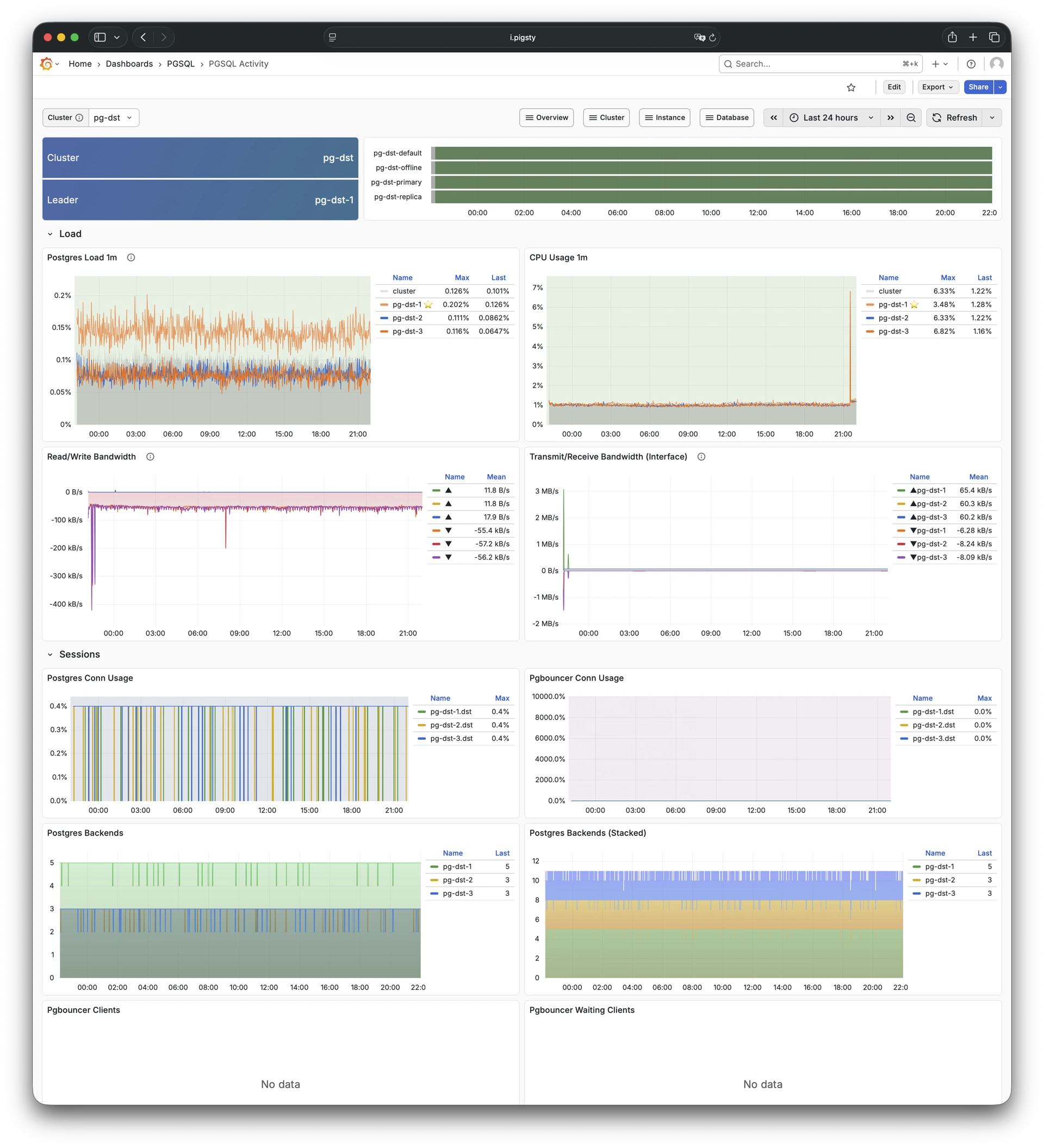

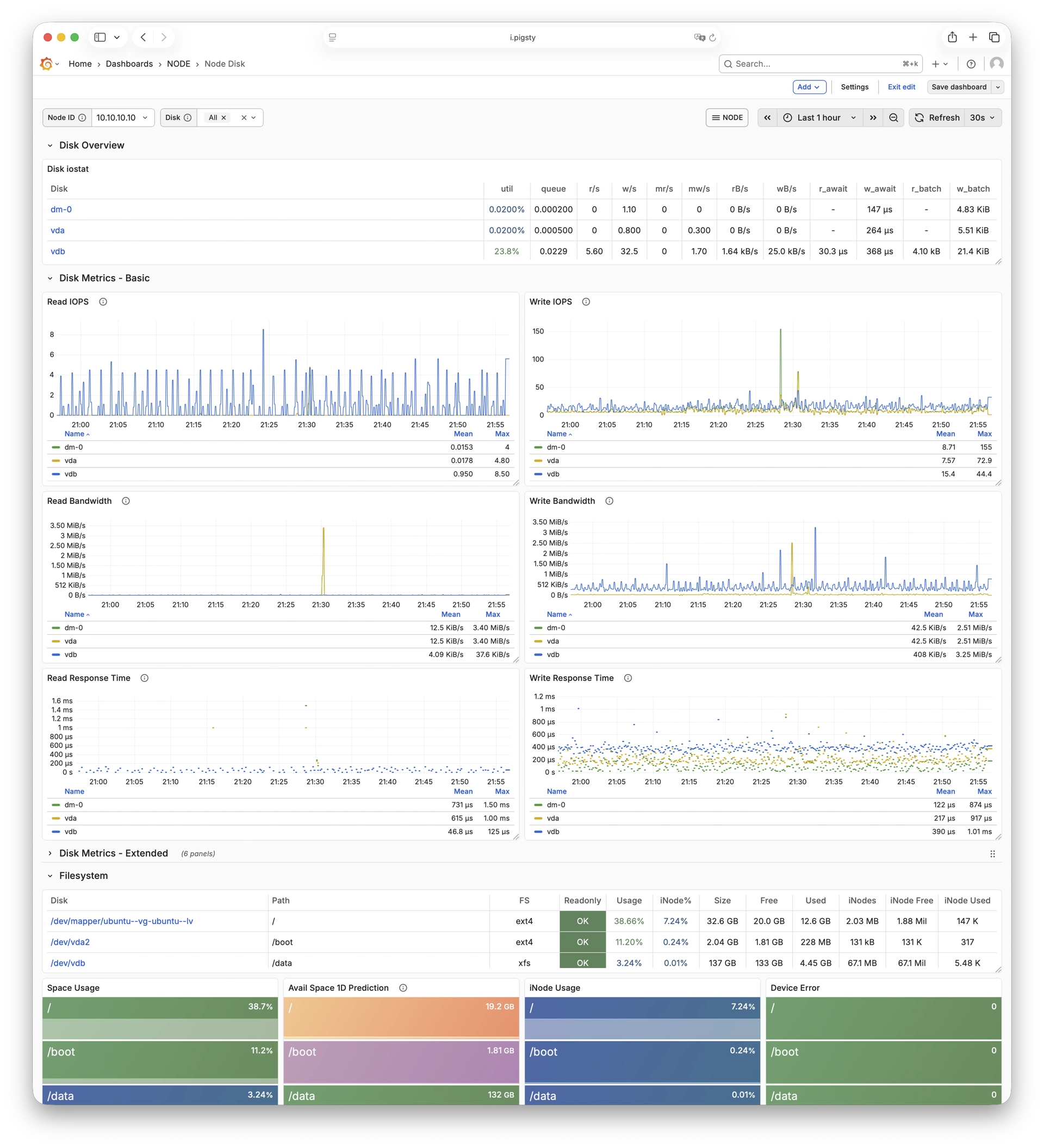

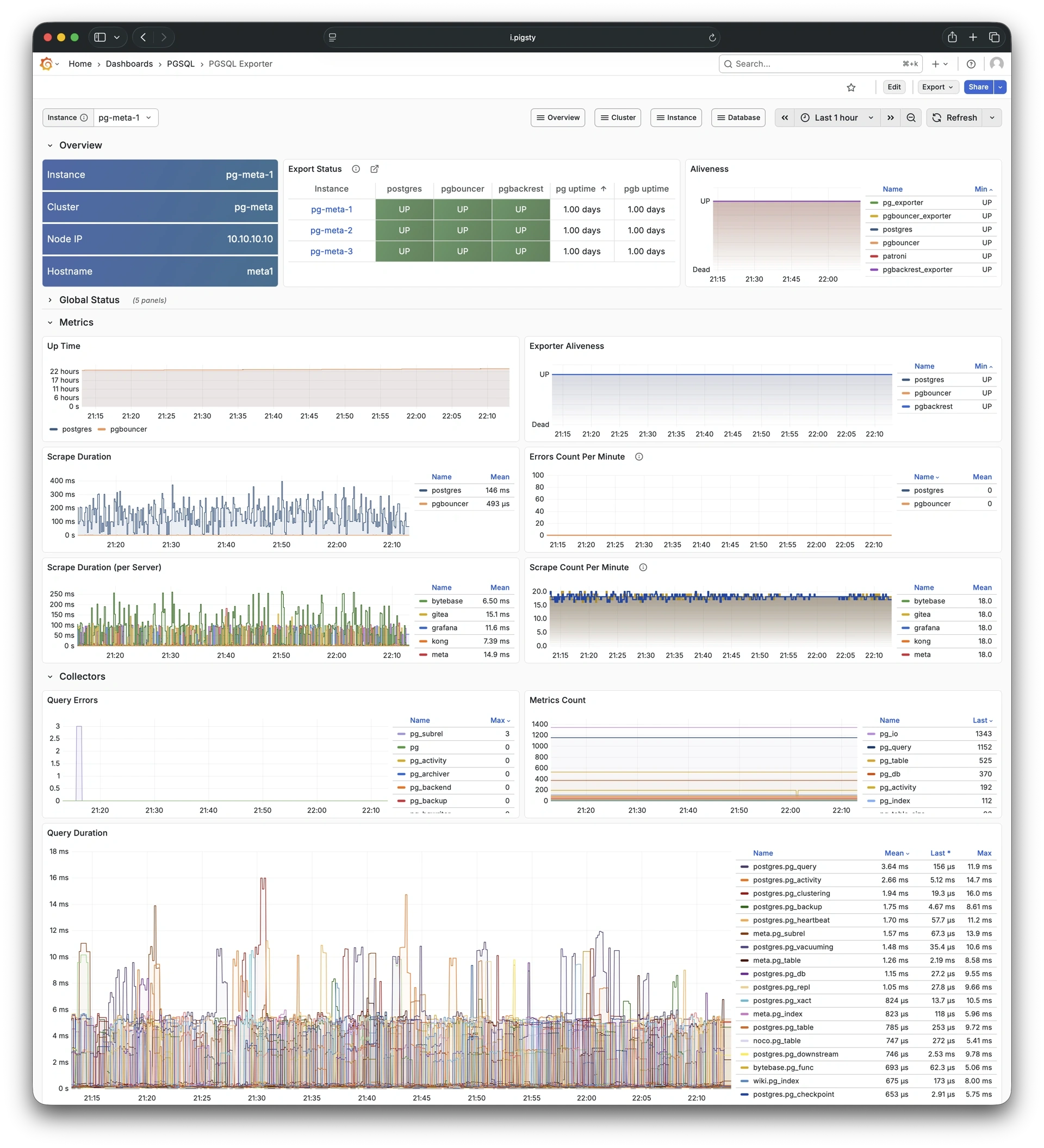

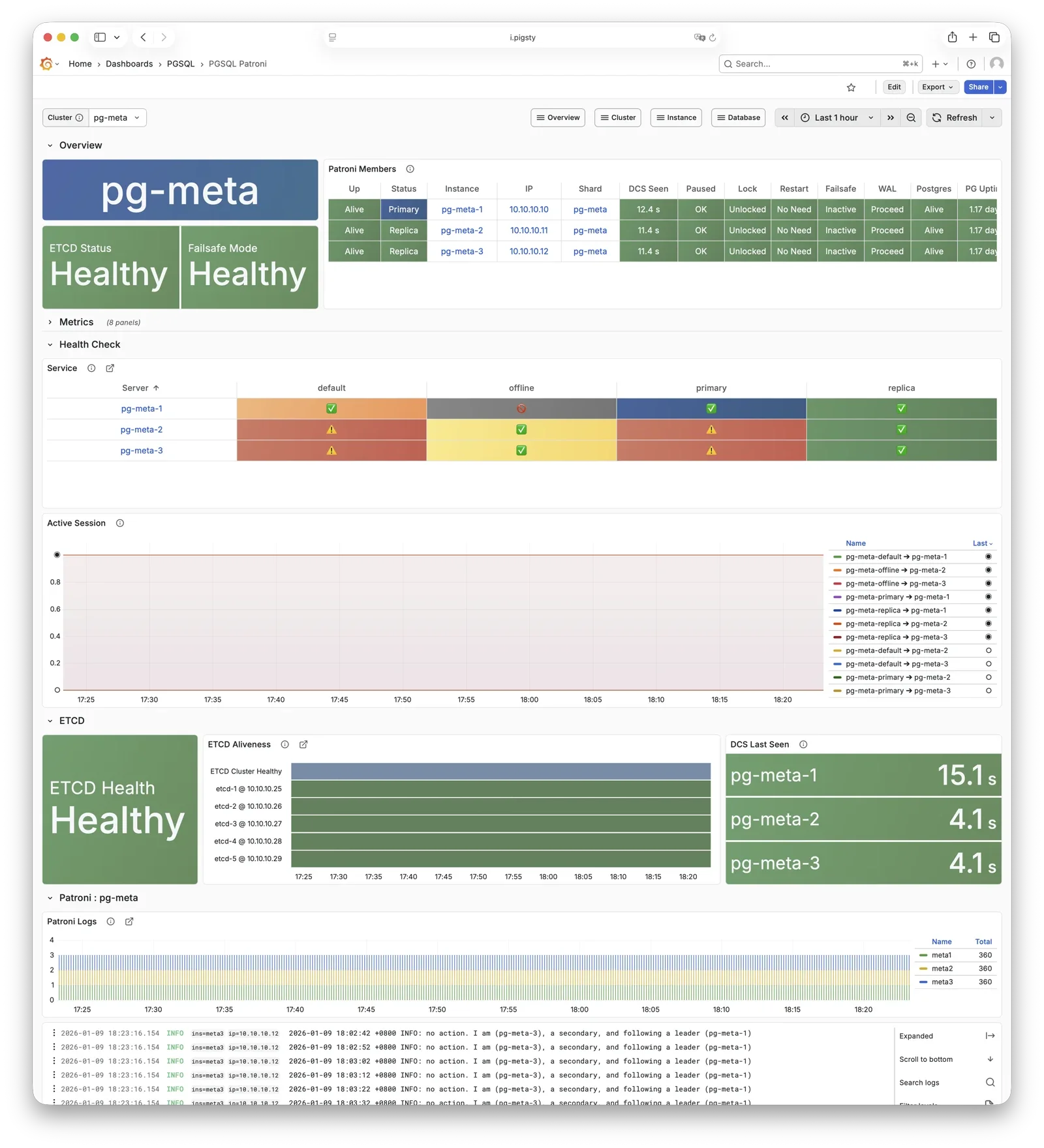

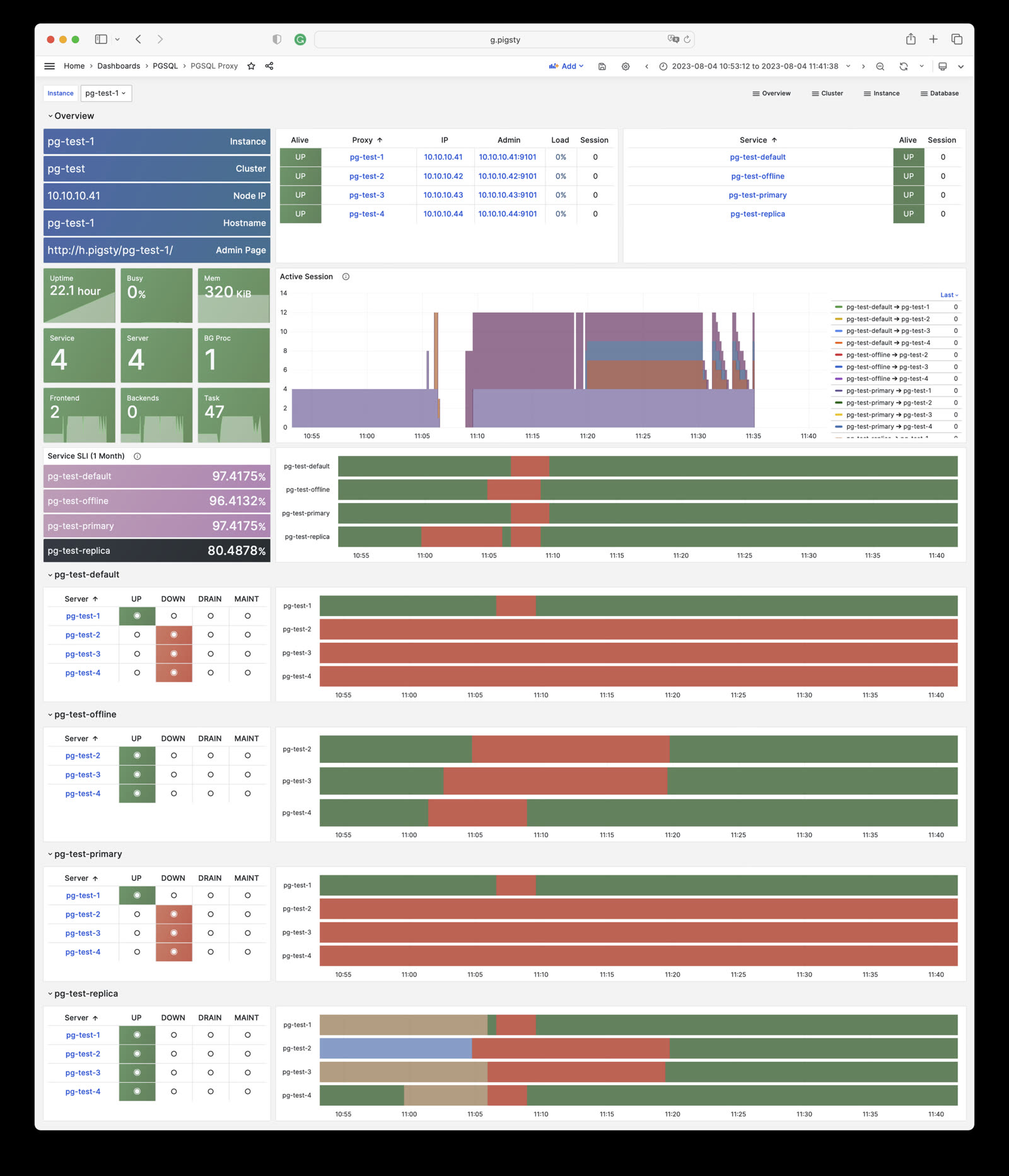

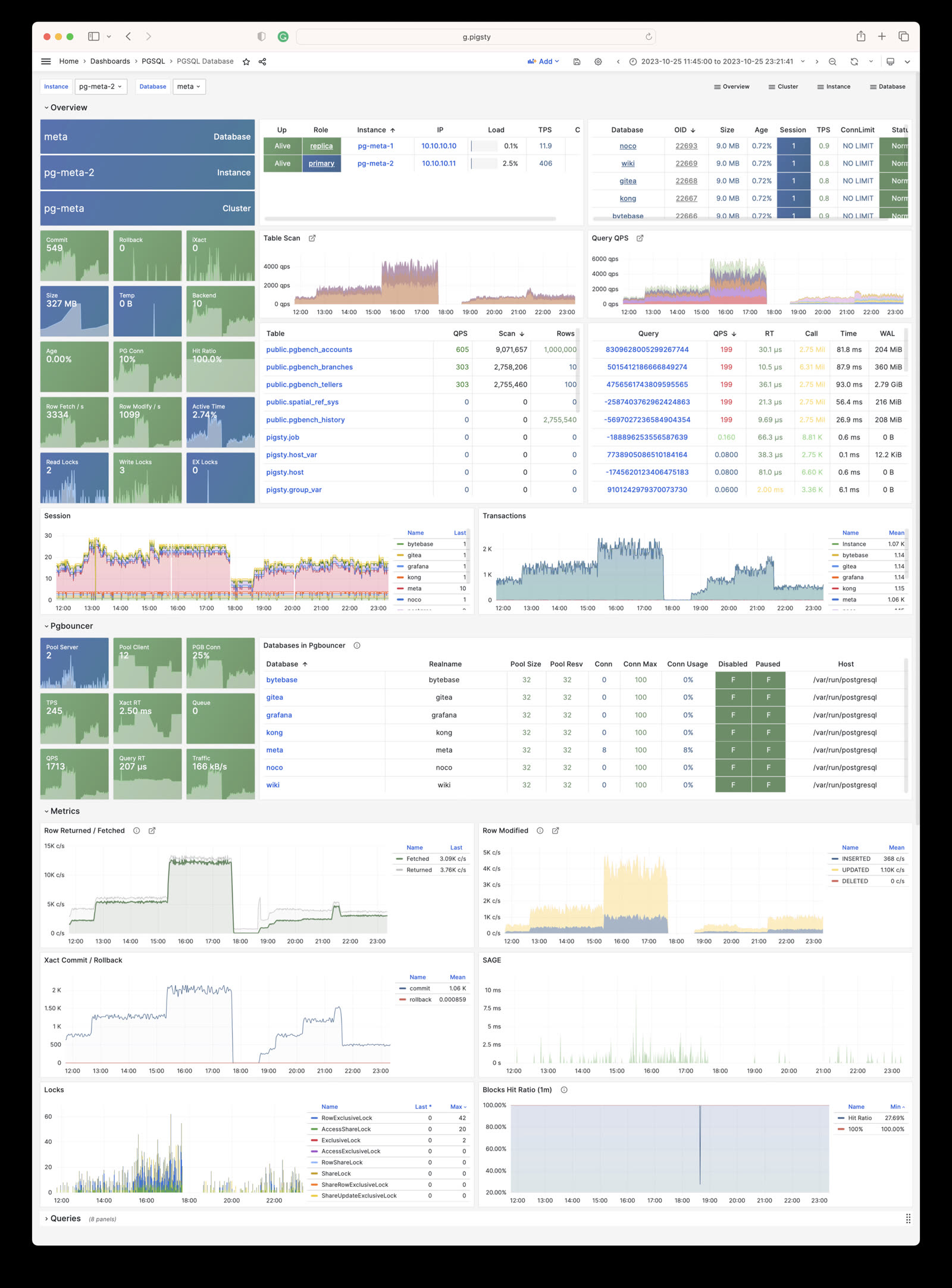

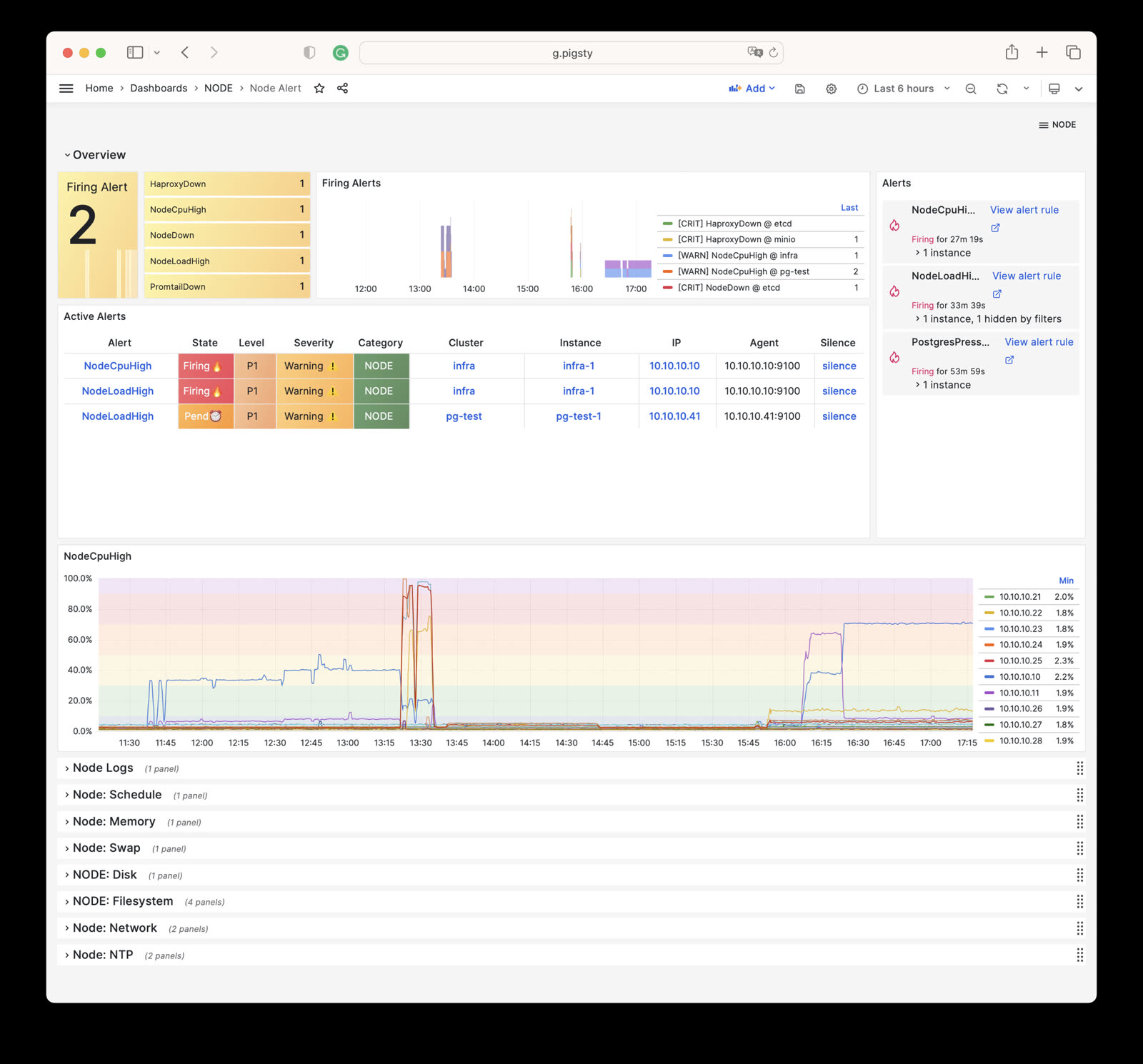

To access Pigsty’s monitoring system dashboards (Grafana), visit the /ui endpoint on the server.

If your service is exposed to Internet or office network, we recommend accessing via domain names and enabling HTTPS encryption—only minimal configuration is needed.

Endpoints

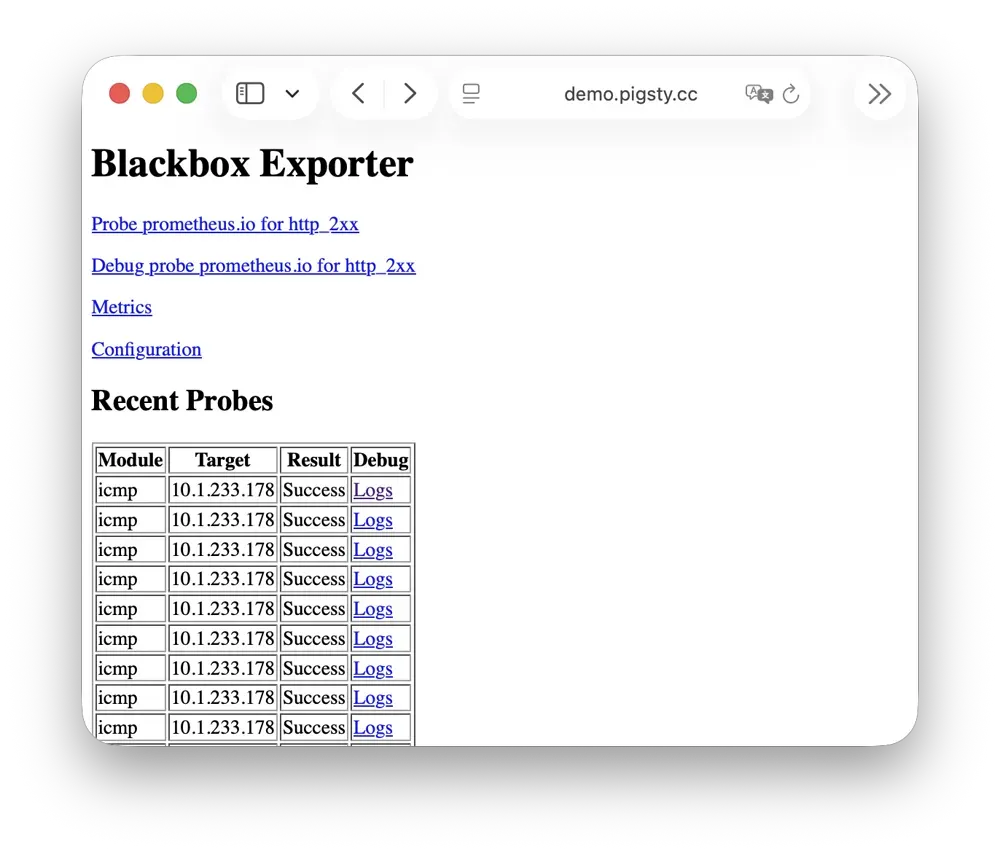

By default, Nginx exposes the following endpoints via different paths on the default server at ports 80/443:

Domain Access

If you have your own domain name, you can point it to Pigsty server’s IP address to access various services via domain.

If you want to enable HTTPS, you should modify the home server configuration in the infra_portal parameter:

all:
  vars:
    infra_portal:
      home : { domain: i.pigsty } # Replace i.pigsty with your domain

all:
  vars:
    infra_portal:  # domain specifies the domain name  # certbot parameter specifies certificate name
      home : { domain: demo.pigsty.io ,certbot: mycert }

You can run make cert command after deployment to apply for a free Let’s Encrypt certificate for the domain. If you don’t define the certbot field, Pigsty will use the local CA to issue a self-signed HTTPS certificate by default. In this case, you must first trust Pigsty’s self-signed CA to access normally in your browser.

You can also mount local directories and other upstream services to Nginx. For more management details, refer to INFRA Management - Nginx.

1.4 - Getting Started with PostgreSQL

PostgreSQL (abbreviated as PG) is the world’s most advanced and popular open-source relational database. Use it to store and retrieve multi-modal data.

This guide is for developers with basic Linux CLI experience but not very familiar with PostgreSQL, helping you quickly get started with PG in Pigsty.

We assume you’re a personal user deploying in the default single-node mode. For prod multi-node HA cluster access, refer to Prod Service Access.

Basics

In the default single-node installation template, you’ll create a PostgreSQL database cluster named pg-meta on the current node, with only one primary instance.

PostgreSQL listens on port 5432, and the cluster has a preset database meta available for use.

After installation, exit the current admin user ssh session and re-login to refresh environment variables. Then simply type pp and press Enter to access the database cluster via the psql CLI tool (p is the shortcut for the pig CLI):

vagrant@pg-meta-1:~$ pp
psql (18.6 (Ubuntu 18.6-1.pgdg24.04+1))
Type "help" for help.

postgres=#

You can also switch to the postgres OS user and execute psql directly to connect to the default postgres admin database.

Connecting to Database

To access a PostgreSQL database, use a CLI tool or graphical client and fill in the PostgreSQL connection string:

postgres://username:password@host:port/dbname

Some drivers and tools may require you to fill in these parameters separately. The following five are typically required:

For personal use, you can directly use the Pigsty default database superuser dbuser_dba for connection and management. The dbuser_dba has full database privileges. By default, if you specified the configure -g parameter when configuring Pigsty, the password will be randomly generated and saved in ~/pigsty/pigsty.yml:

cat ~/pigsty/pigsty.yml | grep pg_admin_password

Default Accounts

Pigsty’s default single-node template presets the following database users, ready to use out of the box:

For example, you can connect to the meta database in the pg-meta cluster using three different connection strings with three different users:

postgres://dbuser_dba:[email protected]:5432/meta
postgres://dbuser_meta:[email protected]:5432/meta
postgres://dbuser_view:[email protected]:5432/meta

Note: These default passwords are automatically replaced with random strong passwords when using configure -g. Remember to replace the IP address and password with actual values.

Using CLI Tools

psql is the official PostgreSQL CLI client tool, powerful and the first choice for DBAs and developers.

On a server with Pigsty deployed, you can directly use psql to connect to the local database:

# Simplest way: use postgres system user for local connection (no password needed)
sudo -u postgres psql

# Use connection string (recommended, most universal)
psql 'postgres://dbuser_dba:[email protected]:5432/meta'

# Use parameter form
psql -h 10.10.10.10 -p 5432 -U dbuser_dba -d meta

# Use env vars to avoid password appearing in command line
export PGPASSWORD='DBUser.DBA'
psql -h 10.10.10.10 -p 5432 -U dbuser_dba -d meta

After successful connection, you’ll see a prompt like this:

psql (18.6)
Type "help" for help.

meta=#

Common psql Commands

After entering psql, you can execute SQL statements or use meta-commands starting with \:

Executing SQL

In psql, directly enter SQL statements ending with semicolon ;:

-- Check PostgreSQL version
SELECT version();

-- Check current time
SELECT now();

-- Create a test table
CREATE TABLE test (id SERIAL PRIMARY KEY, name TEXT, created_at TIMESTAMPTZ DEFAULT now());

-- Insert data
INSERT INTO test (name) VALUES ('hello'), ('world');

-- Query data
SELECT * FROM test;

-- Drop test table
DROP TABLE test;

Using Graphical Clients

If you prefer graphical interfaces, here are some popular PostgreSQL clients:

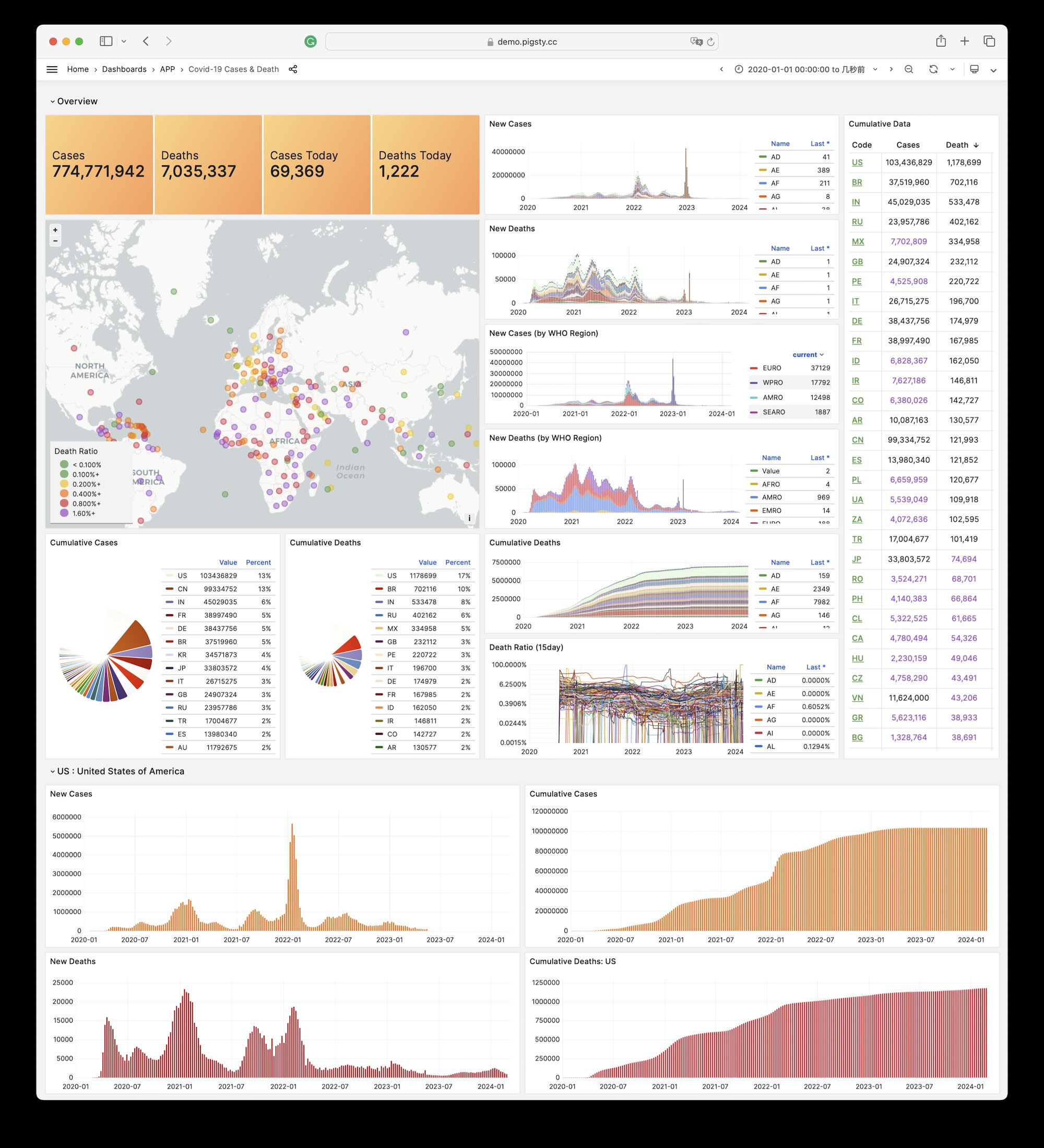

Grafana

Pigsty’s INFRA module includes Grafana with a pre-configured PostgreSQL data source (Meta). You can directly query the database using SQL from the Grafana Explore panel through the browser graphical interface, no additional client tools needed.

Grafana’s default username is admin, and the password can be found in the grafana_admin_password field in the inventory (default pigsty).

DataGrip

DataGrip is a professional database IDE from JetBrains, with powerful features. IntelliJ IDEA’s built-in Database Console can also connect to PostgreSQL in a similar way.

DBeaver

DBeaver is a free open-source universal database tool supporting almost all major databases. It’s a cross-platform desktop client.

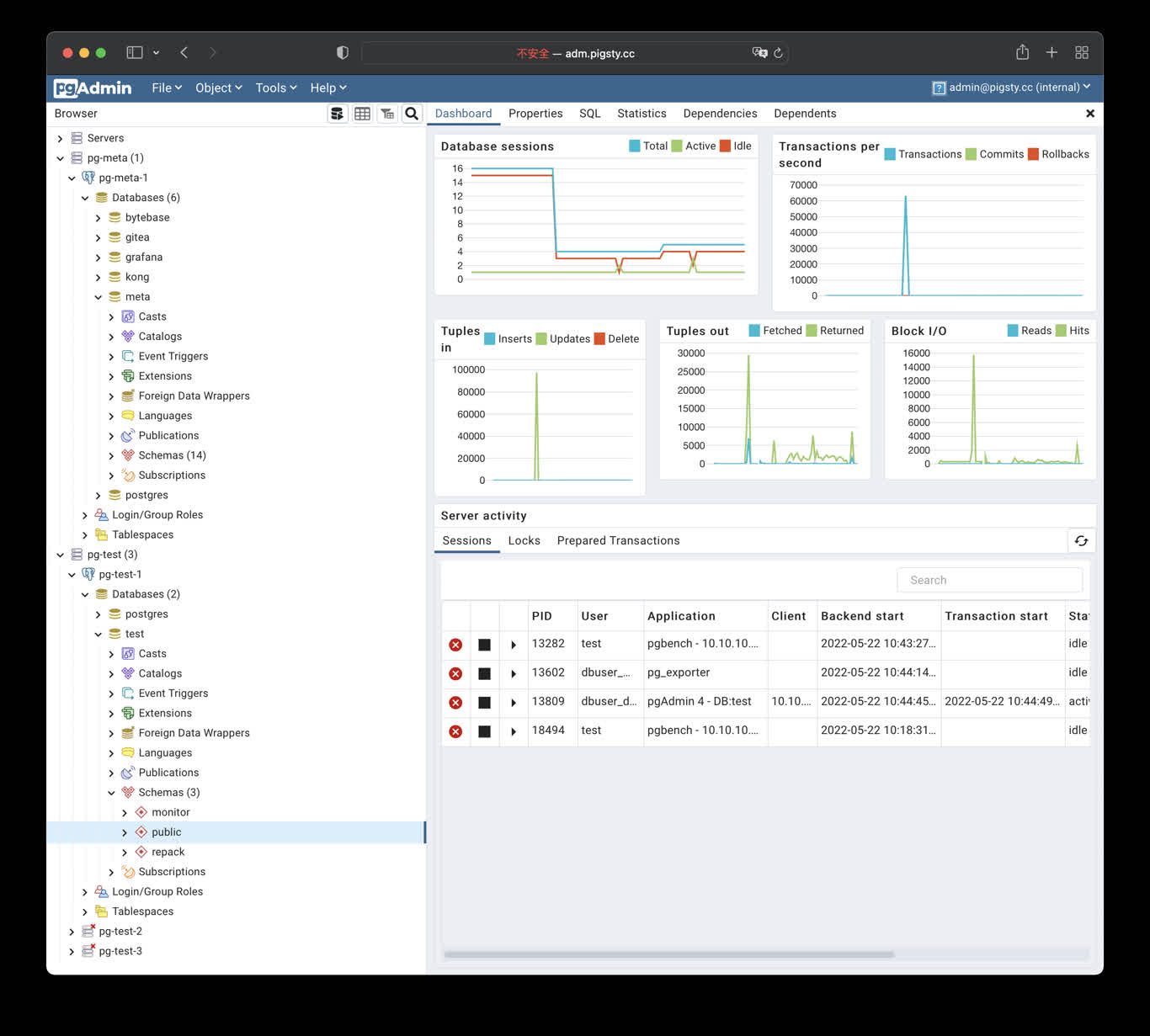

pgAdmin

pgAdmin is the official PostgreSQL-specific GUI tool from PGDG, available through browser or as a desktop client.

Pigsty provides a configuration template for one-click pgAdmin service deployment using Docker in Software Template: pgAdmin.

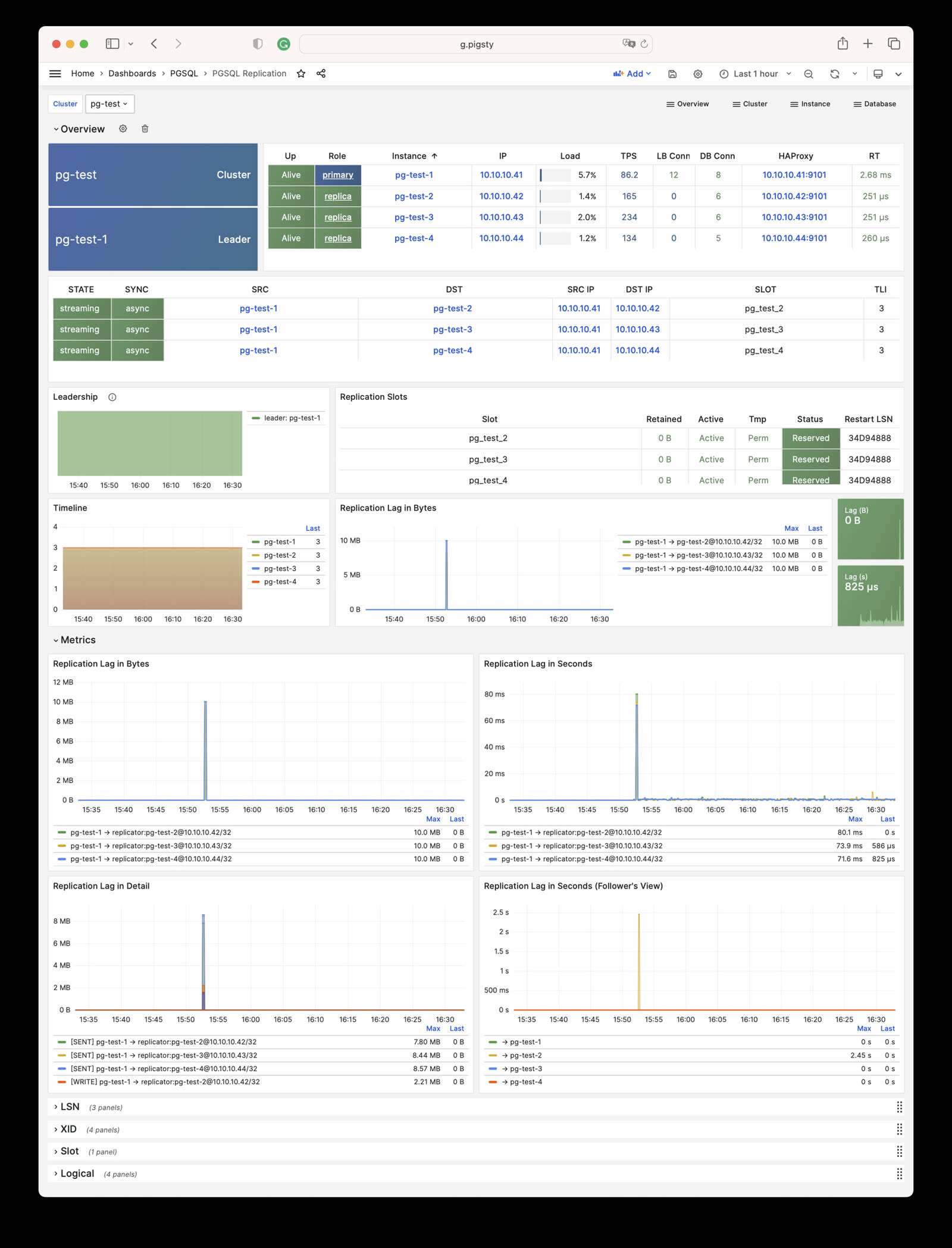

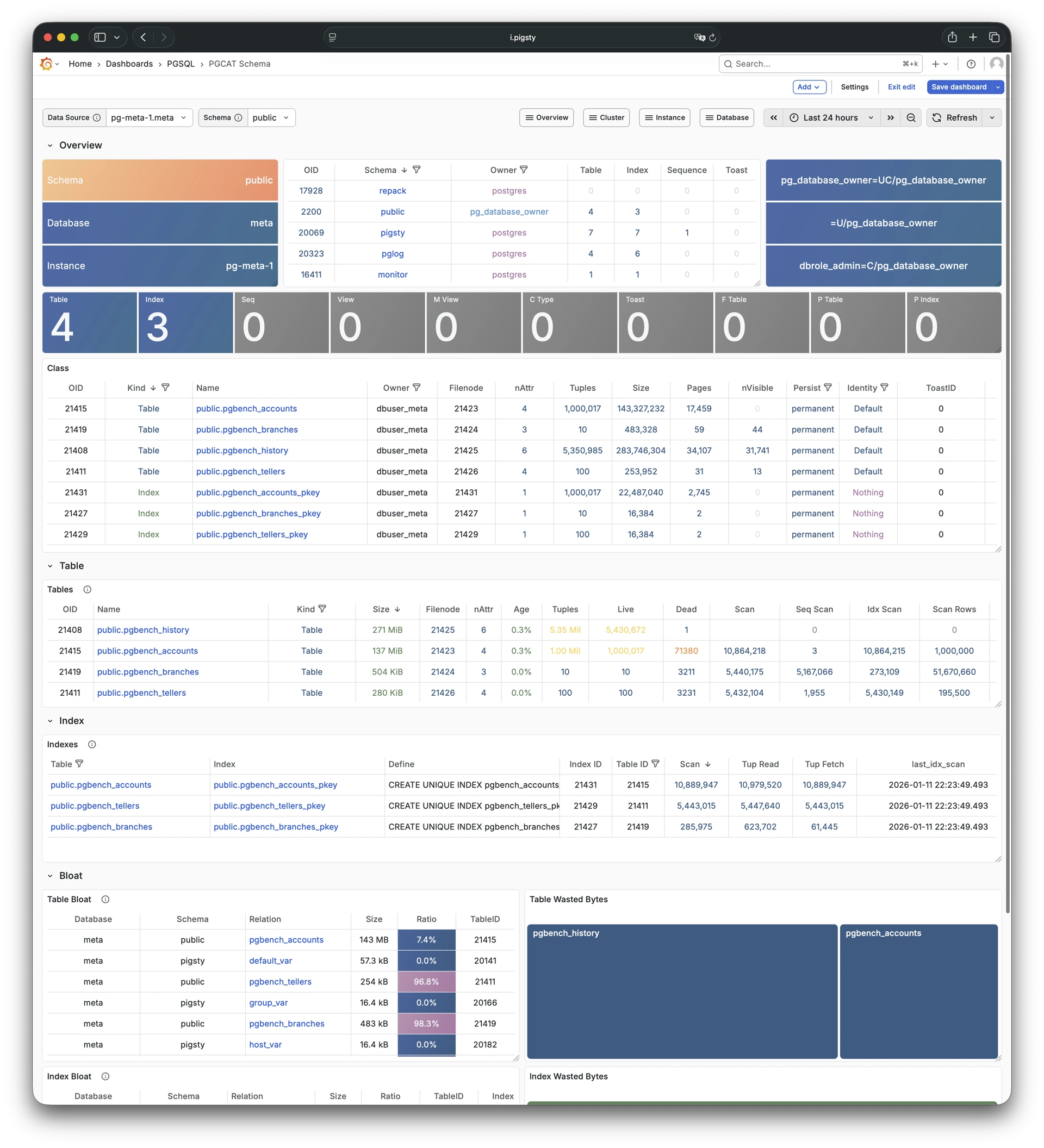

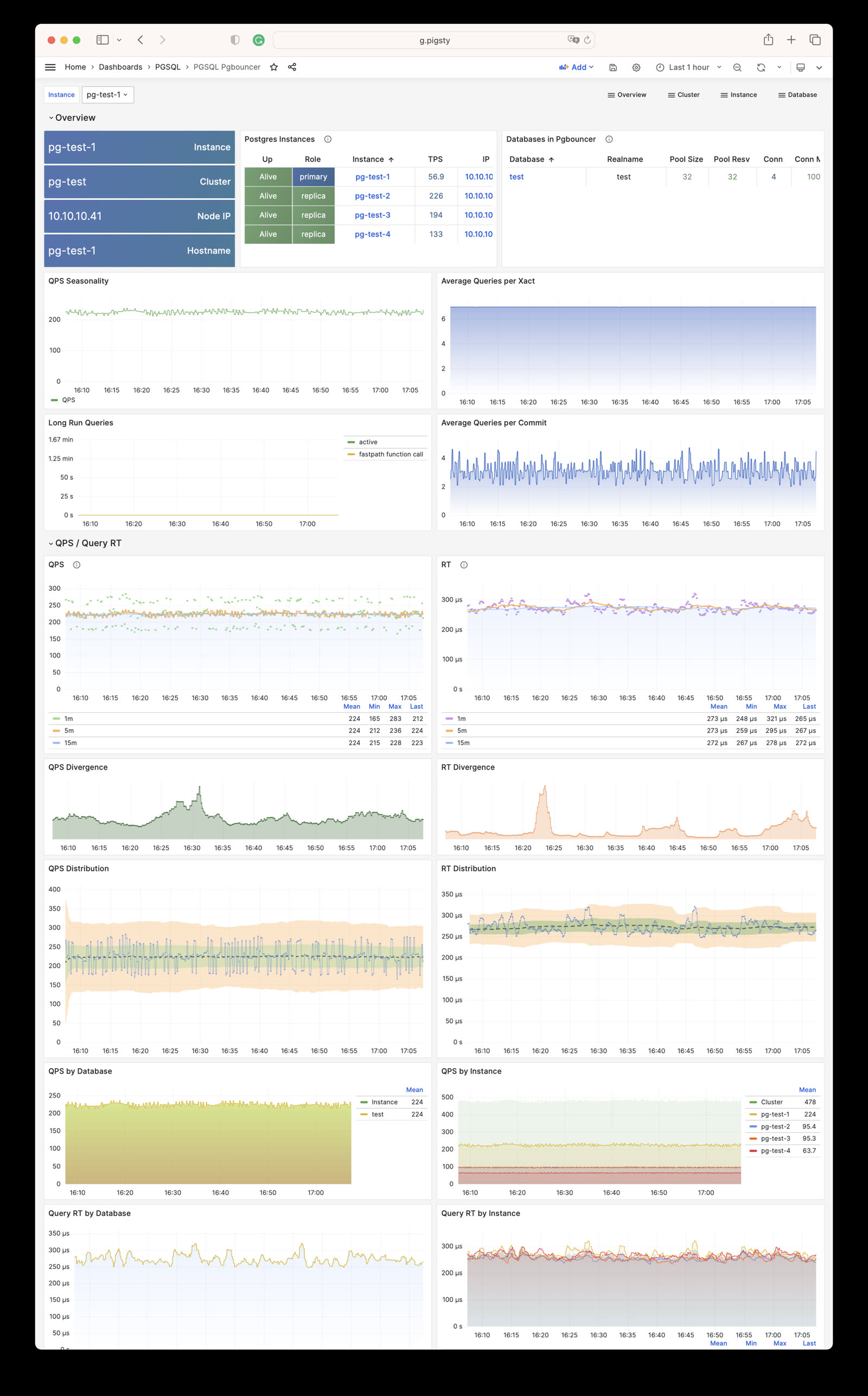

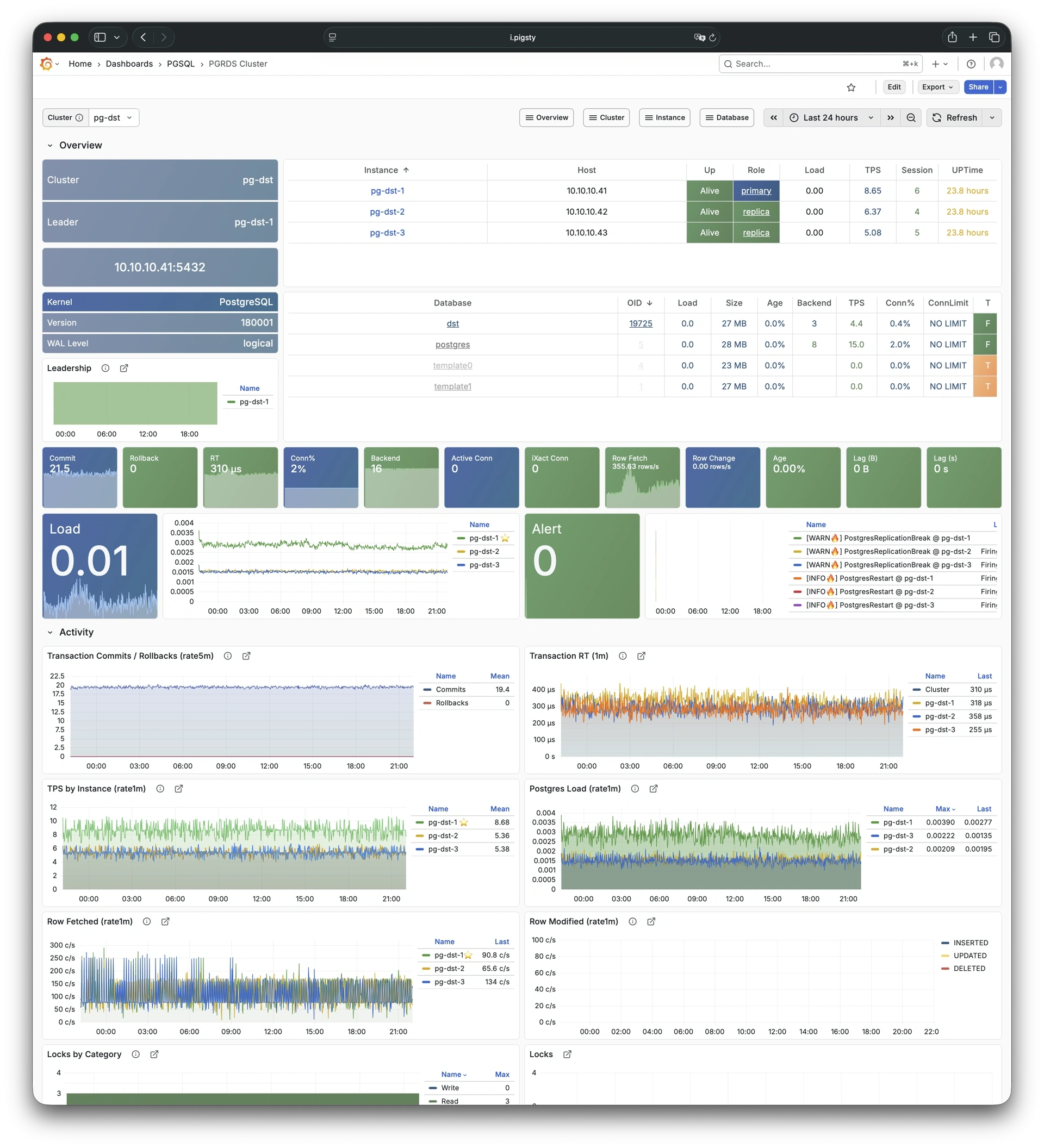

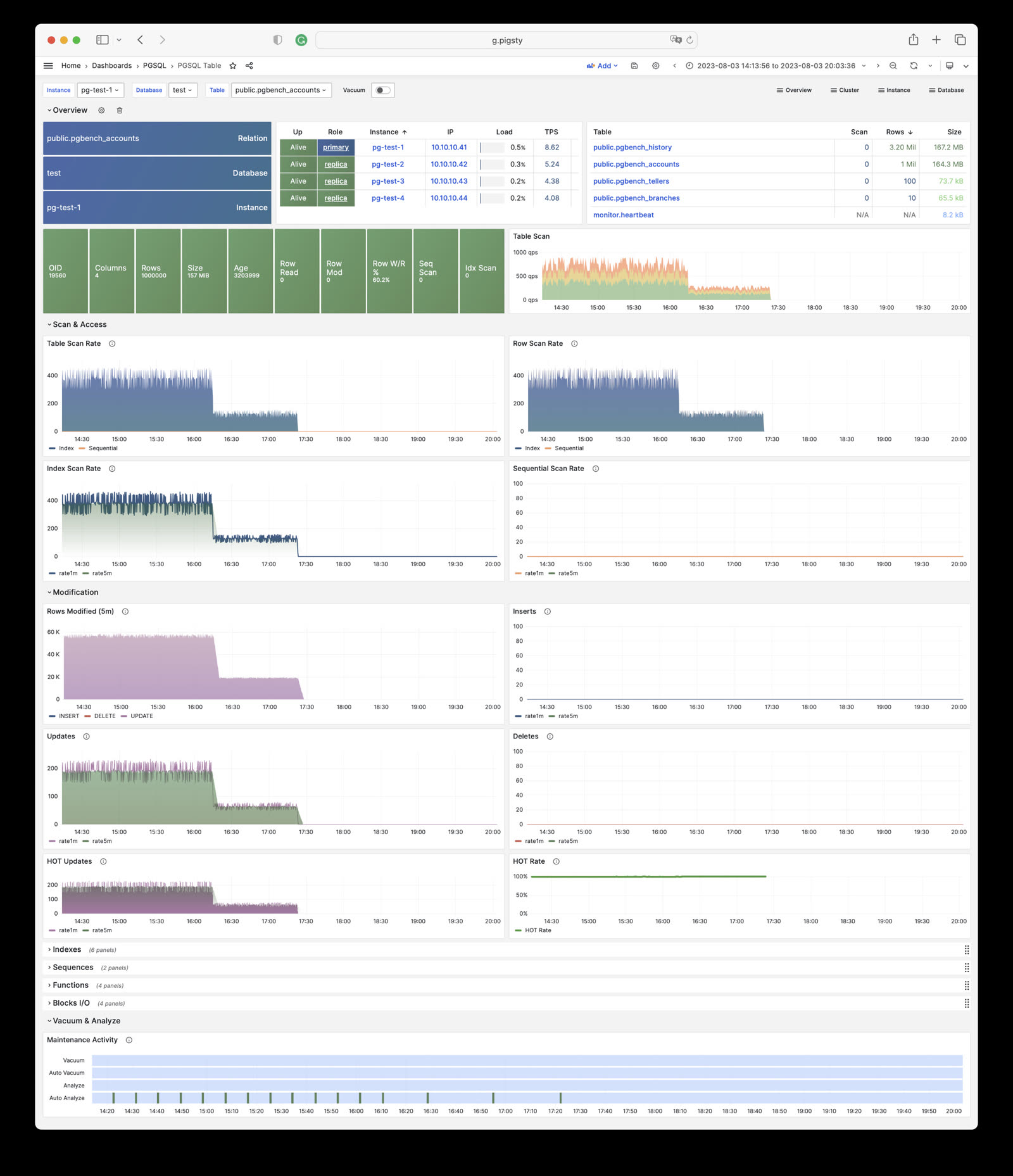

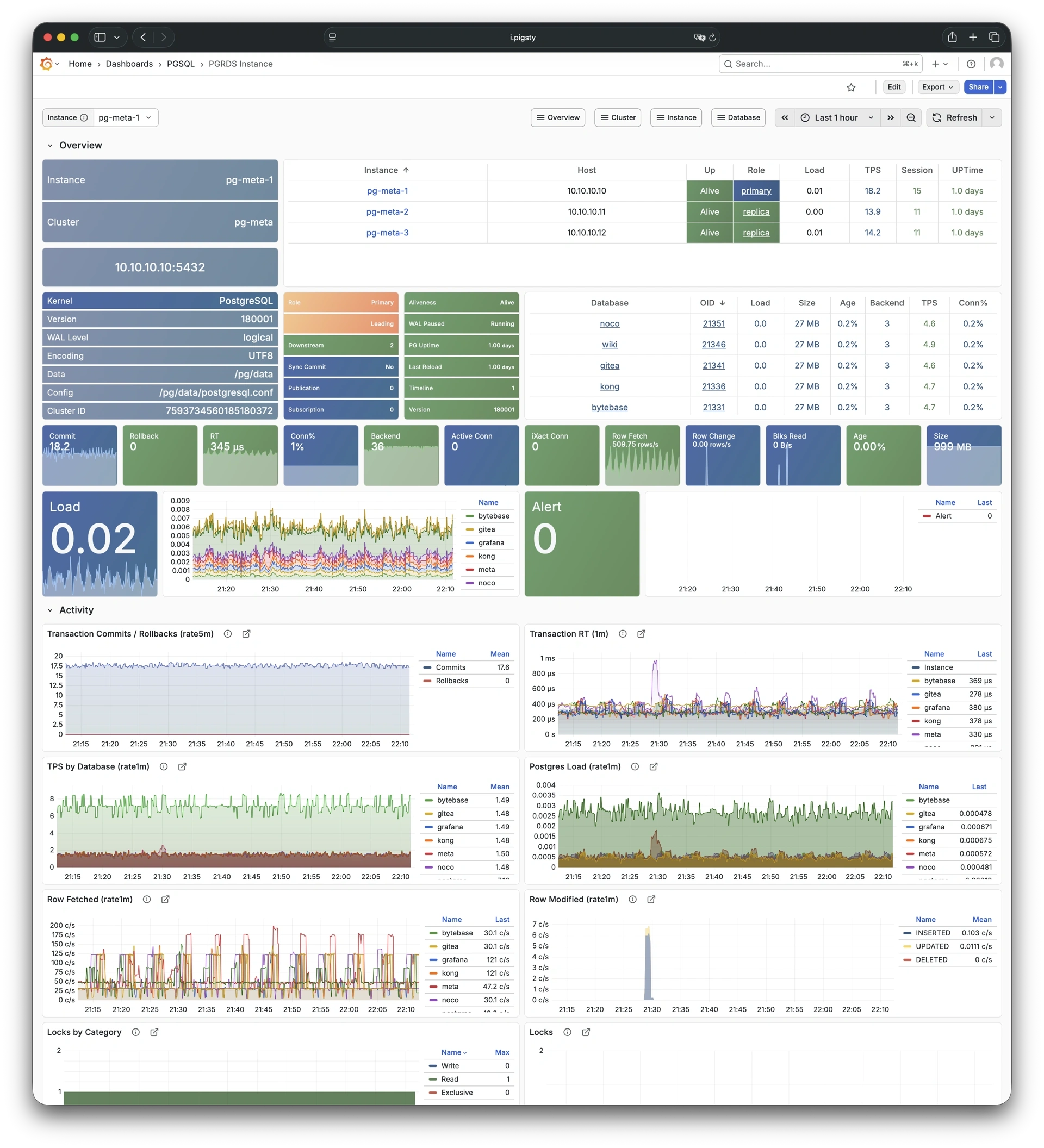

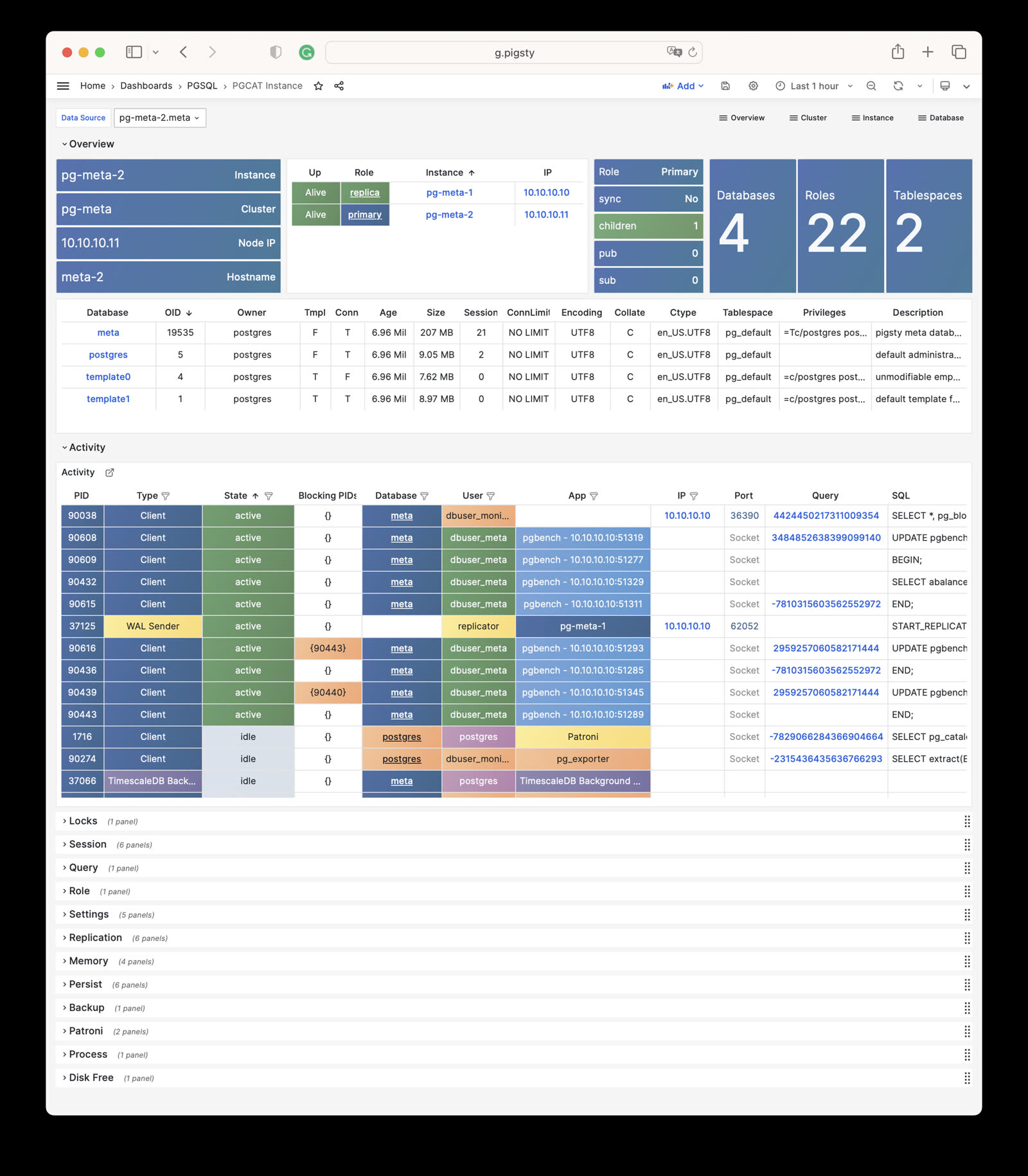

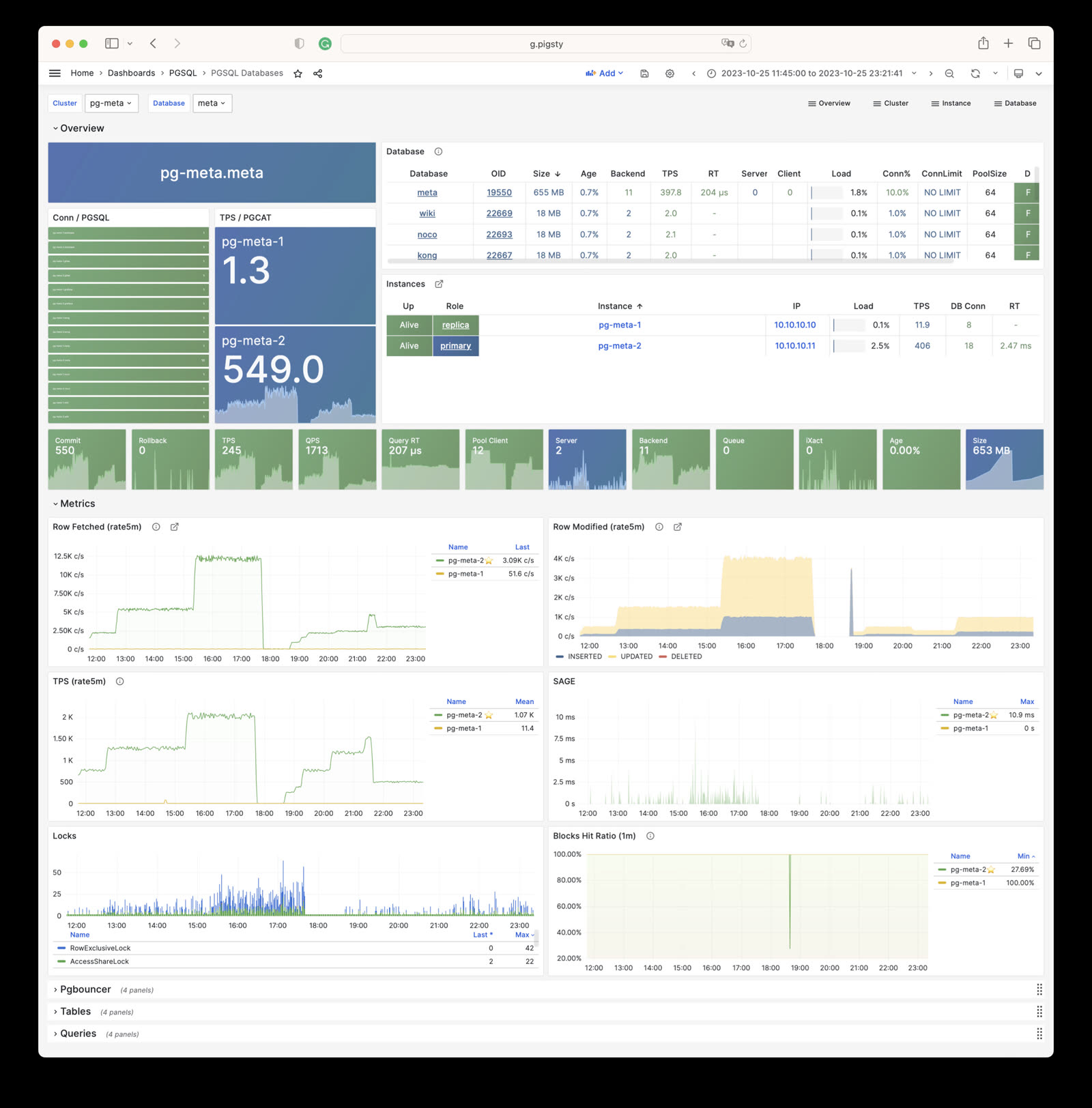

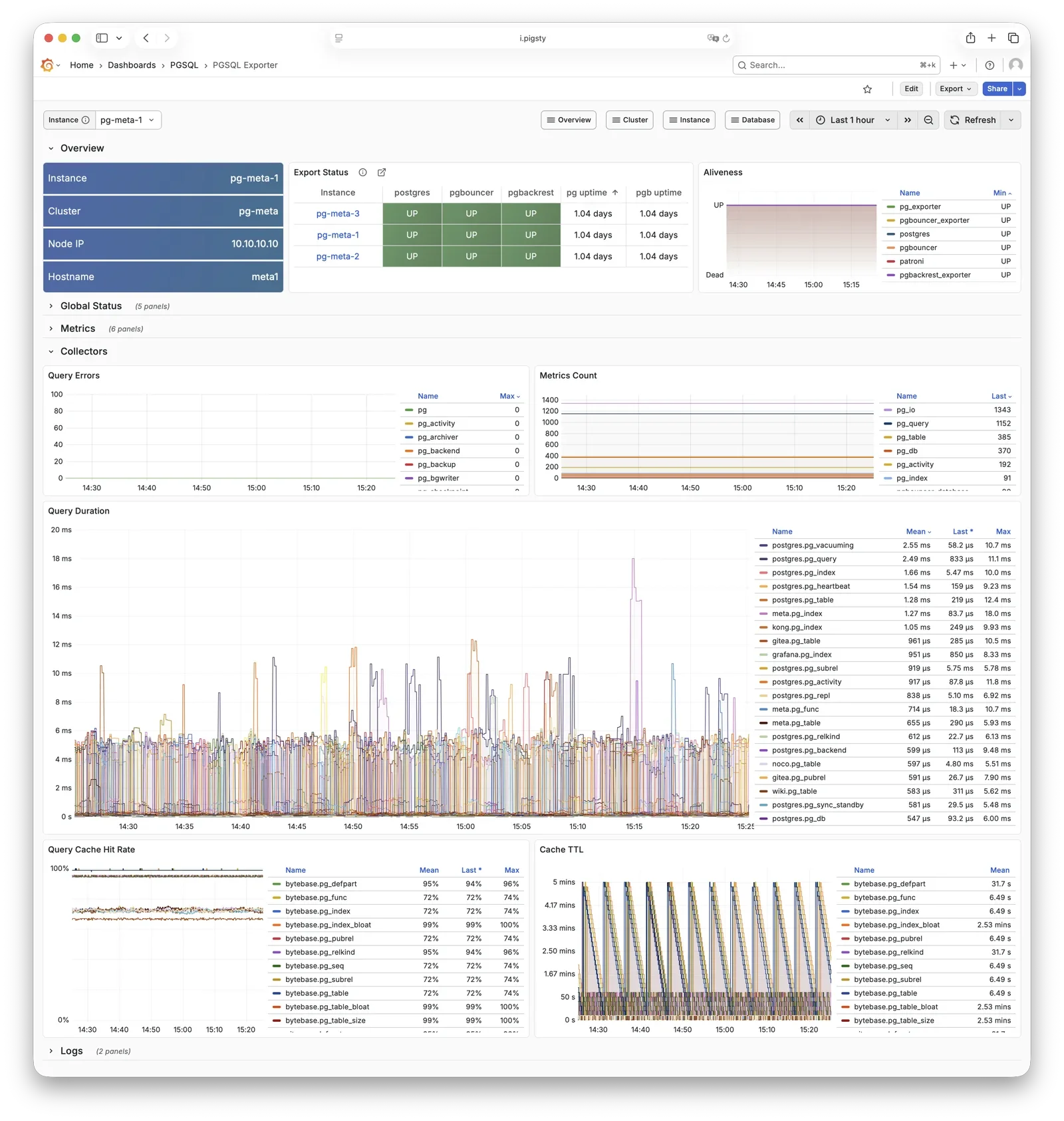

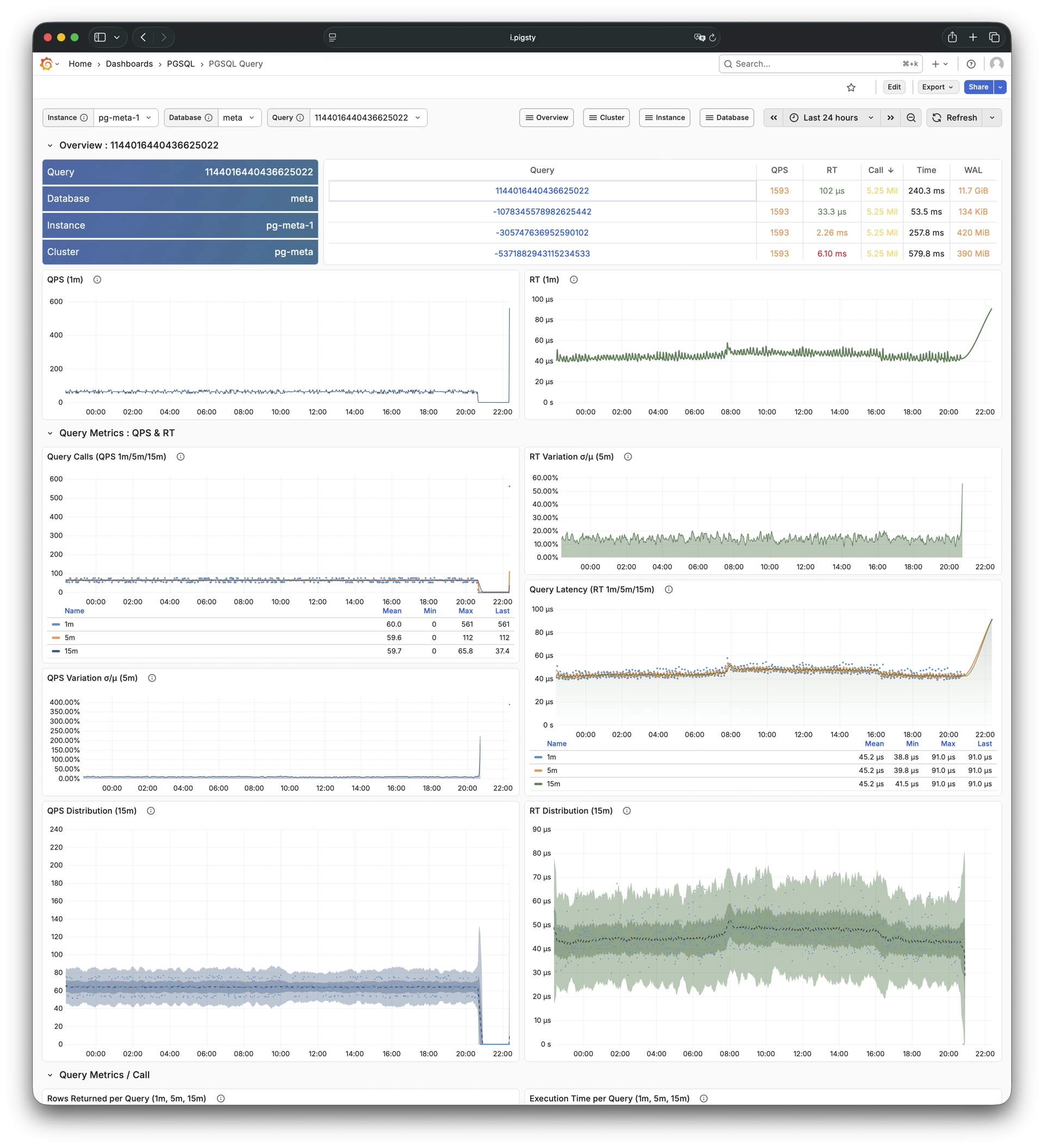

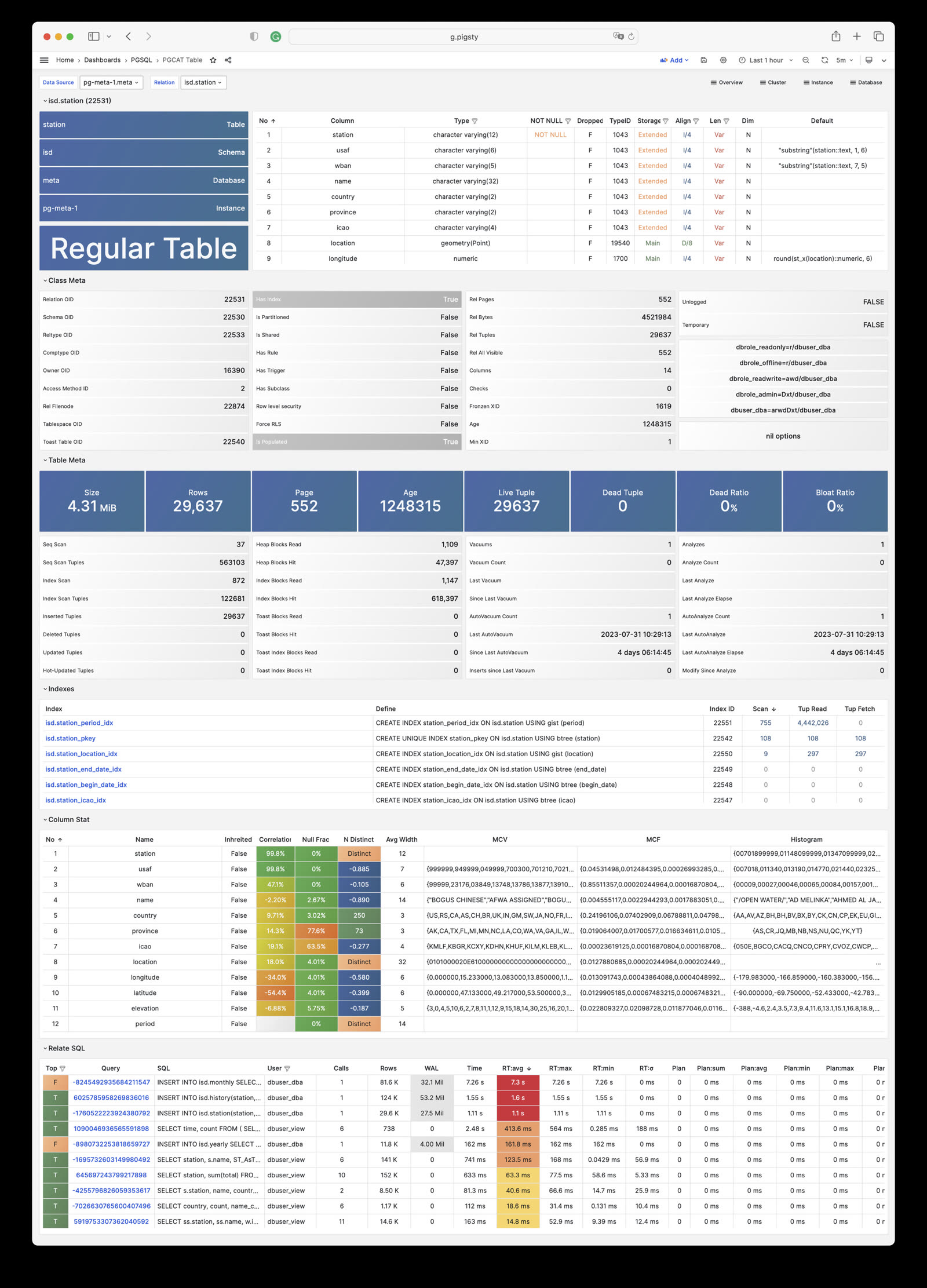

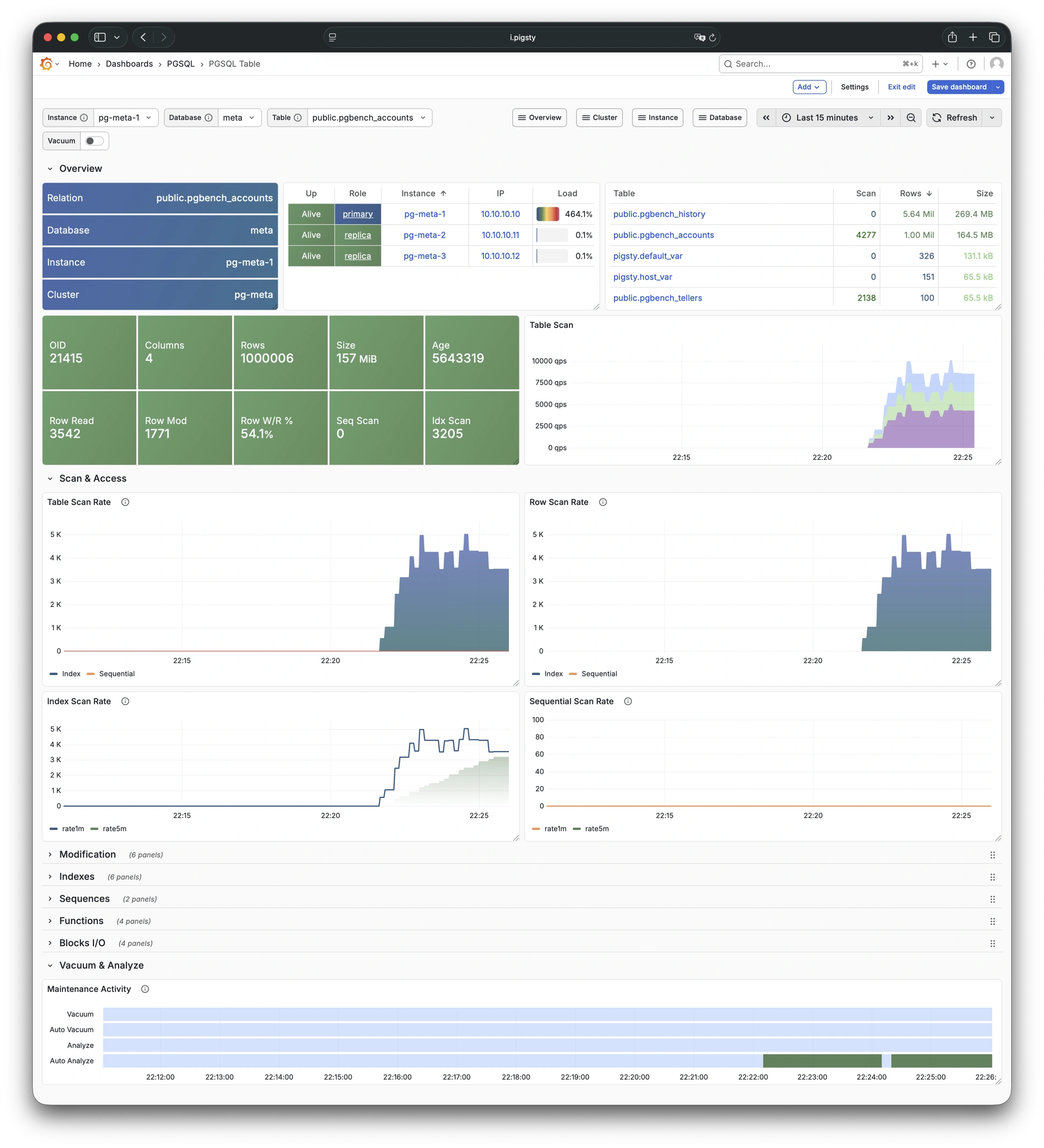

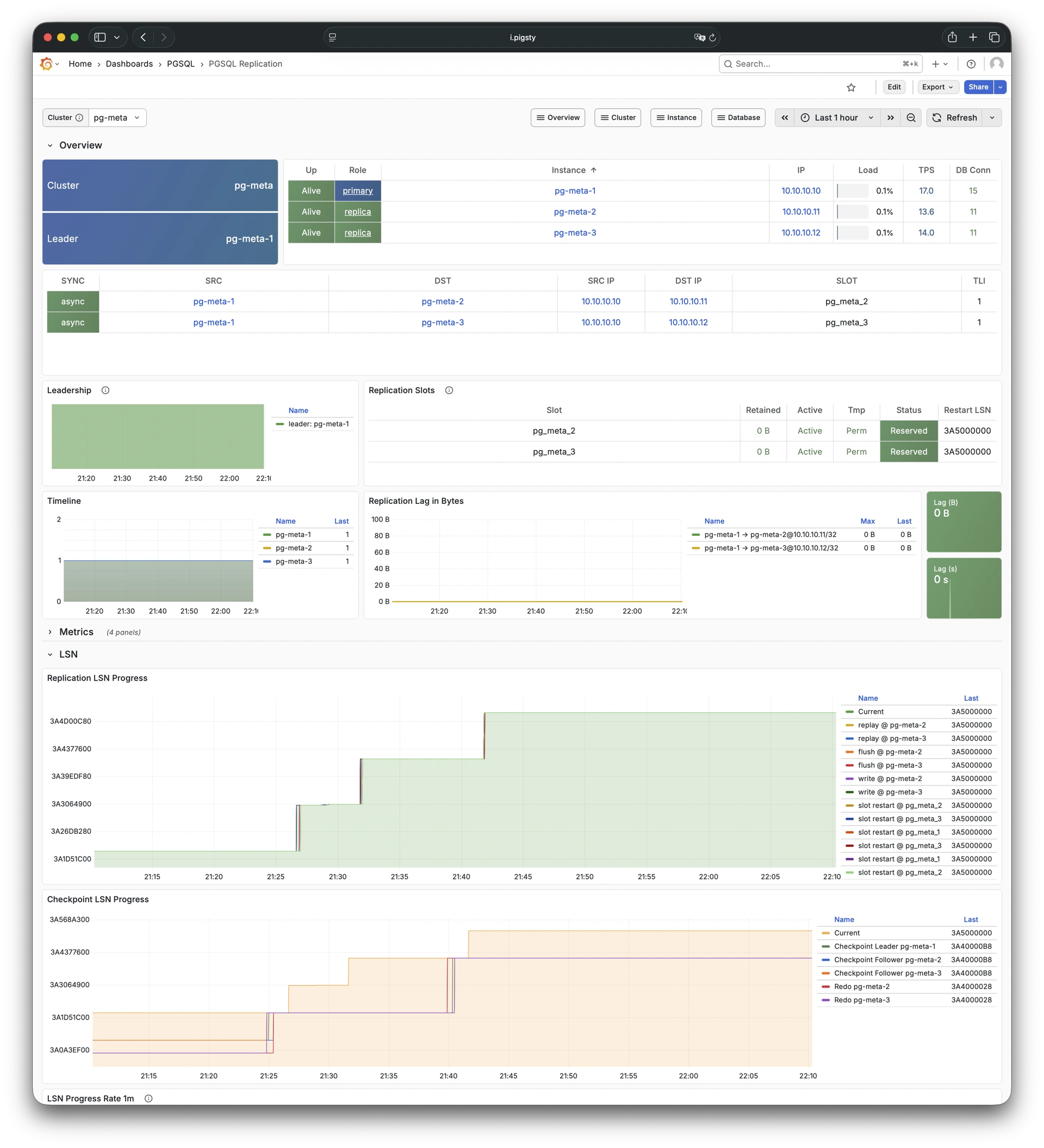

Viewing Monitoring Dashboards

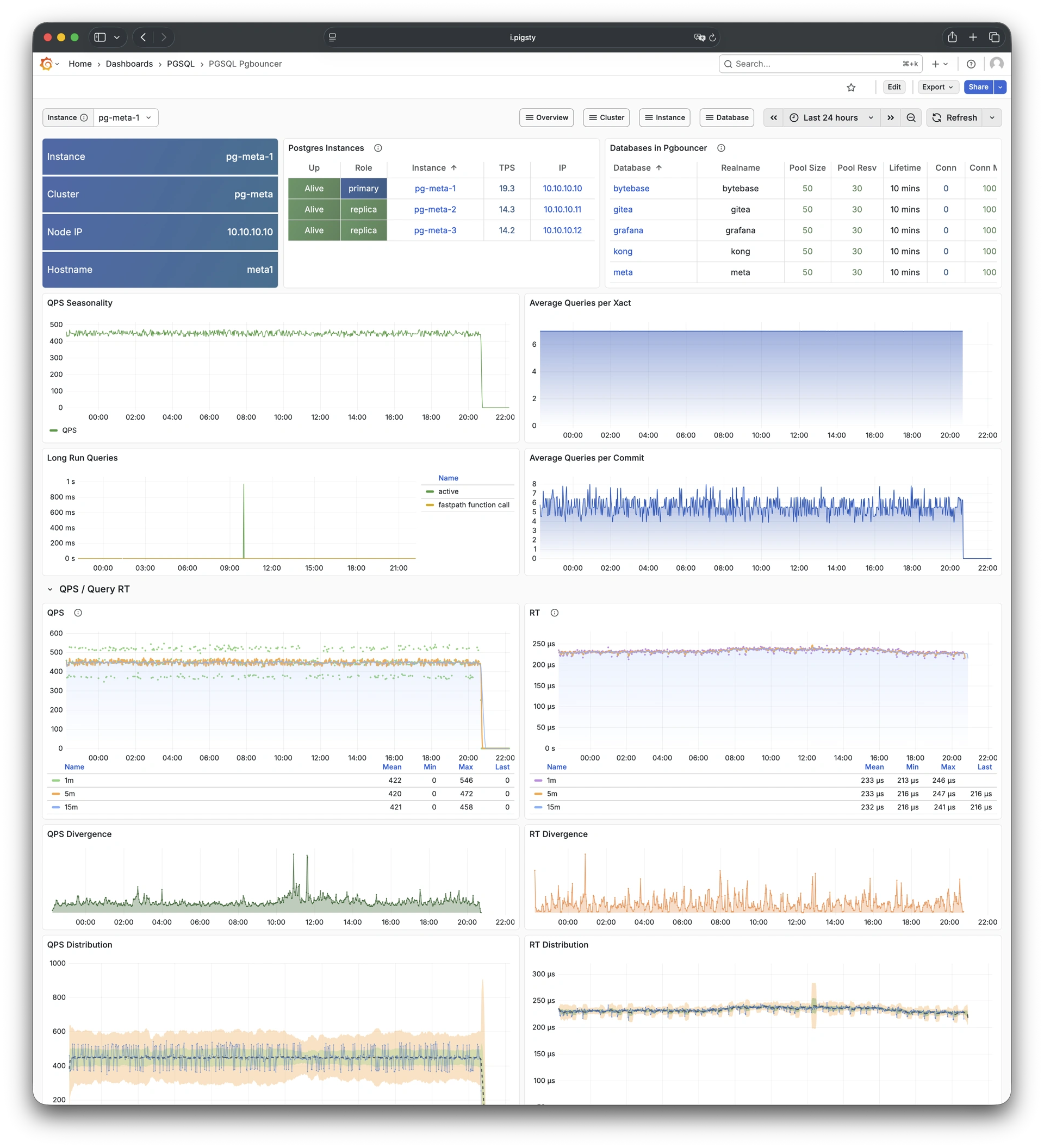

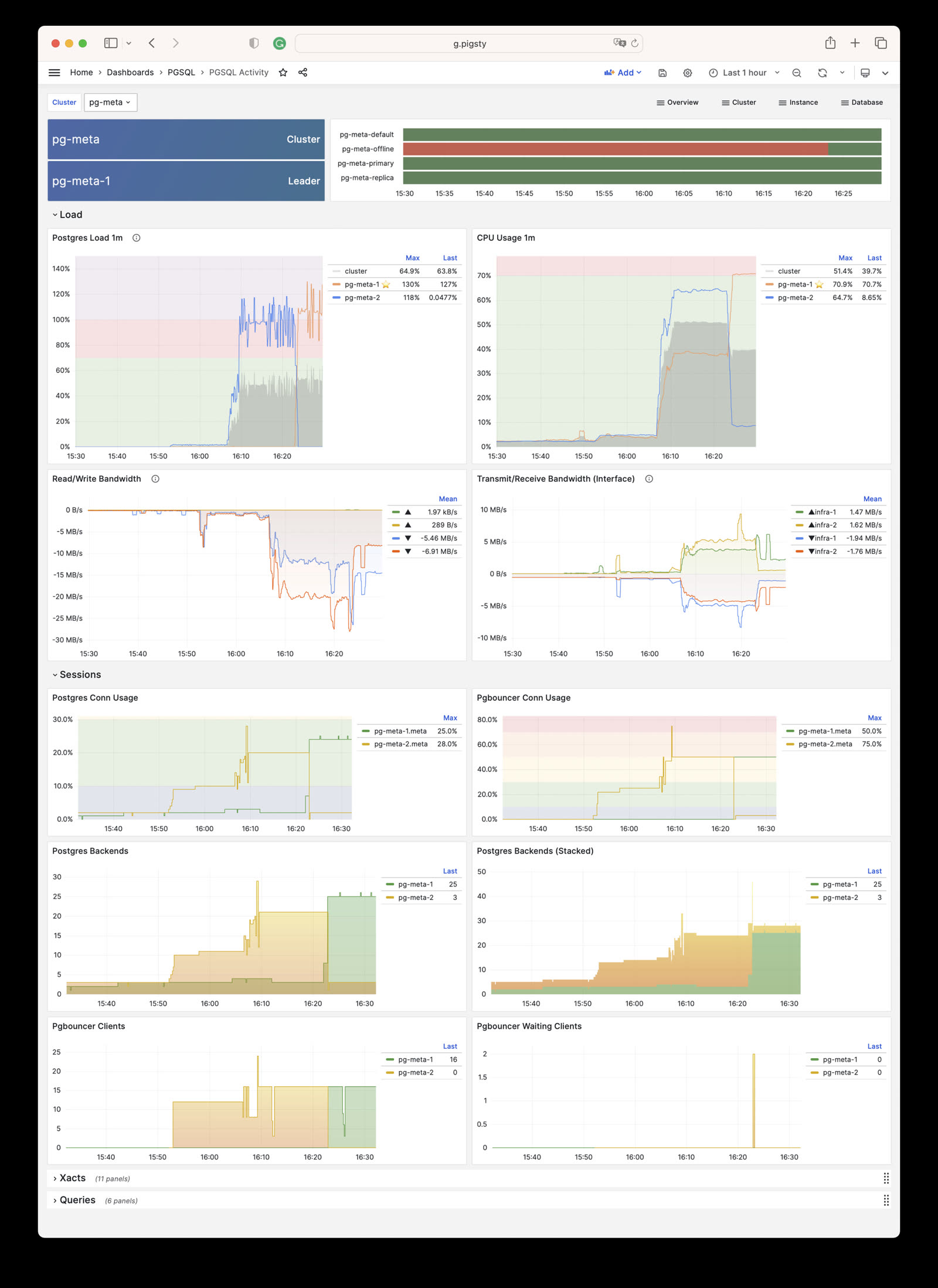

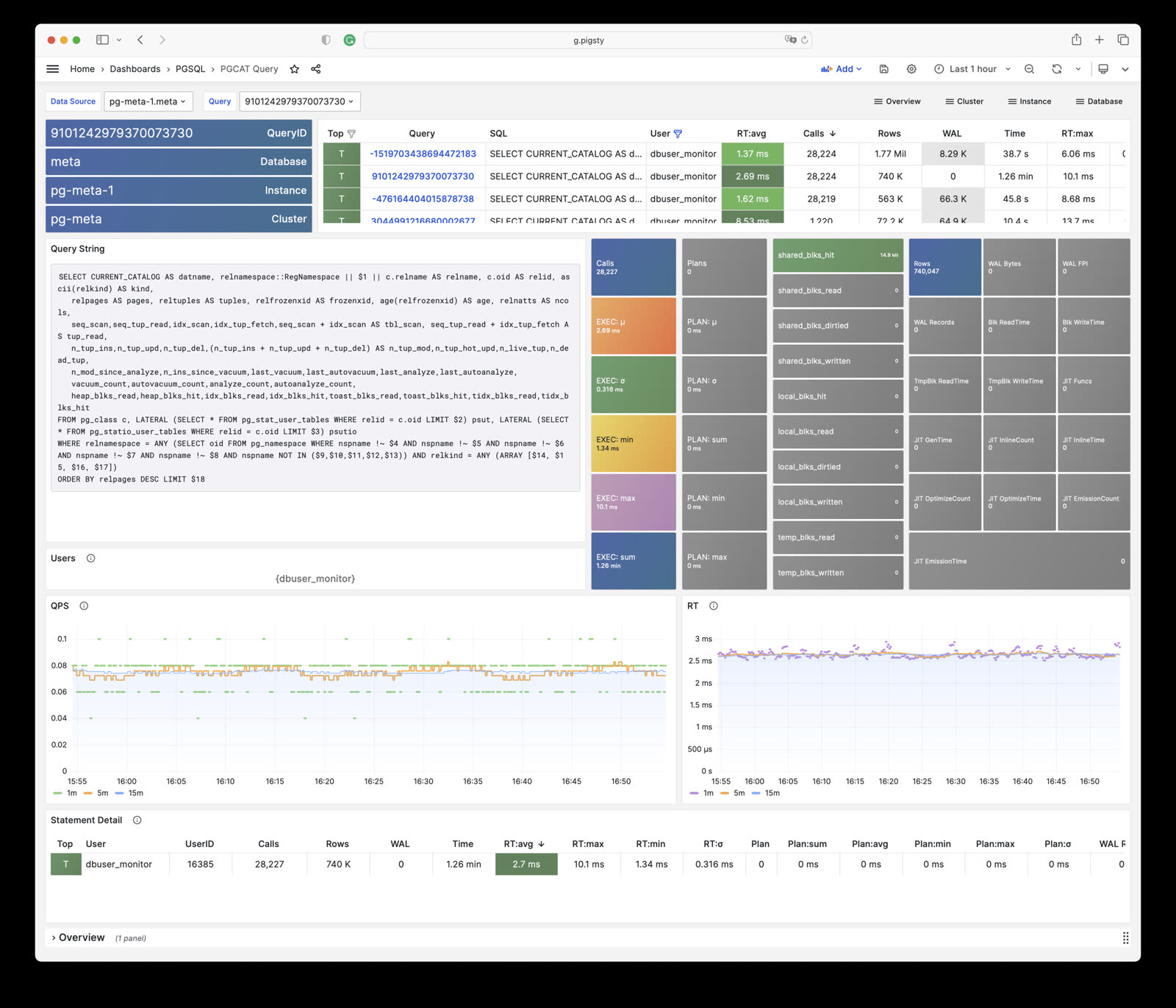

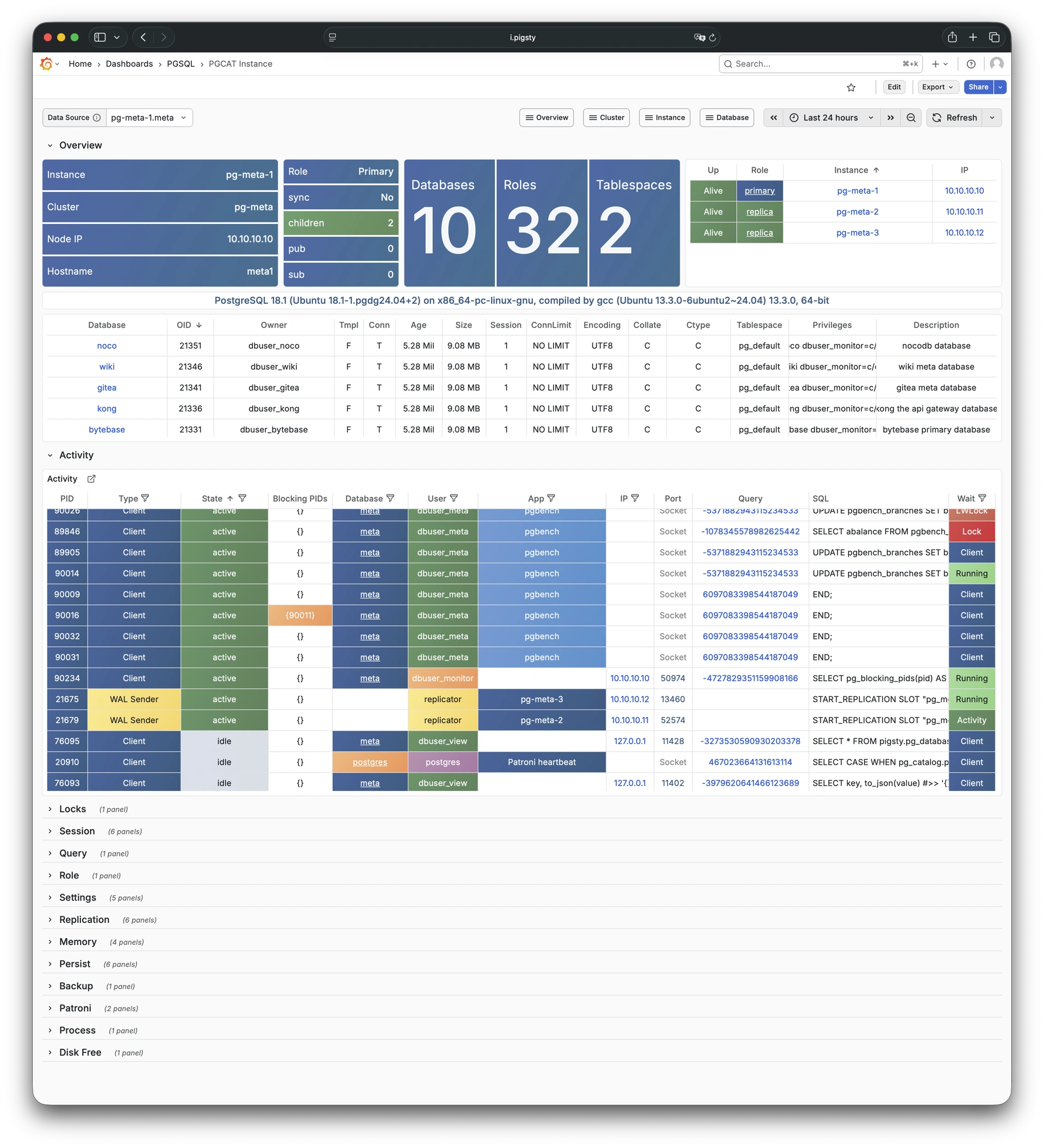

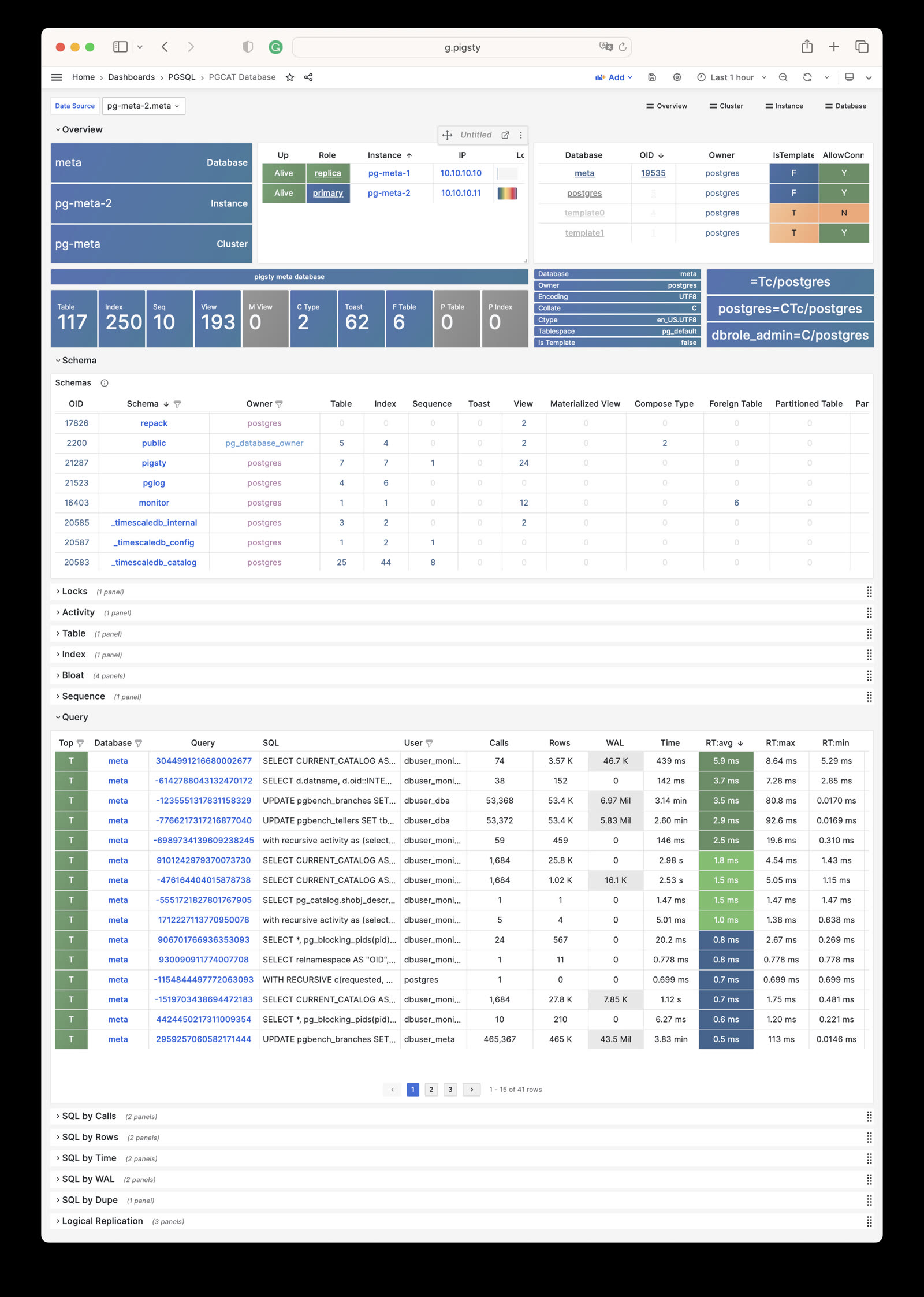

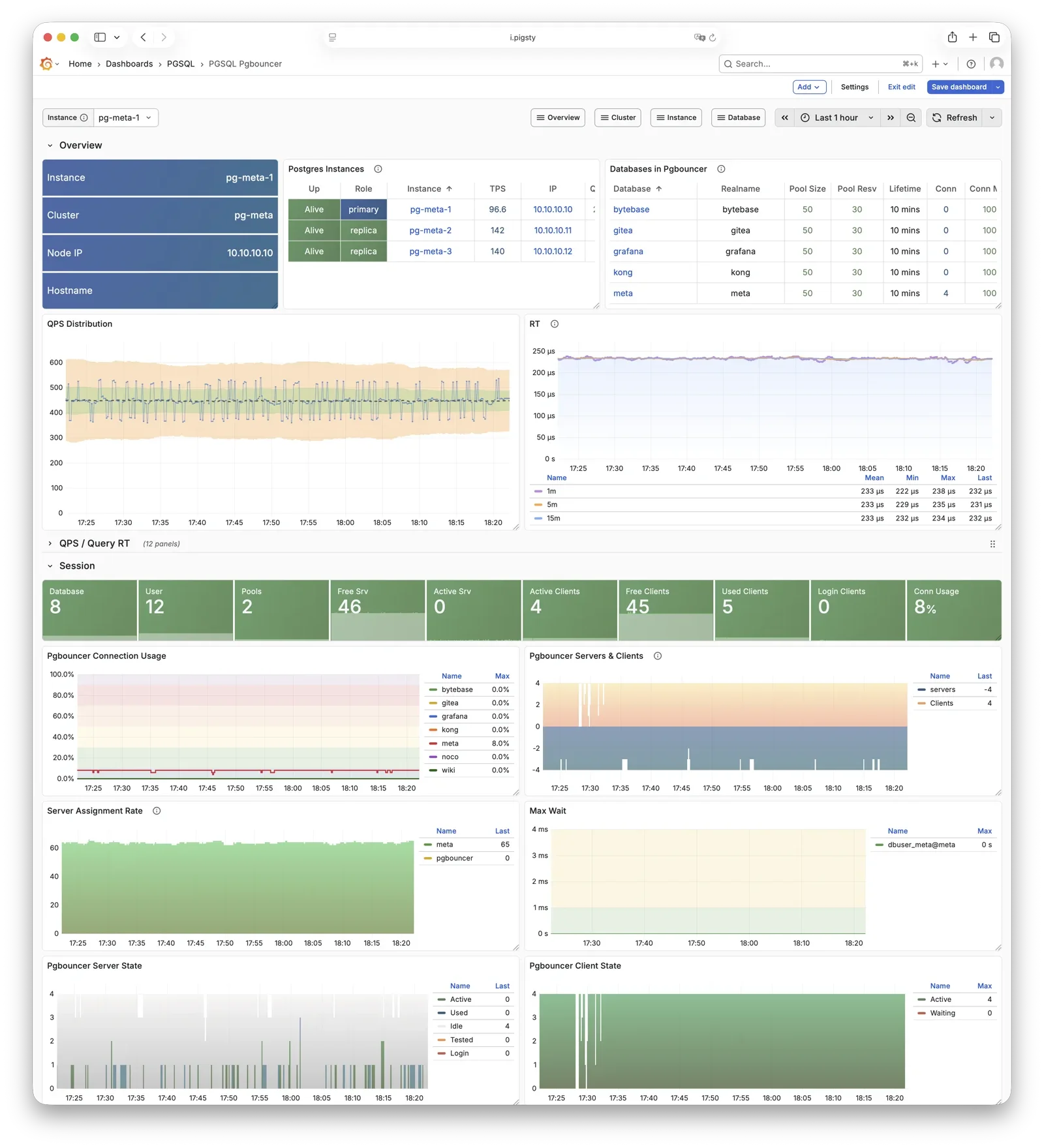

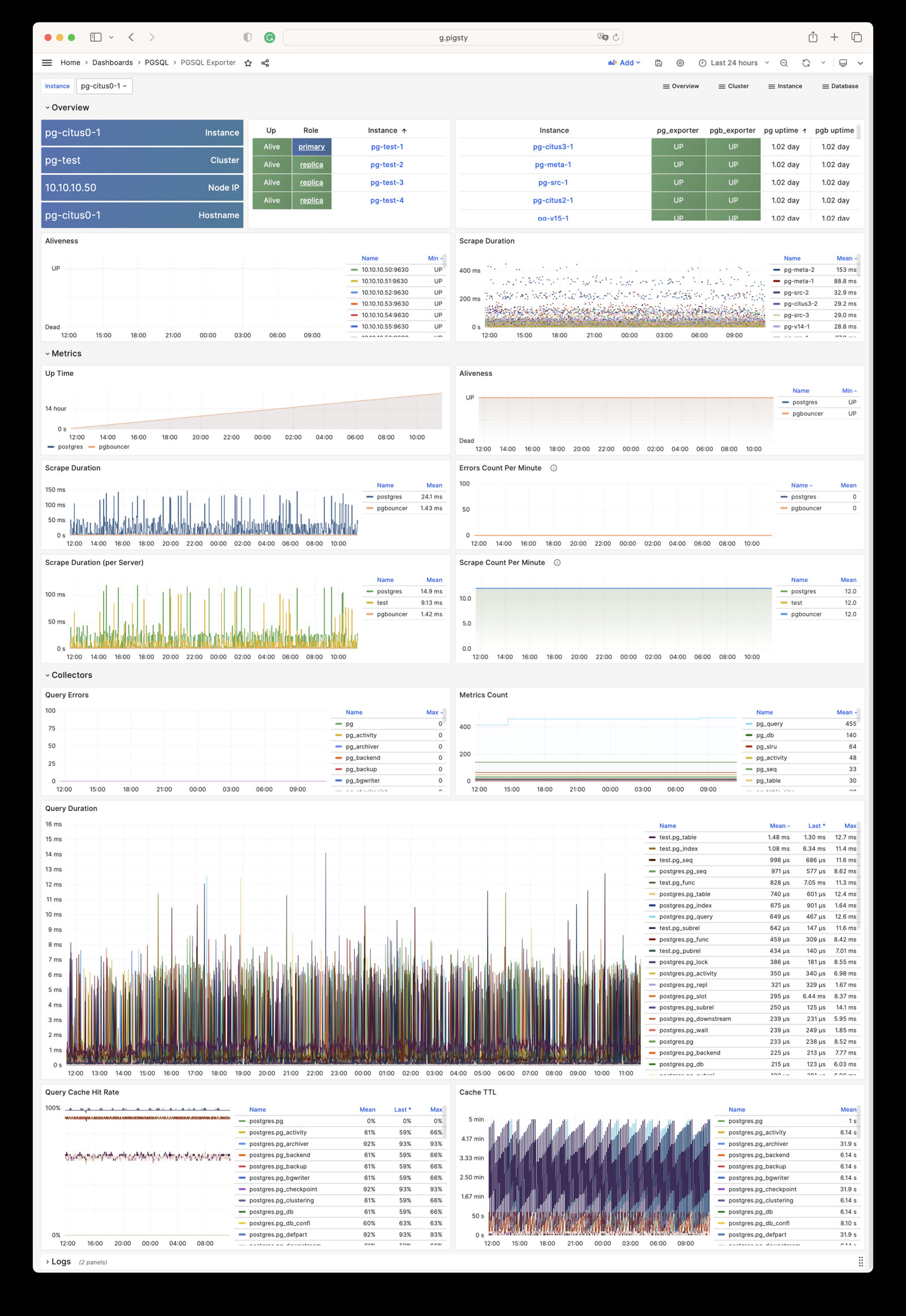

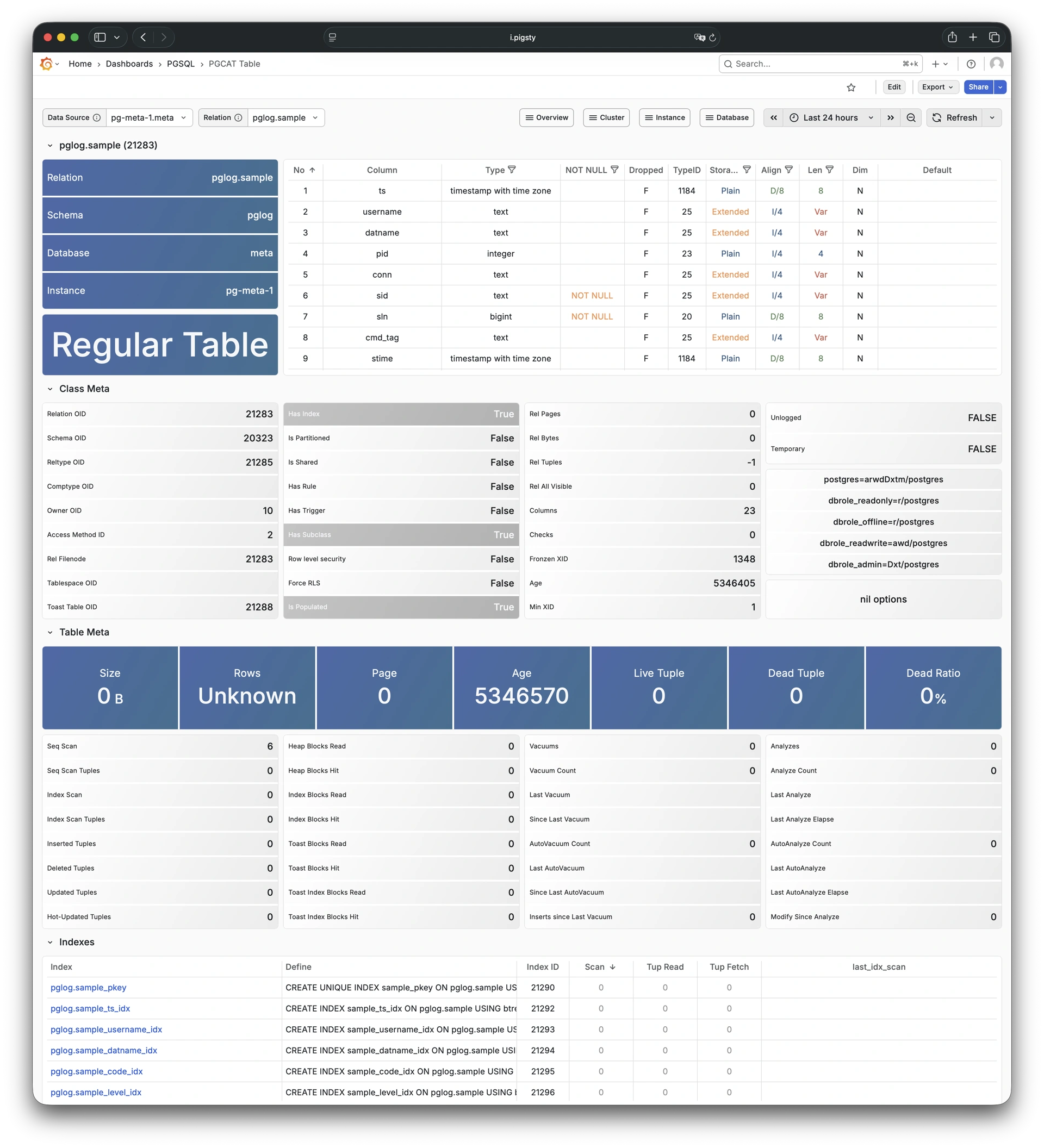

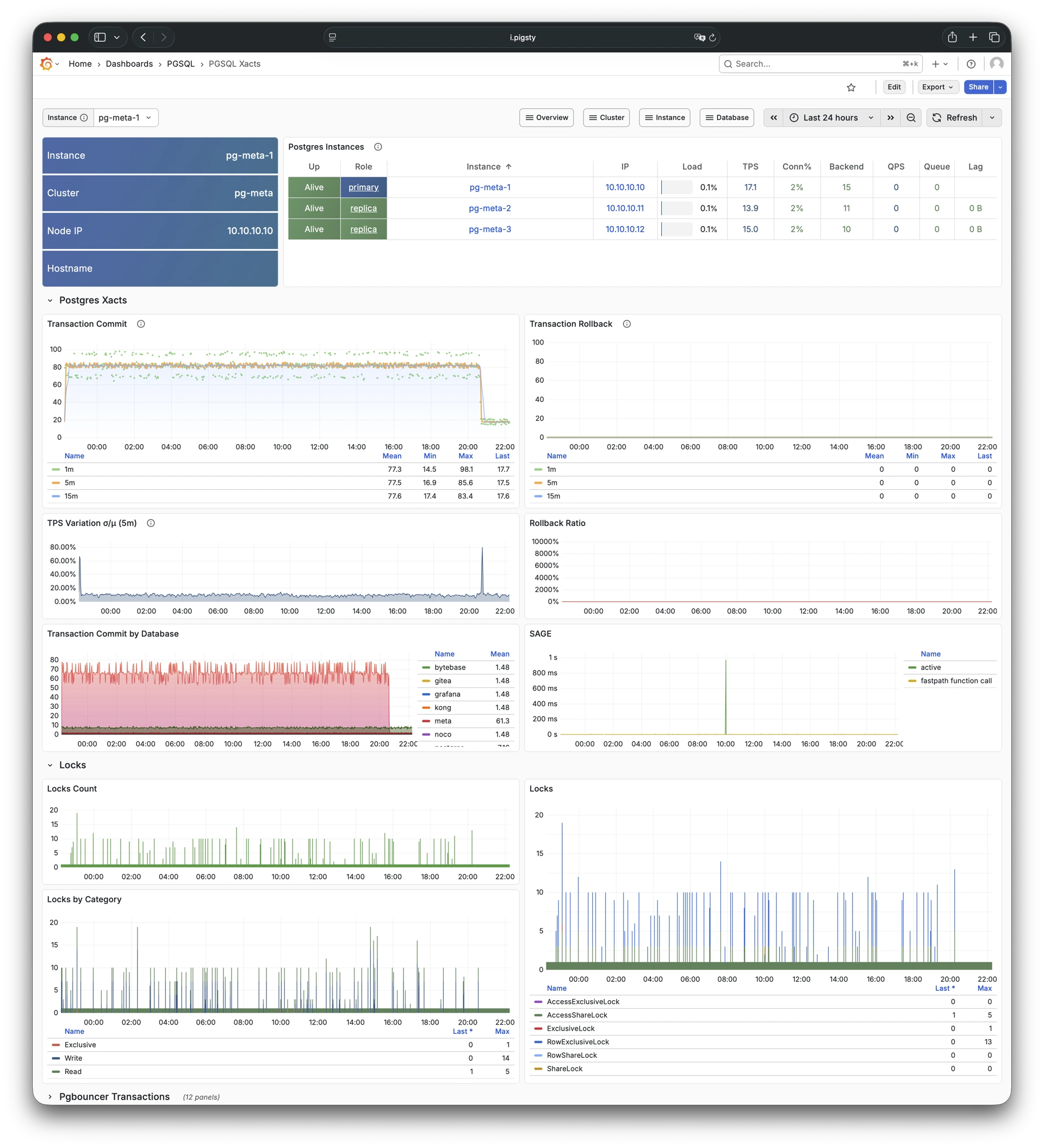

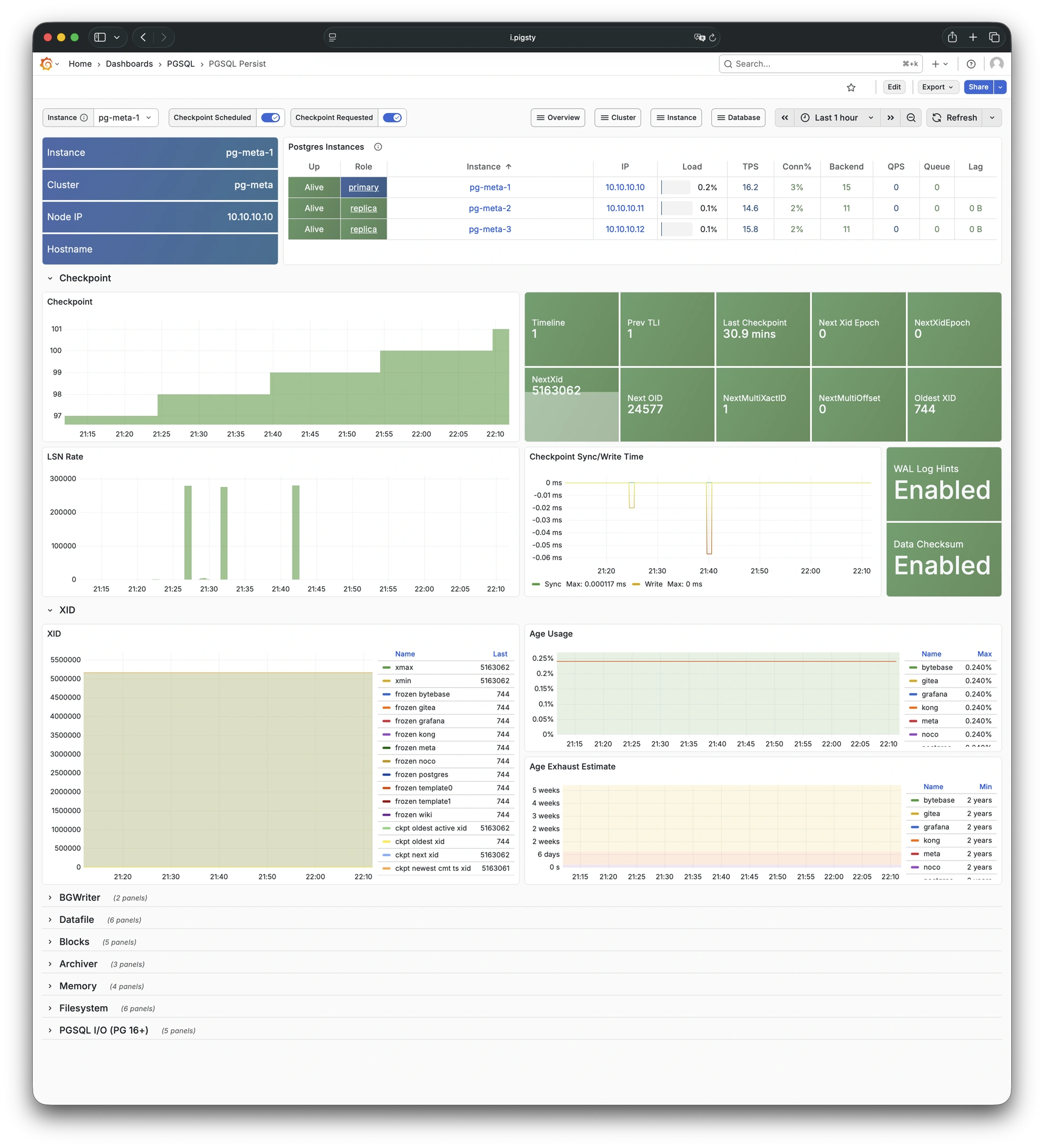

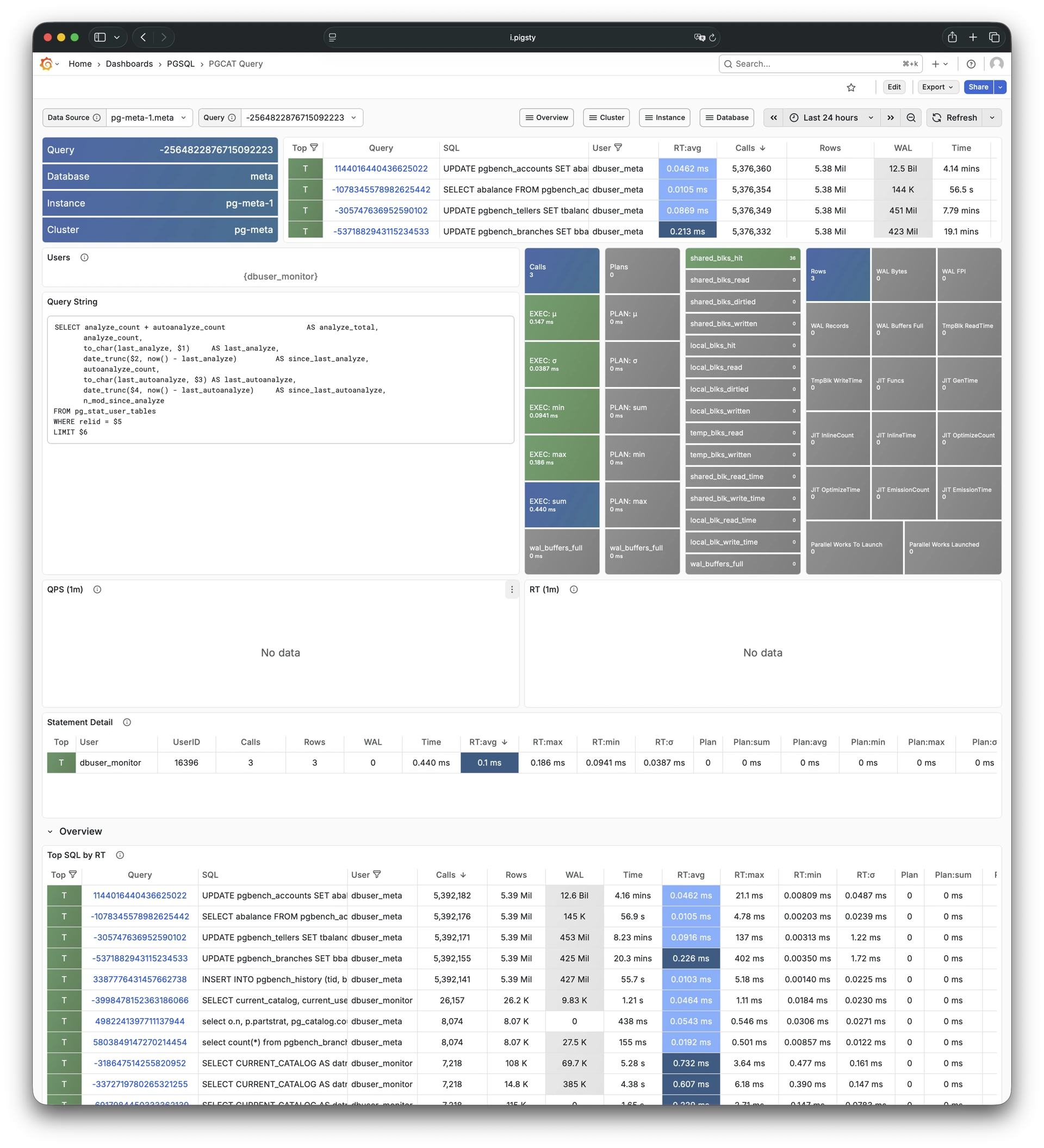

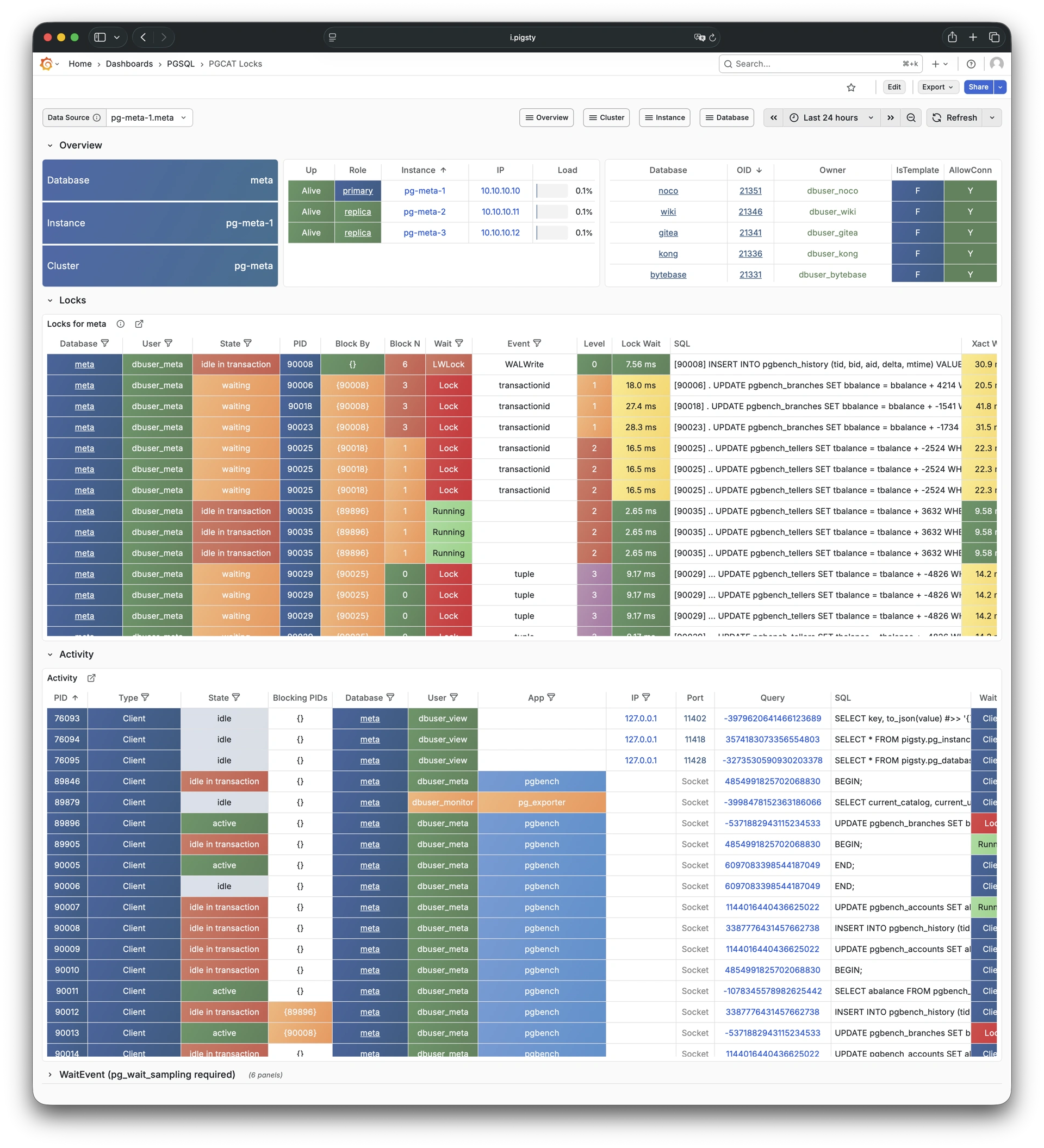

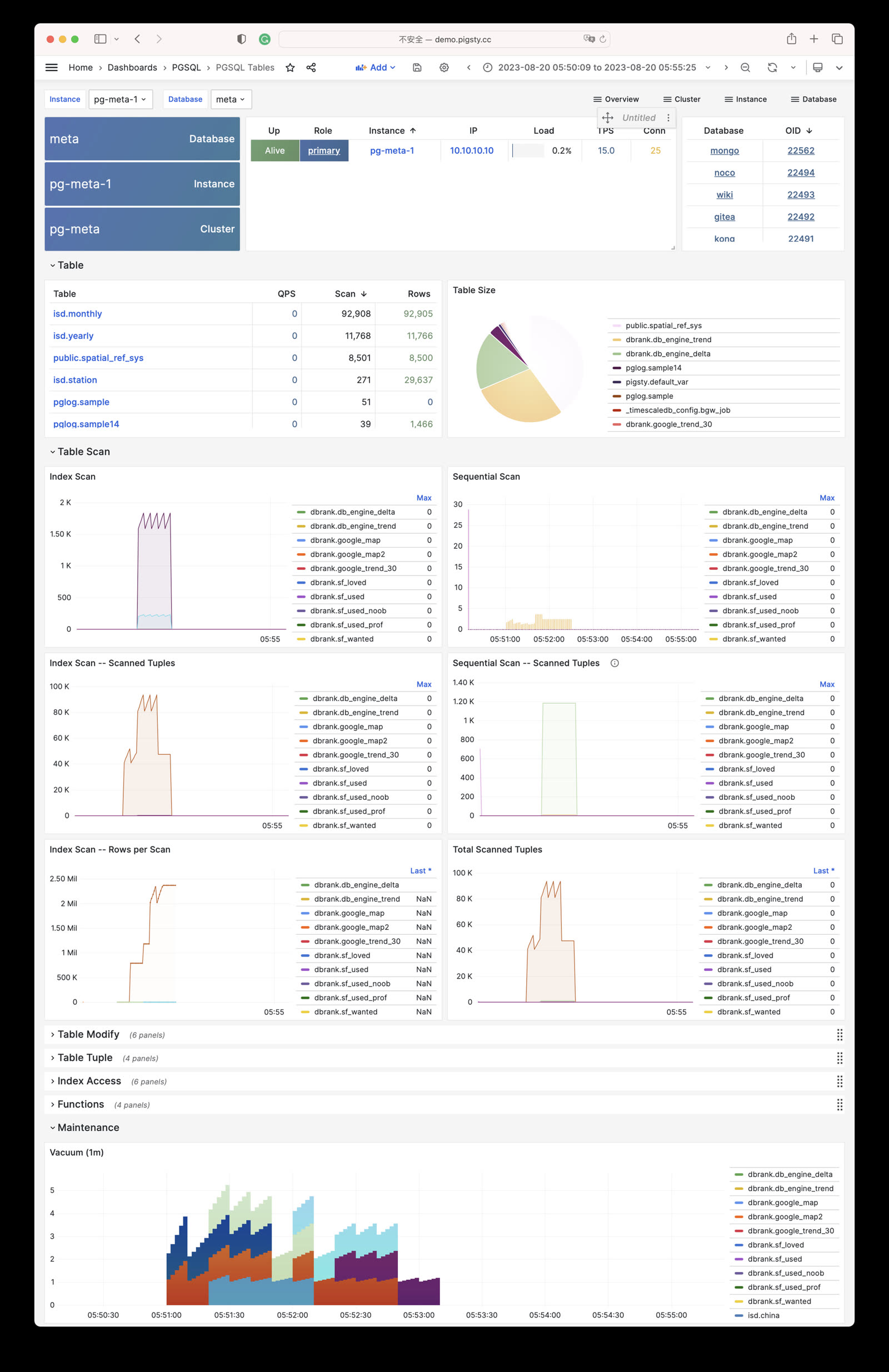

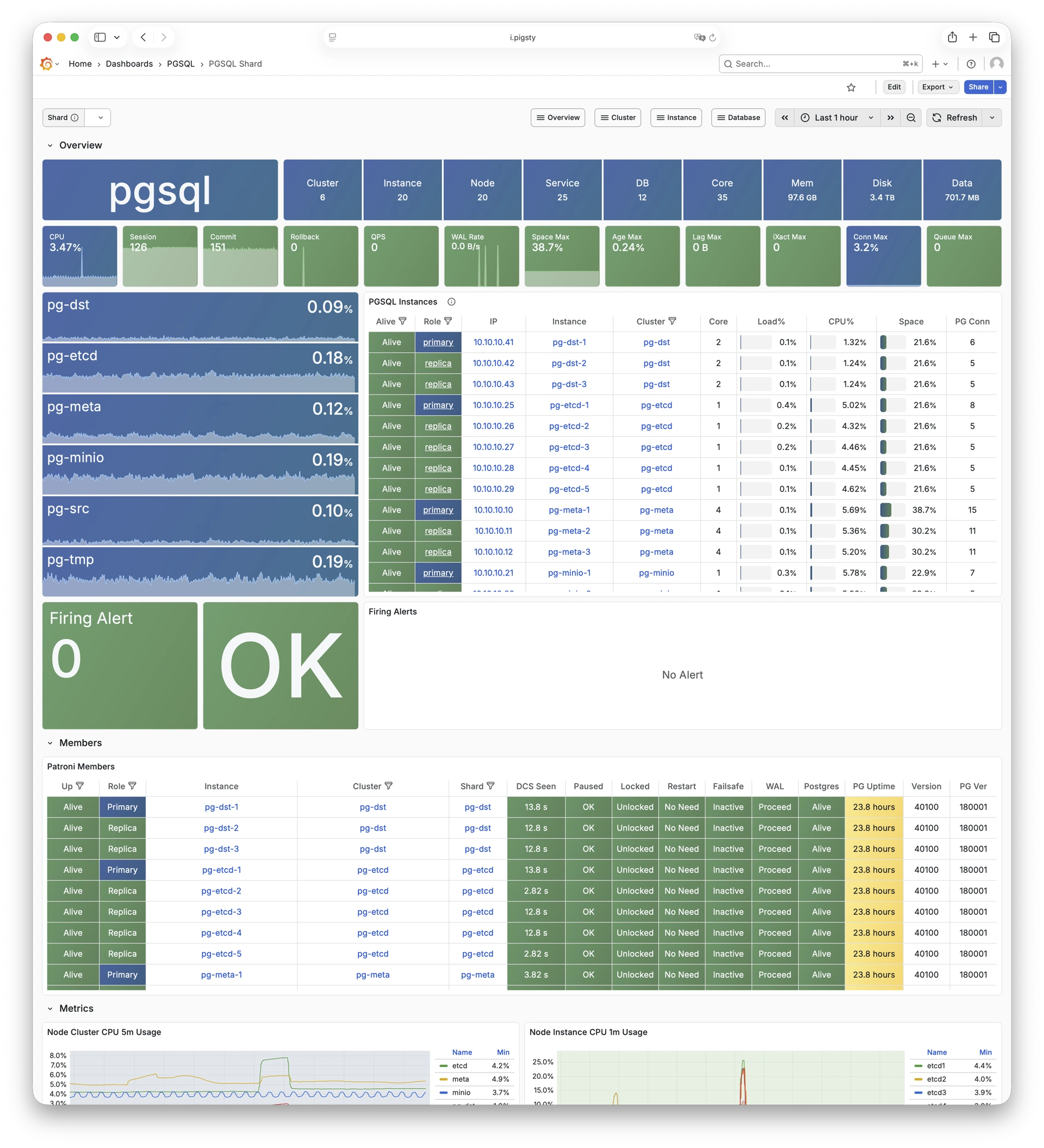

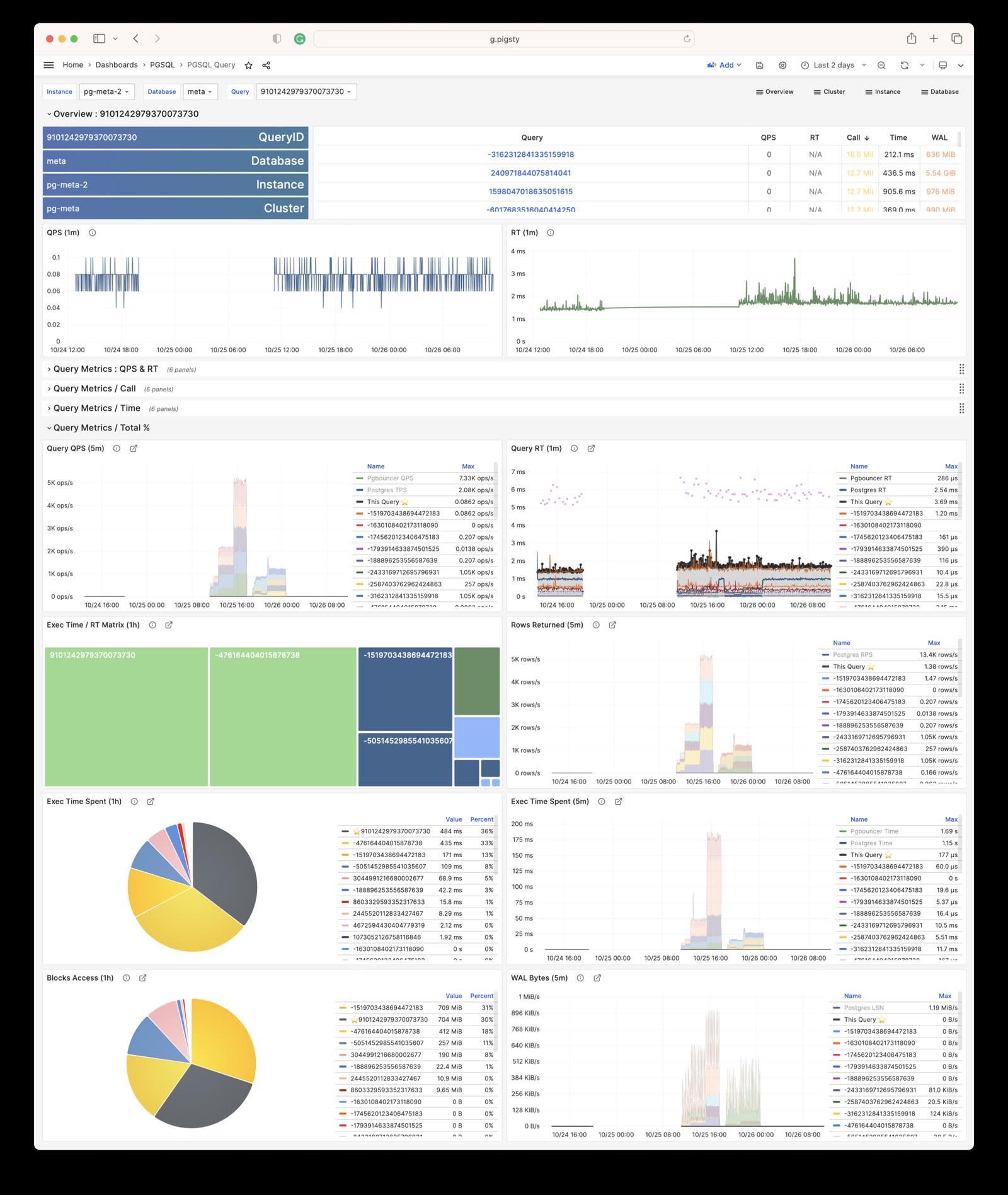

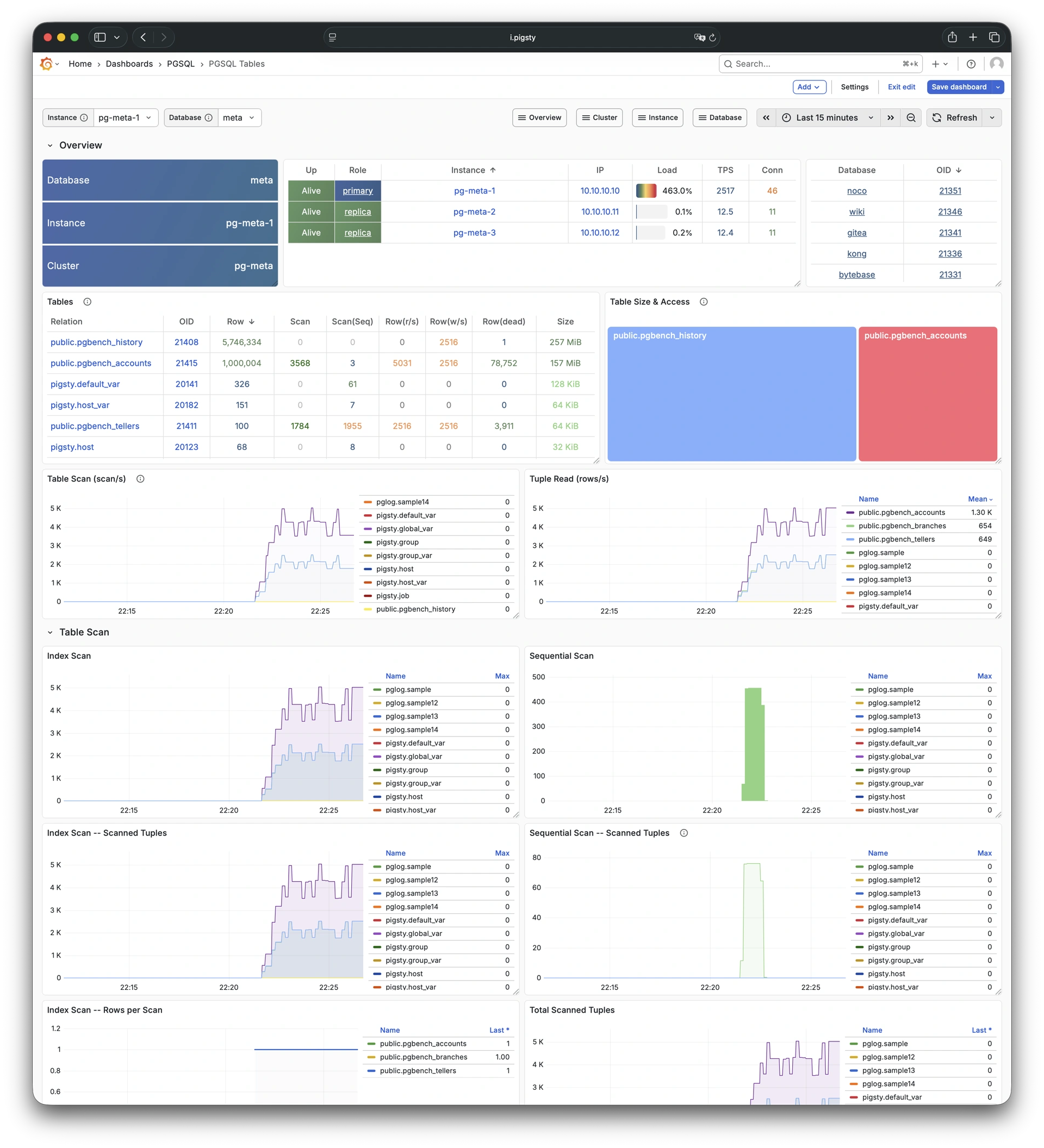

Pigsty provides many PostgreSQL monitoring dashboards, covering everything from cluster overview to single-table analysis.

We recommend starting with PGSQL Overview. Many elements in the dashboards are clickable, allowing you to drill down layer by layer to view details of each cluster, instance, database, and even internal database objects like tables, indexes, and functions.

Trying Extensions

One of PostgreSQL’s most powerful features is its extension ecosystem. Extensions can add new data types, functions, index methods, and more to the database.

Pigsty provides 575 extensions covering 16 major categories including time-series, geographic, vector, and full-text search, installable with one click. Start with three commonly used extensions, then install more extensions such as timescaledb as needed.

• postgis: Geographic information system for processing maps and location data (installed by default)
• pgvector: Vector database supporting AI embedding vector similarity search (installed by default)
• timescaledb: Time-series database for efficient storage and querying of time-series data (optional install)

\dx                            -- psql meta command, list installed extensions
TABLE pg_available_extensions; -- Query installed, available extensions
CREATE EXTENSION postgis;      -- Enable postgis extension

Next Steps

Congratulations on completing the PostgreSQL basics! Next, you can start configuring and customizing your database.

1.5 - Customize Pigsty with Configuration

Besides using the configuration wizard to auto-generate configs, you can write Pigsty config files from scratch. This tutorial guides you through building a complex inventory step by step.

If you define NODE, INFRA, ETCD, MINIO, and PGSQL in the inventory upfront, deploy.yml can deploy this core path in one run—but it hides the details. Optional modules such as Docker, Redis, Kafka, native MySQL, JUICE, and VIBE require their own playbooks.

This doc breaks down all modules and playbooks, showing how to incrementally build from a simple config to a complete deployment.

Minimal Configuration

The simplest valid config only defines the admin_ip variable—the IP address of the node where Pigsty is installed (admin node):

all: { vars: { admin_ip: 10.10.10.10 } }

# Set region: china to use mirrors
all: { vars: { admin_ip: 10.10.10.10, region: china } }

This config deploys nothing, but running ./deploy.yml generates a self-signed CA in files/pki/ca for issuing certificates.

For convenience, you can also set region to specify which region’s software mirrors to use (default, china, europe).

Add Nodes

Pigsty’s NODE module manages cluster nodes. Any IP address in the inventory will be managed by Pigsty with the NODE module installed.

all:  # Remember to replace 10.10.10.10 with your actual IP
  children: { nodes: { hosts: { 10.10.10.10: {} } } }
  vars:
    admin_ip: 10.10.10.10                   # Current node IP
    region: default                         # Default repos
    node_repo_modules: node,pgsql,infra     # Add node, pgsql, infra repos

all:  # Remember to replace 10.10.10.10 with your actual IP
  children: { nodes: { hosts: { 10.10.10.10: {} } } }
  vars:
    admin_ip: 10.10.10.10                 # Current node IP
    region: china                         # Use mirrors
    node_repo_modules: node,pgsql,infra   # Add node, pgsql, infra repos

We added two global parameters: node_repo_modules specifies repos to add; region specifies which region’s mirrors to use.

These parameters enable the node to use correct repositories and install required packages. The NODE module offers many customization options: node names, DNS, repos, packages, NTP, kernel params, tuning templates, monitoring, log collection, etc. Even without changes, the defaults are sufficient.

Run deploy.yml or more precisely node.yml to bring the defined node under Pigsty management.

Add Infrastructure

A full-featured RDS cloud database service needs infrastructure support: monitoring (metrics/log collection, alerting, visualization), NTP, DNS, and other foundational services.

Define a special group infra to deploy the INFRA module:

all:  # Simply changed group name from nodes -> infra and added infra_seq
  children: { infra: { hosts: { 10.10.10.10: { infra_seq: 1 } } } }
  vars:
    admin_ip: 10.10.10.10
    region: default
    node_repo_modules: node,pgsql,infra

all:  # Simply changed group name from nodes -> infra and added infra_seq
  children: { infra: { hosts: { 10.10.10.10: { infra_seq: 1 } } } }
  vars:
    admin_ip: 10.10.10.10
    region: china
    node_repo_modules: node,pgsql,infra

We also assigned an identity parameter: infra_seq to distinguish nodes in multi-node HA INFRA deployments.

Run infra.yml to install INFRA **](/docs/infra/) and [**NODE modules on 10.10.10.10:

./infra.yml   # Install INFRA module on infra group (includes NODE module)

demo/infra.cast — /demo/infra.cast

NODE module is implicitly defined as long as an IP exists. NODE is idempotent—re-running has no side effects.

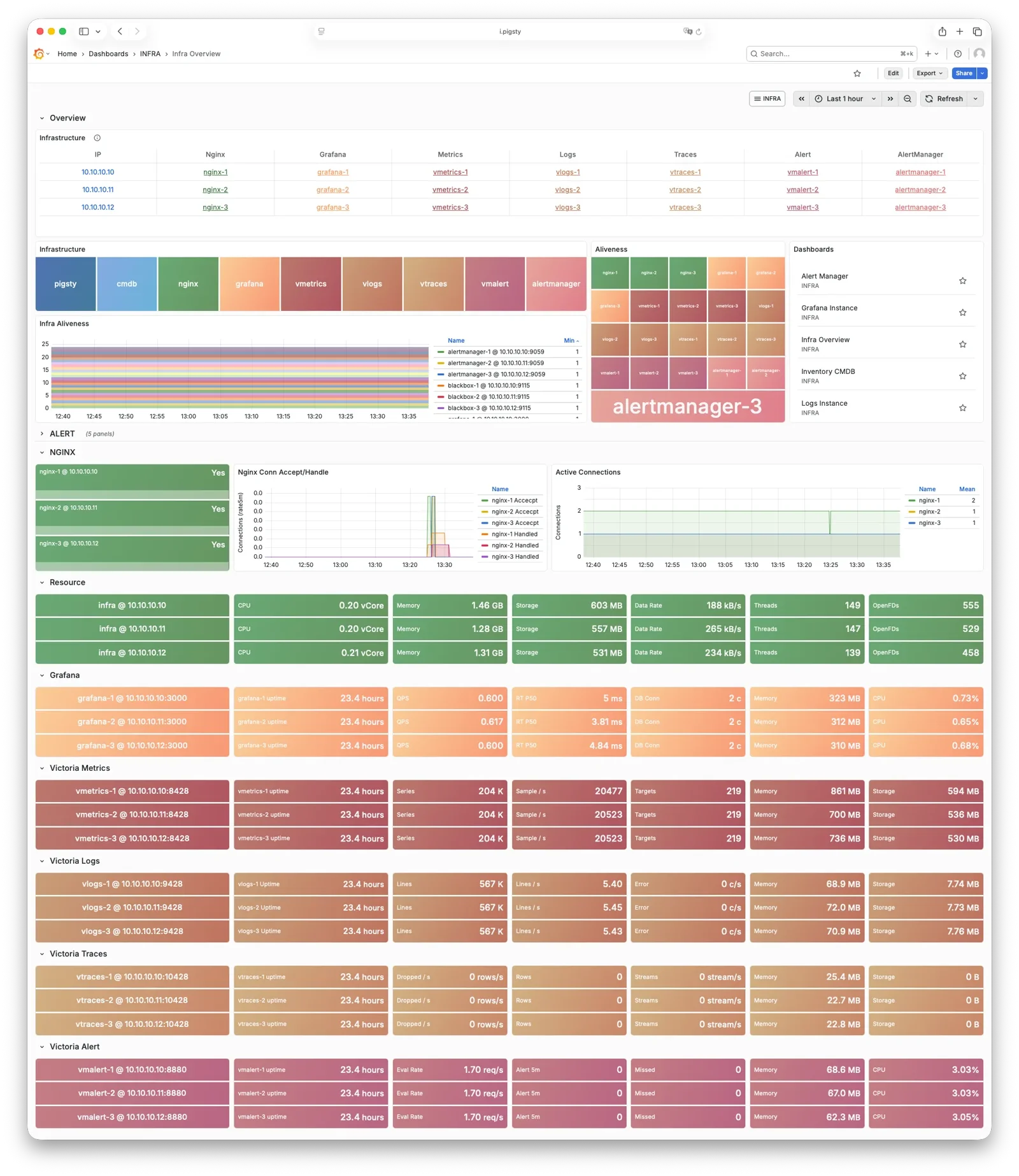

After completion, you’ll have complete observability infrastructure and node monitoring, but PostgreSQL database service is not yet deployed.

If your goal is just to set up this monitoring system (Grafana + Victoria), you’re done! The infra template is designed for this. Everything in Pigsty is modular: you can deploy only monitoring infra without databases; or vice versa—run HA PostgreSQL clusters without infra—Slim Install.

Deploy Database Cluster

To provide PostgreSQL service, install the PGSQL` module and its dependency ETCD—just two lines of config:

all:
  children:
    infra:   { hosts: { 10.10.10.10: { infra_seq: 1 } } }
    etcd:    { hosts: { 10.10.10.10: { etcd_seq:  1 } } } # Add etcd cluster
    pg-meta: { hosts: { 10.10.10.10: { pg_seq: 1, pg_role: primary } }, vars: { pg_cluster: pg-meta } } # Add pg cluster
  vars: { admin_ip: 10.10.10.10, region: default, node_repo_modules: node,pgsql,infra }

all:
  children:
    infra:   { hosts: { 10.10.10.10: { infra_seq: 1 } } }
    etcd:    { hosts: { 10.10.10.10: { etcd_seq:  1 } } } # Add etcd cluster
    pg-meta: { hosts: { 10.10.10.10: { pg_seq: 1, pg_role: primary } }, vars: { pg_cluster: pg-meta } } # Add pg cluster
  vars: { admin_ip: 10.10.10.10, region: china, node_repo_modules: node,pgsql,infra }

We added two new groups: etcd and pg-meta, defining a single-node etcd cluster and a single-node PostgreSQL cluster.

Use ./deploy.yml to converge the defined modules in the core path again, or deploy incrementally:

./etcd.yml  -l etcd      # Install ETCD module on etcd group
./pgsql.yml -l pg-meta   # Install PGSQL module on pg-meta group

PGSQL depends on ETCD for HA consensus, so install ETCD first. After completion, you have a working PostgreSQL service!

We used node.yml, infra.yml, etcd.yml, and pgsql.yml to deploy all four core modules on a single machine.

Define Databases and Users

In Pigsty, you can customize PostgreSQL cluster internals like databases and users through the inventory:

all:
  children:
    # Other groups and variables hidden for brevity
    pg-meta:
      hosts: { 10.10.10.10: { pg_seq: 1, pg_role: primary } }
      vars:
        pg_cluster: pg-meta
        pg_users:       # Define database users
          - { name: dbuser_meta ,password: DBUser.Meta ,pgbouncer: true ,roles: [dbrole_admin] ,comment: admin user  }
        pg_databases:   # Define business databases
          - { name: meta ,baseline: cmdb.sql ,comment: pigsty meta database ,schemas: [pigsty] ,extensions: [vector] }

• pg_users: Defines a new user dbuser_meta with password DBUser.Meta
• pg_databases: Defines a new database meta with Pigsty CMDB schema (optional) and vector extension

Pigsty offers rich customization parameters covering all aspects of databases and users. If you define these parameters upfront, they’re automatically created during ./pgsql.yml execution. For existing clusters, you can incrementally create or modify users and databases:

bin/pgsql-user pg-meta dbuser_meta      # Ensure user dbuser_meta exists in pg-meta
bin/pgsql-db   pg-meta meta             # Ensure database meta exists in pg-meta

Configure PG Version and Extensions

You can install different major versions of PostgreSQL, and up to 575 extensions. Let’s remove the current default PG 18 and install PG 16:

./pgsql-rm.yml -l pg-meta --check # Preflight old pg-meta removal; execute only after backup and target confirmation

We can customize parameters to install and enable common extensions by default: timescaledb, postgis, and pgvector:

• pg_extensions: Install timescaledb, postgis, pgvector extensions.
• pg_libs: Configure loading timescaledb, pg_stat_statements, auto_explain dynamic libraries.
• pg_databases: Create and enable vector, postgis, timescaledb extensions for the meta database.

all:
  children:
    infra:   { hosts: { 10.10.10.10: { infra_seq: 1 } } }
    etcd:    { hosts: { 10.10.10.10: { etcd_seq:  1 } } } # Add etcd cluster
    pg-meta:
      hosts: { 10.10.10.10: { pg_seq: 1, pg_role: primary } }
      vars:
        pg_cluster: pg-meta
        pg_version: 16   # Specify PG version as 16
        pg_extensions: [ timescaledb, postgis, pgvector ]      # Install these extensions
        pg_libs: 'timescaledb,pg_stat_statements,auto_explain'  # Preload these extension libraries
        pg_databases: { { name: meta ,baseline: cmdb.sql ,comment: pigsty meta database ,schemas: [pigsty] ,extensions: [vector, postgis, timescaledb ] } }
        pg_users: { { name: dbuser_meta ,password: DBUser.Meta ,pgbouncer: true ,roles: [dbrole_admin] ,comment: admin user } }

  vars:
    admin_ip: 10.10.10.10
    region: default
    node_repo_modules: node,pgsql,infra

./pgsql.yml -l pg-meta   # Install PG16 and extensions, recreate pg-meta cluster

Add More Nodes

Add more nodes to the deployment, bring them under Pigsty management, deploy monitoring, configure repos, install software…

# Add entire cluster at once, or add nodes individually
bin/node-add pg-test

bin/node-add 10.10.10.11
bin/node-add 10.10.10.12
bin/node-add 10.10.10.13

demo/node.cast — /demo/node.cast

Deploy HA PostgreSQL Cluster

Now deploy a new database cluster pg-test on the three newly added nodes, using a three-node HA architecture:

all:
  children:
    infra:   { hosts: { 10.10.10.10: { infra_seq: 1 } } }
    etcd:    { hosts: { 10.10.10.10: { etcd_seq: 1 } } }, vars: { etcd_cluster: etcd } }
    pg-meta: { hosts: { 10.10.10.10: { pg_seq: 1, pg_role: primary } }, vars: { pg_cluster: pg-meta } }
    pg-test:
      hosts:
        10.10.10.11: { pg_seq: 1, pg_role: primary }
        10.10.10.12: { pg_seq: 2, pg_role: replica  }
        10.10.10.13: { pg_seq: 3, pg_role: replica  }
      vars: { pg_cluster: pg-test }

demo/pgsql.cast — /demo/pgsql.cast

Deploy Redis Cluster

Pigsty provides optional Redis support as a caching service in front of PostgreSQL:

bin/redis-add redis-ms
bin/redis-add redis-meta
bin/redis-add redis-test

Redis HA requires cluster mode or sentinel mode. See Redis Configuration.

Deploy Silo Object Storage

Pigsty’s MINIO module currently deploys Silo S3-compatible object storage, which can serve as a PostgreSQL backup repository. The module, inventory group, and playbooks retain the compatible minio name.

./minio.yml -l minio

Serious production Silo deployments typically require at least 4 nodes with 4 disks each (4N/16D).

Deploy Docker Module

If you want to use containers to run tools for managing PG or software using PostgreSQL, install the DOCKER module:

./docker.yml -l infra

Use pre-made application templates to launch common software tools with one click, such as the GUI tool for PG management: Pgadmin:

./app.yml    -l infra -e app=pgadmin

You can even self-host enterprise-grade Supabase with Pigsty, using external HA PostgreSQL clusters as the foundation and running stateless components in containers.

1.6 - Run Playbooks with Ansible

Pigsty uses Ansible to manage clusters, a very popular large-scale/batch/automation ops tool in the SRE community.

Ansible can use declarative approach for server configuration management. All module deployments are implemented through a series of idempotent Ansible playbooks.

For example, in single-node deployment, you’ll use the deploy.yml playbook. Pigsty has more built-in playbooks, you can choose to use as needed.

Understanding Ansible basics helps with better use of Pigsty, but this is not required, especially for single-node deployment.

Deploy Playbook

Pigsty provides a “one-stop” deploy playbook deploy.yml for the core path: CA/software repository, NODE, INFRA, ETCD, PGSQL, and MINIO when enabled in the inventory. Optional modules such as Redis, Kafka, and native MySQL require their own module playbooks even when defined in the inventory.

This is the simplest deployment method. You can also follow instructions in Customization Guide to incrementally complete deployment of all modules and nodes step by step.

Install Ansible

When using the Pigsty installation script or the bootstrap phase of offline installation, Pigsty will automatically install ansible and its dependencies for you.

If you want to manually install Ansible, refer to the following instructions. The minimum supported Ansible version is 2.9.

sudo apt install -y ansible python3-jmespath

sudo dnf install -y ansible python3.12-jmespath python3-cryptography  # EL 8
sudo dnf install -y ansible python3-jmespath                           # EL 9
sudo dnf install -y ansible                                            # EL 10

brew install ansible
pip3 install jmespath

Ansible is also available on macOS. You can use Homebrew to install Ansible on Mac, and use it as an admin node to manage remote cloud servers. This is convenient for single-node Pigsty deployment on cloud VPS, but not recommended in prod envs.

Execute Playbook

Ansible playbooks are executable YAML files containing a series of task definitions to execute. Running playbooks requires the ansible-playbook executable in your environment variable PATH. Running ./node.yml playbook is essentially executing the ansible-playbook node.yml command.

You can use some parameters to fine-tune playbook execution. The following 4 parameters are essential for effective Ansible use:

./node.yml                         # Run node playbook on all hosts
./pgsql.yml -l pg-test             # Run pgsql playbook on pg-test cluster
./infra.yml -t repo_build          # Run infra.yml subtask repo_build
./pgsql-rm.yml -l pg-test -e pg_rm_pkg=false --check # Preflight removal while keeping packages
./infra.yml -i conf/mynginx.yml    # Use another location's config file

Limit Hosts

Playbook execution targets can be limited with -l|--limit <selector>. This is convenient when running playbooks on specific hosts/nodes or groups/clusters. Here are some host limit examples:

./pgsql.yml                              # Run on all hosts (dangerous!)
./pgsql.yml -l pg-test                   # Run on pg-test cluster
./pgsql.yml -l 10.10.10.10               # Run on single host 10.10.10.10
./pgsql.yml -l pg-*                      # Run on hosts/groups matching glob `pg-*`
./pgsql.yml -l '10.10.10.11,&pg-test'    # Run on 10.10.10.11 in pg-test group
./pgsql-rm.yml -l 'pg-test,!10.10.10.11' --check # Preflight removal; verify target and backups before execution

See all details in Ansible documentation: Patterns: targeting hosts and groups

Limit Tasks

Execution tasks can be controlled with -t|--tags <tags>. If specified, only tasks with the given tags will execute instead of the entire playbook.

./infra.yml -t repo          # Create repo
./node.yml  -t node_pkg      # Install node packages
./pgsql.yml -t pg_install    # Install PG packages and extensions
./etcd.yml  -t etcd_config   # Render ETCD configuration again
./minio.yml -t minio_alias   # Write the mcli client alias

To run multiple tasks, specify multiple tags separated by commas -t tag1,tag2:

./node.yml  -t node_repo,node_pkg   # Add repos, then install packages
./pgsql.yml -t pg_hba,pg_reload     # Configure, then reload pg hba rules

Extra Vars

You can override config parameters at runtime using CLI arguments, which have highest priority.

Extra command-line parameters are passed via -e|--extra-vars KEY=VALUE, usable multiple times:

# Create admin using another admin user
./node.yml -e ansible_user=admin -k -K -t node_admin

# Initialize a specific Redis instance: 10.10.10.11:6379
./redis.yml -l 10.10.10.10 -e redis_port=6379 -t redis

# Remove PostgreSQL but keep packages and data
./pgsql-rm.yml -l pg-test -e pg_rm_pkg=false -e pg_rm_data=false --check

For complex parameters, use JSON strings to pass multiple complex parameters at once:

# Add repo and install packages
./node.yml -t node_install -e '{"node_repo_modules":"infra","node_packages":["duckdb"]}'

Specify Inventory

The default config file is pigsty.yml in the Pigsty home directory.

You can use -i <path> to specify a different inventory file path.

./pgsql.yml -i conf/rich.yml            # Initialize single node with all extensions per rich config
./pgsql.yml -i conf/ha/full.yml         # Initialize 4-node cluster per full config
./pgsql.yml -i conf/app/supa.yml        # Initialize 1-node Supabase deployment per supa.yml

Convenience Scripts

Pigsty provides a series of convenience scripts to simplify common operations. These scripts are in the bin/ directory:

bin/node-add   <cls>            # Add nodes to Pigsty management: ./node.yml -l <cls>
bin/node-rm    <cls>            # Remove nodes from Pigsty: ./node-rm.yml -l <cls>
bin/pgsql-add  <cls>            # Initialize PG cluster: ./pgsql.yml -l <cls>
bin/pgsql-rm   <cls>            # Remove PG cluster: ./pgsql-rm.yml -l <cls>
bin/pgsql-user <cls> <username> # Add business user: ./pgsql-user.yml -l <cls> -e username=<user>
bin/pgsql-db   <cls> <dbname>   # Add business database: ./pgsql-db.yml -l <cls> -e dbname=<db>
bin/redis-add  <cls>            # Initialize Redis cluster: ./redis.yml -l <cls>
bin/redis-rm   <cls>            # Remove Redis cluster: ./redis-rm.yml -l <cls>

These scripts are simple wrappers around Ansible playbooks, making common operations more convenient.

Playbook List

Below are the built-in playbooks in Pigsty. You can also easily add your own playbooks, or customize and modify playbook implementation logic as needed.

1.7 - Offline Installation

Pigsty installs from Internet upstream by default, but some envs are isolated from the Internet. To address this, Pigsty supports offline installation using offline packages. Think of them as Linux-native Docker images.

Overview

Offline packages bundle all required RPM/DEB packages and dependencies; they are snapshots of the local APT/YUM repo after a normal installation.

In serious prod deployments, we strongly recommend using offline packages. They ensure all future nodes have consistent software versions with the existing env, and avoid online installation failures caused by upstream changes (quite common!), guaranteeing you can run it independently forever.

Offline Packages

The following table records the historical v4.4.0 offline artifacts and the OS minor versions used to build them; these are not the currently recommended operating systems.

If your OS exactly matches one of these historical artifact baselines, you can use the corresponding v4.4.0 offline package. The v4.4.0 Community Edition publishes six dual-architecture artifacts for Debian 13, EL 10, and Ubuntu 24.04 on GitHub. Artifact names and checksums for Debian 12, EL 9, Ubuntu 22.04, and Ubuntu 26.04 remain listed here; those offline packages are available with the Professional Edition.

Download Community Edition artifacts from the GitHub release page. The MD5 checksums for all v4.4.0 offline packages are:

7de8b932412f1863fd9c033a7be355d7  pigsty-pkg-v4.4.0.d12.aarch64.tgz
2e5006a8d35eb1c087dc0ed11cf14d14  pigsty-pkg-v4.4.0.d12.x86_64.tgz
955308c00d3890f6e82a6a83bc624760  pigsty-pkg-v4.4.0.d13.aarch64.tgz
350f31c66de0aafff3bd91c2c9d740a0  pigsty-pkg-v4.4.0.d13.x86_64.tgz
0b4817a8edbab0bdf37ecee730fb0412  pigsty-pkg-v4.4.0.el10.aarch64.tgz
4584a61e4456749e68d86e4817cfe526  pigsty-pkg-v4.4.0.el10.x86_64.tgz
21621daf510a532829c36464d48f9198  pigsty-pkg-v4.4.0.el9.aarch64.tgz
504afd5030e2738a25e1b4c570d0e654  pigsty-pkg-v4.4.0.el9.x86_64.tgz
461c999424dee587ca33fe1a63df40d7  pigsty-pkg-v4.4.0.u22.aarch64.tgz
20ccc5ab8f9f4648b05bcd304f9fb5fc  pigsty-pkg-v4.4.0.u22.x86_64.tgz
d092c48ee55116ed5e2c99a3d909ccdd  pigsty-pkg-v4.4.0.u24.aarch64.tgz
24fa5399d8421305961fcaf91325b382  pigsty-pkg-v4.4.0.u24.x86_64.tgz
36f69b699d8b3041d35384970e157631  pigsty-pkg-v4.4.0.u26.aarch64.tgz
330047d117b20f04317dce506edd5d9a  pigsty-pkg-v4.4.0.u26.x86_64.tgz

Using Offline Packages

Offline installation steps:

1. Download Pigsty offline package, place it at /tmp/pkg.tgz
2. Download Pigsty source package, extract and enter directory (assume extracted to home: cd ~/pigsty)
3. ./bootstrap, it will extract the package and configure using local repo (and install ansible from it offline)
4. ./configure -g -c rich, you can directly use the rich template configured for offline installation, or configure yourself
5. Run ./deploy.yml as usual to install the core path from the local repository; other optional modules still require their own playbooks

demo/install-offline.cast — /demo/install-offline.cast

If you want to use the already extracted and configured offline package in your own config, modify and ensure these settings:

• repo_enabled: Set to true, will build local software repo (explicitly disabled in most templates)
• node_repo_modules: Set to local, then all nodes in the env will install from the local software repo
  • In most templates, this is explicitly set to: node,infra,pgsql, i.e., install directly from these upstream repos.
  • Setting it to local will use the local software repo to install all packages, fastest, no interference from other repos.
  • If you want to use both local and upstream repos, you can add other repo module names too, e.g., local,node,infra,pgsql

The first parameter, if enabled, Pigsty will create a local software repo. The second parameter, if contains local, then all nodes in the env will use this local software repo. If it only contains local, then it becomes the sole repo for all nodes. If you still want to install other packages from other upstream repos, you can add other repo module names too, e.g., local,node,infra,pgsql.

Hybrid Installation Mode

If your environment has Internet access, there’s a hybrid approach that combines the advantages of offline and online installation. You can use the offline package as a base, and supplement missing packages online.

Using the historical v4.4.0 artifacts as an example, suppose you run RockyLinux 9.6 while the package was built for RockyLinux 9.7. You can use the el9 offline package (though made for 9.7), then execute make repo-build before formal installation to re-download missing packages for 9.6. Pigsty will download the required increments from upstream repos.

Making Offline Packages

If your OS isn’t in the default list, you can make your own offline package with the built-in cache.yml playbook:

1. Find a node running the exact same OS version with Internet access
2. Use the rich template for an online installation (./configure -c rich), and confirm that the target INFRA node has generated its local repository at /www/pigsty; if not, run ./infra.yml -t repo against that node first
3. Run cd ~/pigsty; ./cache.yml -l <infra-host> to select one INFRA node that already has a local repository, build the package there, and fetch it
4. By default, the artifact is ~/pigsty/dist/${version}/pigsty-pkg-${version}.${os}.${arch}.tgz; copy it to the offline environment (ftp, scp, USB, etc.), then unpack it with bootstrap

Current cache.yml defaults can be overridden with extra variables:

We offer paid services providing tested, pre-made offline packages for specific Linux major.minor versions (¥200).

Bootstrap

Pigsty relies on ansible to execute playbooks; this script is responsible for ensuring ansible is correctly installed in various ways.

./bootstrap       # Ensure ansible is correctly installed (if offline package exists, use offline installation and extract first)

Usually, you need to run this script in two cases:

• You didn’t install Pigsty via the installation script, but by downloading or git clone of the source package, so ansible isn’t installed.
• You’re preparing to install Pigsty via offline packages and need to use this script to install ansible from the offline package.

The bootstrap script will automatically detect if the offline package exists (-p to specify, default is /tmp/pkg.tgz). If it exists, it will extract and use it, then install ansible from it. If the offline package doesn’t exist, it will try to install ansible from the Internet. If that still fails, you’re on your own!

./bootstrap -k # or --keep

1.8 - Slim Installation

If you only want HA PostgreSQL database cluster itself without monitoring, infra, etc., consider Slim Installation.

Slim installation has no INFRA module, no monitoring, no local repo—just ETCD and PGSQL and partial NODE functionality.

Overview

To use slim installation, you need to:

1. Use the slim.yml slim install config template (configure -c slim)
2. Run the slim.yml playbook instead of the default deploy.yml

curl https://repo.pigsty.io/get | bash
./configure -g -c slim
./slim.yml

demo/install-slim.cast — /demo/install-slim.cast

Description

Slim installation only installs/configures these components:

You can disable all optional components via configuration, keeping only the required patroni and etcd.

Because there’s no INFRA module’s Nginx providing local repo service, offline installation only works in single-node mode.

Configuration

Slim installation config file example: conf/slim.yml:

---
#==============================================================#
# File      :   slim.yml
# Desc      :   Pigsty slim installation config template
# Ctime     :   2020-05-22
# Mtime     :   2025-12-28
# Docs      :   https://pigsty.io/docs/conf/slim
# License   :   Apache-2.0 @ https://pigsty.io/docs/about/license/
# Copyright :   2018-2026  Ruohang Feng / Vonng ([email protected])
#==============================================================#

# This is the config template for slim / minimal installation
# No monitoring & infra will be installed, just raw postgresql
#
# Usage:
#   curl https://repo.pigsty.io/get | bash
#   ./configure -c slim
#   ./slim.yml

all:
  children:

    etcd: # dcs service for postgres/patroni ha consensus
      hosts: # 1 node for testing, 3 or 5 for production
        10.10.10.10: { etcd_seq: 1 }  # etcd_seq required
        #10.10.10.11: { etcd_seq: 2 }  # assign from 1 ~ n
        #10.10.10.12: { etcd_seq: 3 }  # three-member cluster keeps an odd voter count
      vars: # cluster level parameter override roles/etcd
        etcd_cluster: etcd  # mark etcd cluster name etcd

    #----------------------------------------------#
    # PostgreSQL Cluster
    #----------------------------------------------#
    pg-meta:
      hosts:
        10.10.10.10: { pg_seq: 1, pg_role: primary }
        #10.10.10.11: { pg_seq: 2, pg_role: replica } # you can add more!
        #10.10.10.12: { pg_seq: 3, pg_role: replica, pg_offline_query: true }
      vars:
        pg_cluster: pg-meta
        pg_users:
          - { name: dbuser_meta ,password: DBUser.Meta   ,pgbouncer: true ,roles: [dbrole_admin   ] ,comment: pigsty admin user }
          - { name: dbuser_view ,password: DBUser.Viewer ,pgbouncer: true ,roles: [dbrole_readonly] ,comment: read-only viewer  }
        pg_databases:
          - { name: meta, baseline: cmdb.sql ,comment: pigsty meta database ,schemas: [pigsty] ,extensions: [ vector ]}
        pg_hba_rules:   # https://pigsty.io/docs/pgsql/config/hba
          - { user: all ,db: all ,addr: intra ,auth: pwd ,title: 'everyone intranet access with password' ,order: 800 }
        pg_crontab:     # https://pigsty.io/docs/pgsql/admin/crontab
          - '00 01 * * * /pg/bin/pg-backup full'

  vars:
    version: v4.5.0                   # pigsty version string
    admin_ip: 10.10.10.10             # admin node ip address
    region: default                   # upstream mirror region: default,china,europe
    nodename_overwrite: false           # do not overwrite node hostname on single node mode
    node_repo_modules: node,infra,pgsql # add these repos directly to the singleton node
    node_tune: oltp                     # node tuning specs: oltp,olap,tiny,crit
    pg_conf: oltp.yml                   # pgsql tuning specs: {oltp,olap,tiny,crit}.yml
    pg_version: 18                      # Default PostgreSQL Major Version is 18
    pg_packages: [ pgsql-main, pgsql-common ]   # pg kernel and common utils
    #pg_extensions: [ pg18-time ,pg18-gis ,pg18-rag ,pg18-fts ,pg18-olap ,pg18-feat ,pg18-lang ,pg18-type ,pg18-util ,pg18-func ,pg18-admin ,pg18-stat ,pg18-sec ,pg18-fdw ,pg18-sim ,pg18-etl]

    #----------------------------------------------#
    # PASSWORD : https://pigsty.io/docs/setup/security/
    #----------------------------------------------#
    grafana_admin_password: pigsty
    grafana_view_password: DBUser.Viewer
    pg_admin_password: DBUser.DBA
    pg_monitor_password: DBUser.Monitor
    pg_replication_password: DBUser.Replicator
    patroni_password: Patroni.API
    haproxy_admin_password: pigsty
    minio_secret_key: S3User.MinIO
    etcd_root_password: Etcd.Root
...

Deployment

Slim installation uses the slim.yml playbook instead of deploy.yml:

./slim.yml

HA Cluster

Slim installation can also deploy HA clusters—just add more nodes to the etcd and pg-meta groups. A three-node deployment example:

all:
  children:
    etcd:
      hosts:
        10.10.10.10: { etcd_seq: 1 }
        10.10.10.11: { etcd_seq: 2 }  # <-- New
        10.10.10.12: { etcd_seq: 3 }  # <-- New

    pg-meta:
      hosts:
        10.10.10.10: { pg_seq: 1, pg_role: primary }
        10.10.10.11: { pg_seq: 2, pg_role: replica } # <-- New
        10.10.10.12: { pg_seq: 3, pg_role: replica } # <-- New
      vars:
        pg_cluster: pg-meta
        pg_users:
          - { name: dbuser_meta ,password: DBUser.Meta   ,pgbouncer: true ,roles: [dbrole_admin   ] ,comment: pigsty admin user }
          - { name: dbuser_view ,password: DBUser.Viewer ,pgbouncer: true ,roles: [dbrole_readonly] ,comment: read-only viewer  }
        pg_databases:
          - { name: meta, baseline: cmdb.sql ,comment: pigsty meta database ,schemas: [pigsty] ,extensions: [ vector ]}
        pg_crontab: [ '00 01 * * * /pg/bin/pg-backup full' ] # full backup daily at 1am
  vars:
    # omitted ……

1.9 - Security Recommendations

The default configuration targets local demonstrations and development or testing on a trusted intranet. If other hosts can reach the deployment, complete at least three checks: credentials, network boundaries, and critical files.

Production environments should also review the Security Model, Compliance, and Security Considerations.

Passwords

Pigsty default credentials are public in the source code and documentation and must not be used directly in production.

The configuration wizard can randomize built-in parameters and example credentials that it recognizes:

./configure -g

configure -g does not replace:

• the pgBackRest cipher_pass;
• Silo users and selected example passwords in ha/safe;
• database, object-storage, or application credentials added by the user.

After generation, inspect pigsty.yml and replace every uncovered credential. The wizard prints generated passwords to the terminal, so protect terminal history and automation logs as sensitive data.

See the Default Credentials Checklist for the complete scope.

Firewall

node_firewall_mode defaults to zone. It trusts the intranet defined by node_firewall_intranet and restricts ports exposed to public networks.

Production deployments should normally remove 5432 from the demo configuration. If applications need direct database access, restrict source addresses in the cloud security group, host firewall, and HBA.

Also verify that the intranet definition matches the actual trust boundary. The default RFC 1918 ranges may be too broad; office networks, container networks, and other tenant networks should not become trusted automatically.

Files

The following files and directories contain highly sensitive information:

• pigsty.yml: system and application credentials, node definitions, and service configuration;
• files/pki/ca/ca.key: local CA private key;
• the administration user’s SSH private key, used to access managed nodes;
• files/pki/misc/*.key: client-certificate private keys;
• /pg/tmp/pg-user-*.sql: SQL containing plaintext passwords generated during user creation.

Restrict access to the admin node and configuration repository. Do not commit complete inventories or private keys to public repositories. Maintain controlled backups of the CA private key and required configuration.

Related Documentation

• Security and Compliance: security chapter entry point
• Authentication: HBA, passwords, and client certificates
• Encrypted Communication: CA, TLS, and server verification
• Production Security Considerations: complete launch checklist

2 - Deployment

Unlike Getting Started, production Pigsty deployments require more Architecture Planning and Preparation.

This chapter helps you understand the complete deployment process and provides best practices for production environments.

Before deploying to production, we recommend testing in Pigsty’s Sandbox to fully understand the workflow. Use Vagrant to create a local 4-node sandbox, or leverage OpenTofu to provision larger simulation environments in the cloud.

For production, you typically need at least three nodes for high availability. You should understand Pigsty’s core Concepts and common administration procedures, including Configuration, Ansible Playbooks, and Security Hardening for enterprise compliance.

2.1 - Install Pigsty for Production

This is the Pigsty production multi-node deployment guide. For single-node Demo/Dev setups, see Getting Started.

Summary

Prepare nodes with SSH access following your architecture plan, install a compatible Linux OS, then execute with an admin user having passwordless ssh and sudo:

curl -fsSL https://repo.pigsty.io/get | bash;         # International
curl -fsSL https://repo.pigsty.cc/get | bash;         # Backup Mirror

This runs the install script, downloading and extracting Pigsty source to your home directory with dependencies installed. Complete configuration and deployment to finish.

Before running deploy.yml for deployment, review and edit the configuration inventory: pigsty.yml.

cd ~/pigsty      # Enter Pigsty directory
./configure -g   # Generate config file (optional, skip if you know how to configure)
./deploy.yml     # Execute deployment playbook based on generated config

After installation, access the WebUI via IP/domain + ports 80/443, and PostgreSQL service via port 5432.

Full installation takes 3-10 minutes depending on specs/network. Offline installation significantly speeds this up; slim installation further accelerates when monitoring isn’t needed.

Video Example: 20-node Production Simulation (Ubuntu 24.04 x86_64)

demo/install-simu.cast — /demo/install-simu.cast

Prepare

Production Pigsty deployment involves preparation work. Here’s the complete checklist:

Install

Use the following to automatically install the Pigsty source package to ~/pigsty (recommended). Deployment dependencies (Ansible) are auto-installed.

curl -fsSL https://repo.pigsty.io/get | bash            # Install current default version
curl -fsSL https://repo.pigsty.io/get | bash -s v4.5.0  # Explicitly install the current public stable release

curl -fsSL https://repo.pigsty.cc/get | bash            # Install current default version
curl -fsSL https://repo.pigsty.cc/get | bash -s v4.5.0  # Explicitly install the current public stable release

If you prefer not to run remote scripts, manually download or clone the source. When using git, always checkout a specific version before use:

git clone https://github.com/pgsty/pigsty; cd pigsty;
git checkout v4.5.0;  # Always checkout a released tag when using git

For manual download/clone, additionally run bootstrap to manually install Ansible and other dependencies, or install them yourself:

./bootstrap           # Install ansible for subsequent deployment

Configure

In Pigsty, deployment details are defined by the configuration inventory—the pigsty.yml config file. Customize through declarative configuration.

Pigsty provides configure as an optional configuration wizard, generating a configuration inventory with good defaults based on your environment:

./configure -g                # Use wizard to generate config with random passwords

The generated config defaults to ~/pigsty/pigsty.yml. Review and customize before installation.

Many configuration templates are available for reference. You can skip the wizard and directly edit pigsty.yml:

./configure -c ha/full -g       # Use 4-node sandbox template
./configure -c ha/trio -g       # Use 3-node minimal HA template
./configure -c ha/dual -g -v 18 # Use 2-node semi-HA template with PG 18
./configure -c ha/simu -s       # Use 20-node production simulation, skip IP check, no random passwords

vagrant@meta:~/pigsty$ ./configure
configure pigsty v4.5.0 begin
[ OK ] region = china
[ OK ] kernel  = Linux
[ OK ] machine = x86_64
[ OK ] package = deb,apt
[ OK ] vendor  = ubuntu (Ubuntu)
[ OK ] version = 22 (22.04)
[ OK ] sudo = vagrant ok
[ OK ] ssh = [email protected] ok
[WARN] Multiple IP address candidates found:
    (1) 192.168.121.38	    inet 192.168.121.38/24 metric 100 brd 192.168.121.255 scope global dynamic eth0
    (2) 10.10.10.10	    inet 10.10.10.10/24 brd 10.10.10.255 scope global eth1
[ OK ] primary_ip = 10.10.10.10 (from demo)
[ OK ] admin = [email protected] ok
[ OK ] mode = meta (ubuntu22.04)
[ OK ] locale  = C.UTF-8
[ OK ] ansible = ready
[ OK ] pigsty configured
[WARN] don't forget to check it and change passwords!
proceed with ./deploy.yml

The wizard only replaces the current node’s IP (use -s to skip replacement). For multi-node deployments, replace other node IPs manually. Also customize the config as needed—modify default passwords, add nodes, etc.

Common configure parameters:

If your machine has multiple IPs, explicitly specify one with -i|--ip <ipaddr> or provide it interactively. The script replaces IP placeholder 10.10.10.10 with the current node’s primary IPv4. Use a static IP; never use public IPs.

Generated config is at ~/pigsty/pigsty.yml. Review and modify before installation.

Deploy

Pigsty’s deploy.yml playbook applies the configuration blueprint to all target nodes.

./deploy.yml     # Deploy core modules on all target nodes at once

......

TASK [pgsql : pgsql init done] *************************************************
ok: [10.10.10.11] => {
    "msg": "postgres://10.10.10.11/postgres | meta  | dbuser_meta dbuser_view "
}
......

TASK [pg_monitor : load grafana datasource meta] *******************************
changed: [10.10.10.11]

PLAY RECAP *********************************************************************
10.10.10.11                : ok=302  changed=232  unreachable=0    failed=0    skipped=65   rescued=0    ignored=1
localhost                  : ok=6    changed=3    unreachable=0    failed=0    skipped=1    rescued=0    ignored=0

Interface

Assuming the 4-node deployment template, your Pigsty environment should have a structure like:

The INFRA module provides a graphical management interface via browser, accessible through Nginx’s 80/443 ports.

The PGSQL module provides a PostgreSQL database server on port 5432, also accessible via Pgbouncer/HAProxy proxies.

For production multi-node HA PostgreSQL clusters, use service access for automatic traffic routing.

More

After installation, explore the WebUI and access PostgreSQL service via port 5432.

Deploy and monitor more clusters—add definitions to the configuration inventory and run:

bin/node-add   pg-test      # Add pg-test cluster's 3 nodes to Pigsty management
bin/pgsql-add  pg-test      # Initialize a 3-node pg-test HA PG cluster
bin/redis-add  redis-ms     # Initialize Redis cluster: redis-ms

Most modules require the NODE module first. See available modules:

PGSQL, INFRA, NODE, ETCD, MINIO, REDIS, DOCKER…

2.2 - Prepare Resources for Serious Deployment

Pigsty runs on nodes (physical machines or VMs). This document covers the planning and preparation required for deployment.

Node

Pigsty currently runs on Linux kernel with x86_64 / aarch64 architecture. A “node” refers to an SSH accessible resource that provides a bare Linux OS environment. It can be a physical machine, virtual machine, or a systemd-enabled container equipped with systemd, sudo, and sshd.

Deploying Pigsty requires at least 1 node. You can prepare more and deploy everything in one pass via playbooks, or add nodes later. The minimum spec requirement is 1C1G, but at least 1C2G is recommended. Higher is better—no upper limit. Parameters are auto-tuned based on available resources.

The number of nodes you need depends on your requirements. See Architecture Planning for details. Although a single-node deployment with external backup provides reasonable recovery guarantees, we recommend multiple nodes for production. A functioning HA setup requires at least 3 nodes; 2 nodes provide Semi-HA.

Disk

Pigsty uses /data as the default data directory. If you have a dedicated data disk, mount it there. Use /data1, /data2, /dataN for additional disk drives.

To use a different data directory, configure these parameters:

The native MySQL 8.4 pilot module does not currently expose a data-directory parameter and always uses /var/lib/mysql.

Filesystem

You can use any supported Linux filesystem for data disks. For production, we recommend xfs.

xfs is a Linux standard with excellent performance and CoW capabilities for instant large database cluster cloning. Multi-drive Silo deployments require xfs. ext4 is another viable option with a richer data recovery tool ecosystem, but lacks CoW. zfs provides RAID and snapshot features but with significant performance overhead and requires separate installation.

Choose among these three based on your needs. Avoid NFS for database services.

Pigsty assumes /data is owned by root:root with 755 permissions. Admins can assign ownership for first-level directories; each application runs with a dedicated user in its subdirectory. See FHS for the directory structure reference.

Network

Pigsty defaults to online installation mode, requiring outbound Internet access. Offline installation eliminates the Internet requirement.

Internally, Pigsty requires a static network. Assign a fixed IPv4 address to each node.

The IP address serves as the node’s unique identifier—the primary IP bound to the main network interface for internal communications.

For single-node deployment without a fixed IP, use the loopback address 127.0.0.1 as a workaround.

VIP

Pigsty supports optional L2 VIP for NODE clusters (keepalived) and PGSQL clusters (vip-manager).

To use L2 VIP, you must explicitly assign an L2 VIP address for each node/database cluster. This is straightforward on your own hardware but may be challenging in public cloud environments.

CA

Pigsty generates a self-signed CA infrastructure for each deployment, issuing all encryption certificates.

If you have an existing enterprise CA or self-signed CA, you can use it to issue the certificates Pigsty requires.

Domain

Pigsty uses a local static domain i.pigsty by default for WebUI access. This is optional—IP addresses work too.

For production, domain names are recommended to enable HTTPS and encrypted data transmission. Domains also allow multiple services on the same port, differentiated by domain name.

For Internet-facing deployments, use public DNS providers (Cloudflare, AWS Route53, etc.) to manage resolution. Point your domain to the Pigsty node’s public IP address. For LAN/office network deployments, use internal DNS servers with the node’s internal IP address.

For local-only access, add the following to /etc/hosts on machines accessing the Pigsty WebUI:

10.10.10.10 i.pigsty    # Replace with your domain and Pigsty node IP

Linux

Pigsty runs on Linux. It currently targets 16 platform combinations: eight distribution major versions across two architectures. See the Compatible OS List.

We recommend Rocky Linux 9.8 / 10.2, Debian 12.15 / 13.6, or Ubuntu 22.04.5 / 24.04.4 / 26.04.0 as default options.

On macOS and Windows, use VM software or Docker systemd images to run Pigsty.

We strongly recommend a fresh OS installation. If your server already runs Nginx, PostgreSQL, or similar services, consider deploying on new nodes.

Locale

We recommend setting en_US as the primary OS language, or at minimum ensuring this locale is available, so PostgreSQL logs are in English.

Some distributions (e.g., Debian) may not provide the en_US locale by default. Enable it with:

localedef -i en_US -f UTF-8 en_US.UTF-8
localectl set-locale LANG=en_US.UTF-8

For PostgreSQL, we strongly recommend using the built-in C.UTF-8 collation (PG 17+) as the default.

The configuration wizard automatically sets C.UTF-8 as the collation when PG version and OS support are detected.

Ansible

Pigsty uses Ansible to control all managed nodes from the admin node. See Installing Ansible for details.

Pigsty installs Ansible on Infra nodes by default, making them usable as admin nodes (or backup admin nodes). For single-node deployment, the installation node serves as both the admin node running Ansible and the INFRA node hosting infrastructure.

Pigsty

You can install the current default Pigsty source with:

curl -fsSL https://repo.pigsty.io/get | bash;

curl -fsSL https://repo.pigsty.cc/get | bash;

To install a specific version, use the -s <version> parameter:

curl -fsSL https://repo.pigsty.io/get | bash -s <version>  # Install a specific version (current stable: v4.5.0)

curl -fsSL https://repo.pigsty.cc/get | bash -s <version>  # Install a specific version (current stable: v4.5.0)

To install the latest beta version:

curl -fsSL https://repo.pigsty.io/beta | bash;

curl -fsSL https://repo.pigsty.cc/beta | bash;

For developers or the latest development version, clone the repository directly:

git clone https://github.com/pgsty/pigsty.git;
cd pigsty; git checkout <tag>  # Use a released version (current stable tag: v4.5.0)

If your environment lacks Internet access, download the source tarball from GitHub Releases or the Pigsty repository:

wget https://repo.pigsty.io/src/pigsty-v<version>.tgz
wget https://repo.pigsty.cc/src/pigsty-v<version>.tgz

2.3 - Planning Architecture and Nodes

Pigsty uses a modular architecture. You can combine modules like building blocks and express your intent through declarative configuration.

Common Patterns

Here are common deployment patterns for reference. Customize based on your requirements:
